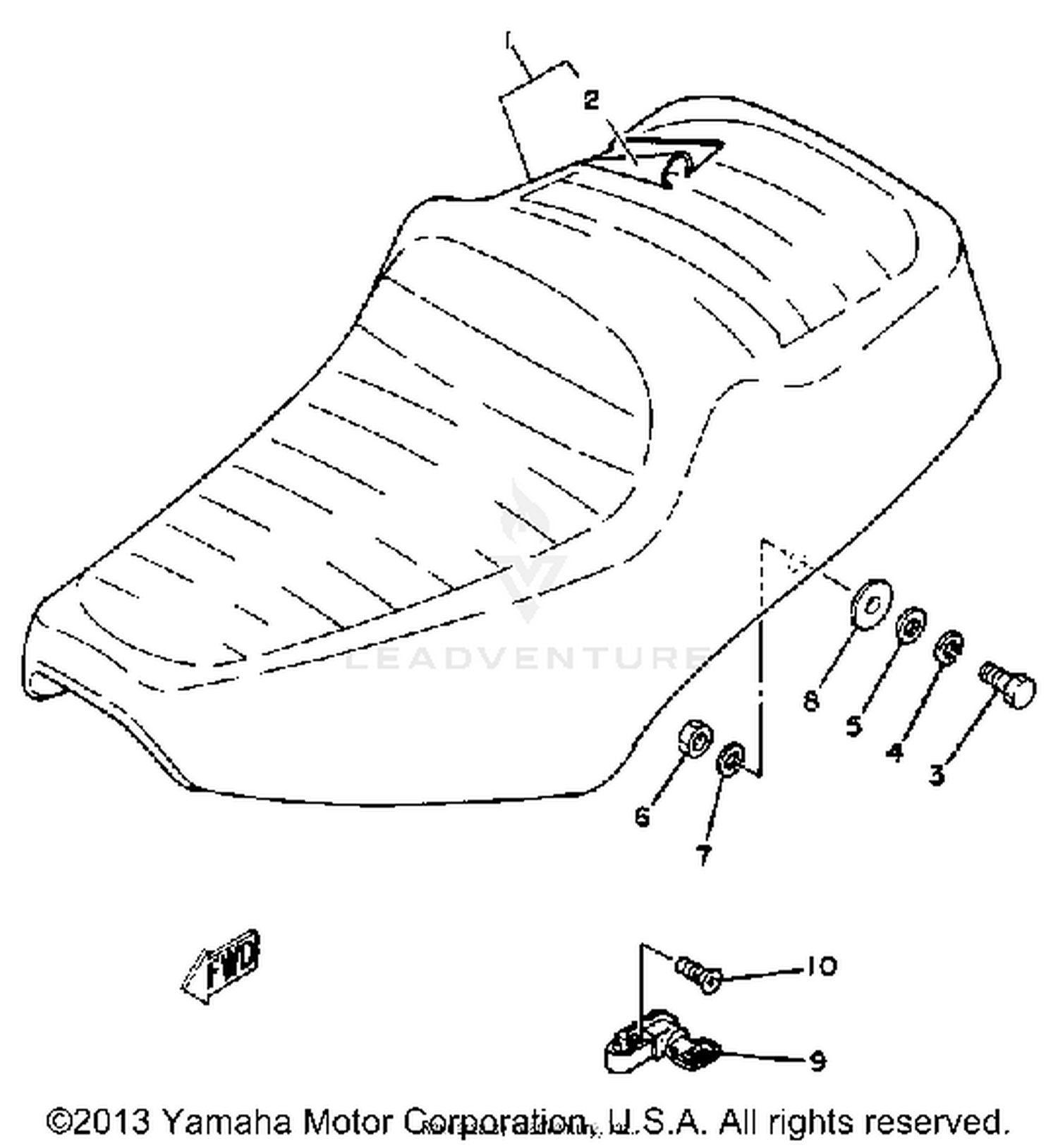

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
5H0-24730-00-00
|
$198.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
5H0-24731-00-00
|
$276.99 | ||
|
Unavailable |
|||
|
#3
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#8
COLLAR
90387-08564-00
|
$6.99 | ||
|
Unavailable |
|||
|
#9
HELMET HANGER ASSY
55E-21308-00-00
Superseded by 5H0-21308-01-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
