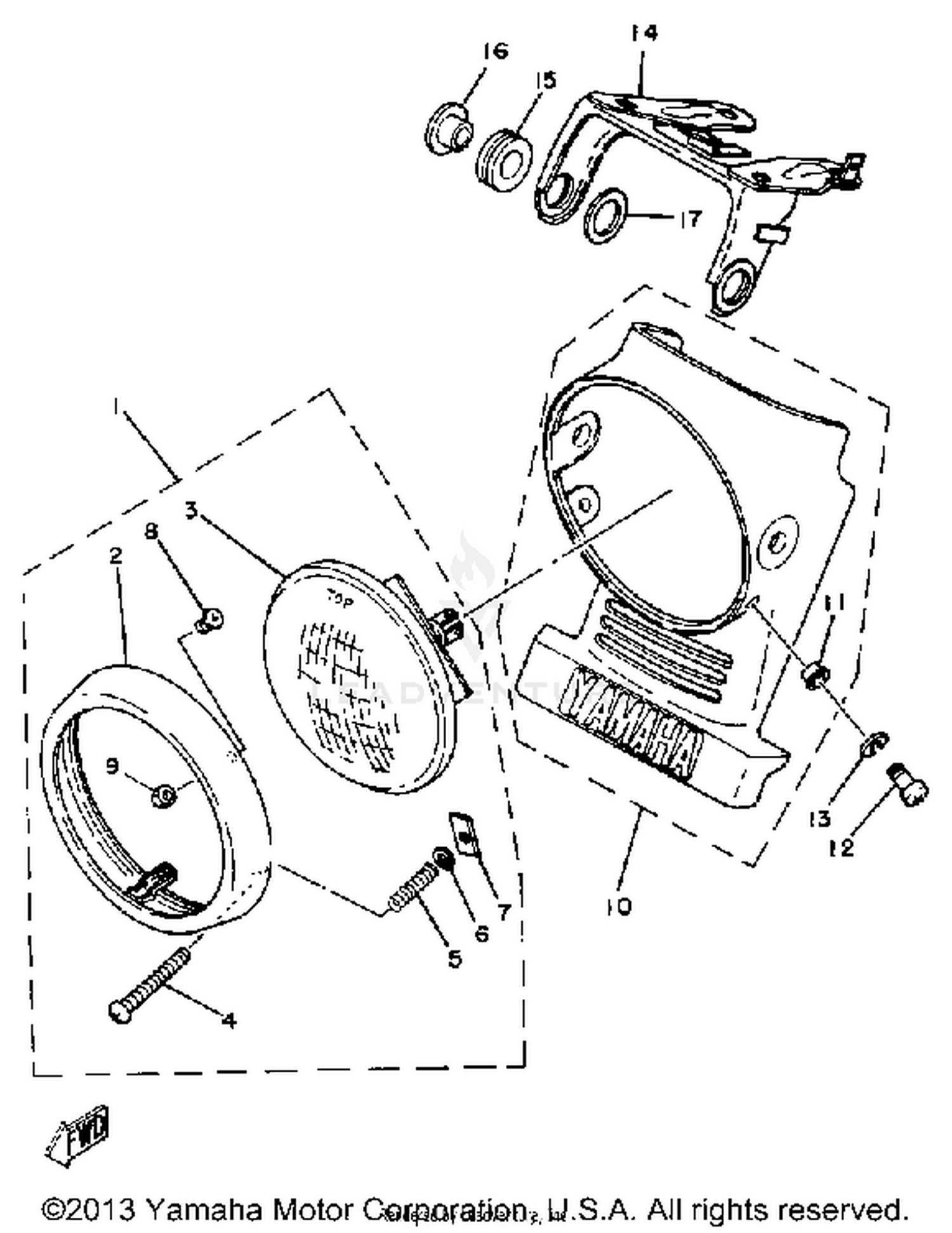

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSEMBLY
5H0-84310-60-00
|
$27.21 | ||
|
Unavailable |
|||
|
#2
RIM, HEADLIGHT
5H0-84315-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSEMBLY
5H0-84320-00-00
|
$25.28 | ||
|
Unavailable |
|||
|
#4
SCREW,RIM ADJUSTER
1NN-84131-10-00
Superseded by 4KG-84331-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, SCREW
21V-84335-00-00
Superseded by 3AA-84332-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#6
SPACER
1L9-84327-60-00
|
$3.35 | ||
|
Unavailable |
|||
|
#7
NUT, ADJUSTING
1L9-84334-60-00
Superseded by 5PX-84334-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
5H0-84326-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#10
BODY ASSEMBLY
5H0-84330-00-63
|
$128.99 | ||
|
Unavailable |
|||
|
#
BODY ASSEMBLY
5H0-84330-00-6J
|
$128.99 | ||
|
Unavailable |
|||
|
#11
SPACER
1L9-84327-60-00
|
$3.35 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, HEADLIGHT 1
5H0-84318-00-00
|
$64.53 | ||
|
Unavailable |
|||
|
#15
DAMPER, HEADLIGHT
5H0-84336-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#16
COLLAR, BODY FTNG
5H0-84338-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-12195-00
Superseded by 90201-121J0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
