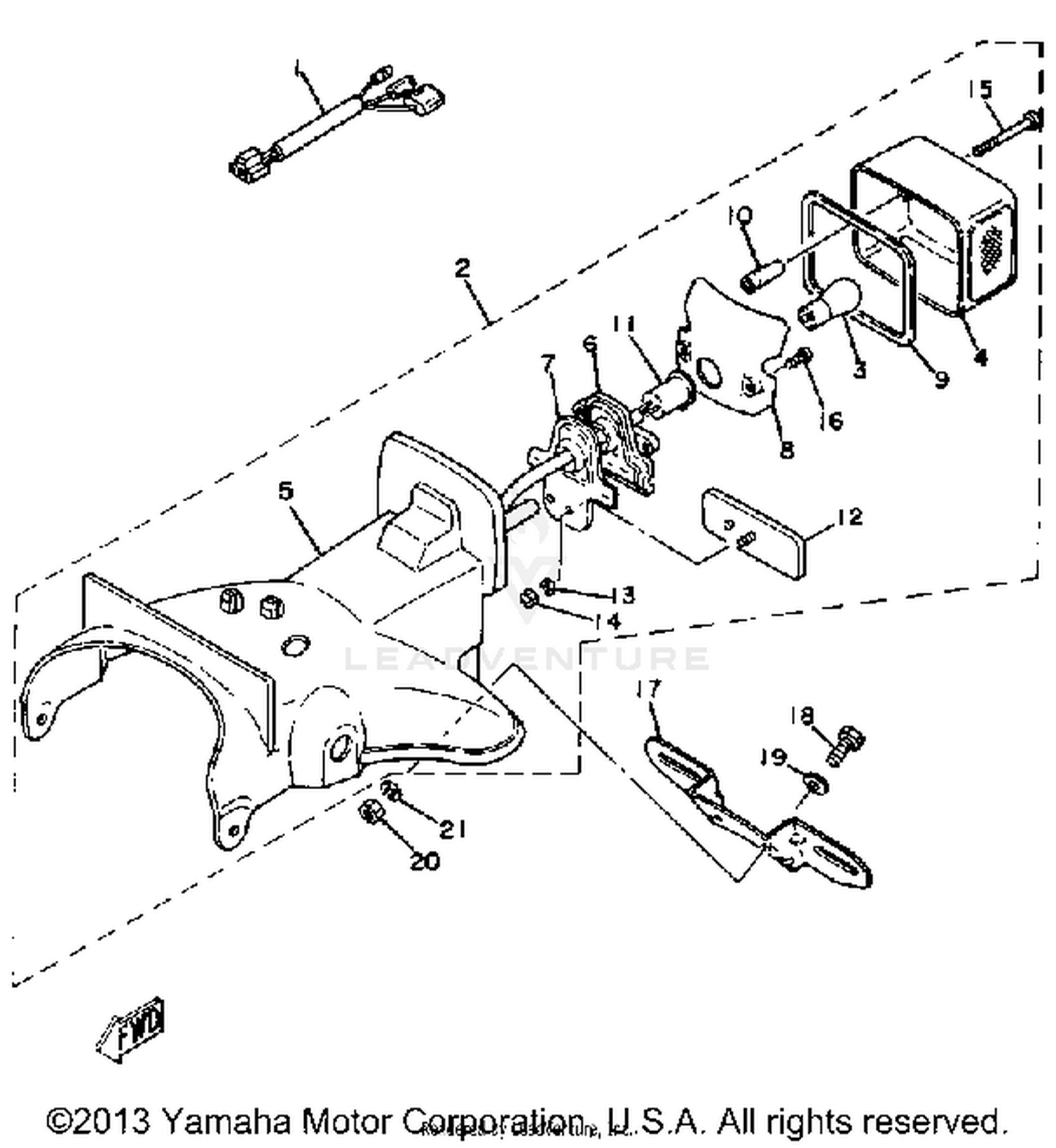

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CORD, HEADLIGHT
5H0-84359-01-00
|
$4.56 | ||
|
Unavailable |
|||
|
#2
TAILLIGHT ASSEMBLY
5H0-84700-60-63
|
$110.99 | ||
|
Unavailable |
|||
|
#
TAILLIGHT ASSEMBLY
5H0-84700-60-6J
|
$102.99 | ||
|
Unavailable |
|||
|
#3
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
1M1-84521-60-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, REAR
5H0-21611-00-33
|
$65.99 | ||
|
Unavailable |
|||
|
#6
SEAT, BASE
5H0-84712-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#7
HOLDER, BASE SEAT
5H0-84713-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#8
REFLECTER, TAIL LIGHT
3Y1-84531-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL
3Y1-84545-00-00
Superseded by 1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
5H0-84729-00-00
|
$0.99 | ||
|
Unavailable |
|||
|
#11
SOCKET CORD
5H0-84719-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#12
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, LENS FITTING
3Y1-84524-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING
97780-40116-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, LICENSE
5H0-84751-00-00
|
$13.58 | ||
|
Unavailable |
|||
|
#18
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
