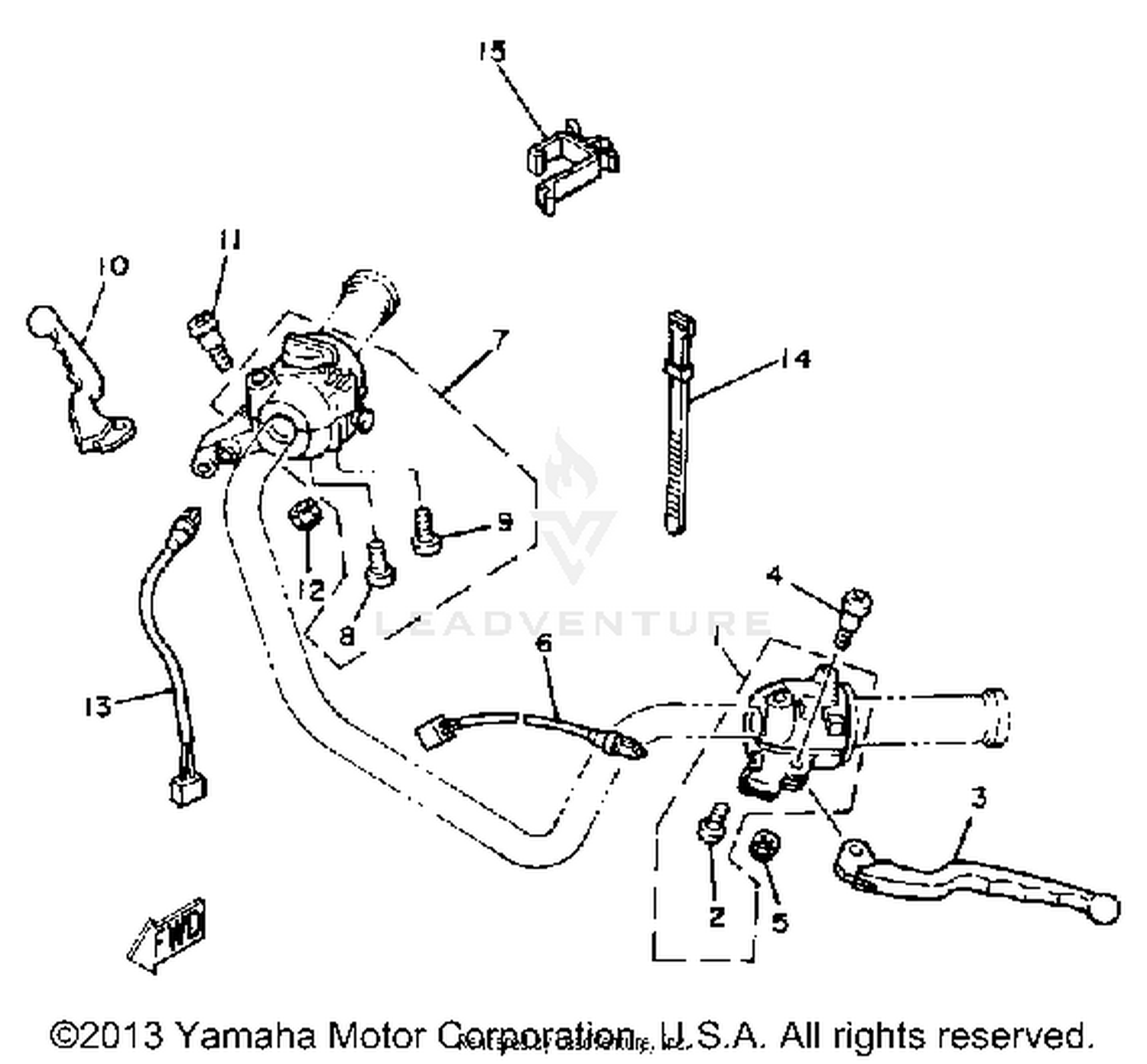

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER HOLDER ASY L
5H0-W8291-00-00
Superseded by 3MW-82910-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98501-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER L
4G3-83912-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, SPEC''L SHAPE
4G3-83915-00-00
Superseded by 90149-05120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, FLANGE
95701-05300-00
Superseded by 95707-05300-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH
3Y6-82917-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#7
LEVER HOLDER ASSEMBLY R
5H0-W8292-00-00
|
$95.86 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98501-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98501-05040-00
Superseded by 98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER R
4G3-83922-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, SPEC''L SHAPE
4G3-83915-00-00
Superseded by 90149-05120-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
NUT, FLANGE
95701-05300-00
Superseded by 95707-05300-00
|
$4.00 | ||
|
Unavailable |
|||
|
#13
SWITCH
5H0-83980-00-00
Superseded by 3Y6-82917-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#14
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-16025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
