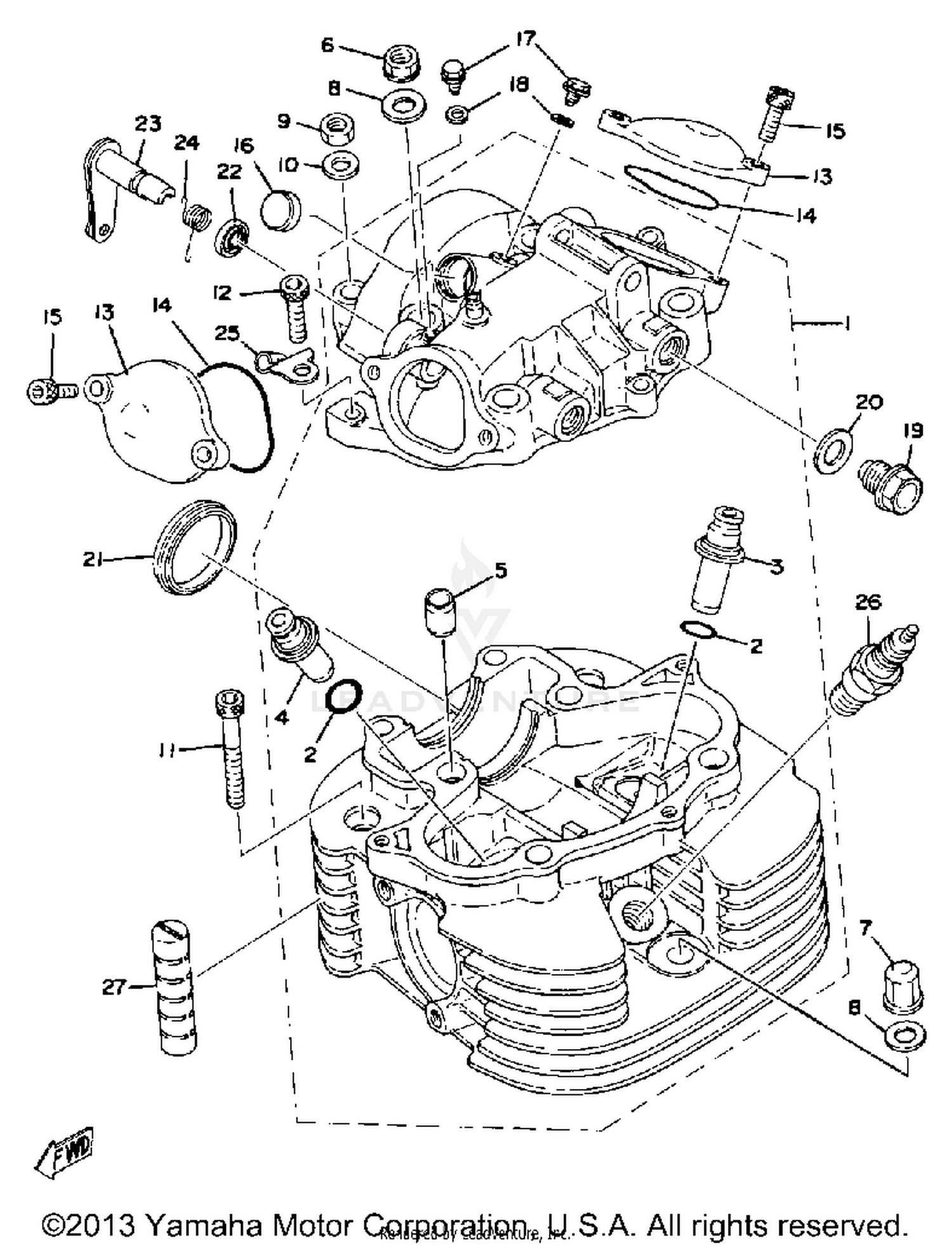

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
99999-00953-00
|
$562.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-14299-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GDE, INTK VLV 1 O/S
583-11133-11-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GDE, EXST VLV 1 O/S (1ST O.S.
583-11134-11-00
|
$71.99 | ||
|
Unavailable |
|||
|
#5
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
90176-10049-00
Superseded by 90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CROWN
90176-10049-00
Superseded by 90176-10075-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-10124-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06055-00
Superseded by 91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CYLINDER. HEAD 2
583-11186-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#14
O-RING
93210-49296-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90338-18067-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-06418-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, STRAIGHT SCRW
90340-14038-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
90430-14043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, SPEC''L SHAPE
90338-47065-00
|
$5.63 | ||
|
Unavailable |
|||
|
#22
OIL SEAL, SO-TYPE
93104-12054-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAM, DECOMPRESSION
583-12288-00-00
Superseded by 583-12288-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-16303-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, DCOMP
583-12283-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BPR7ES NGK - 4/PACK
NGK-BP7ES-00-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
|
#27
ABSORBER 3
583-11127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
