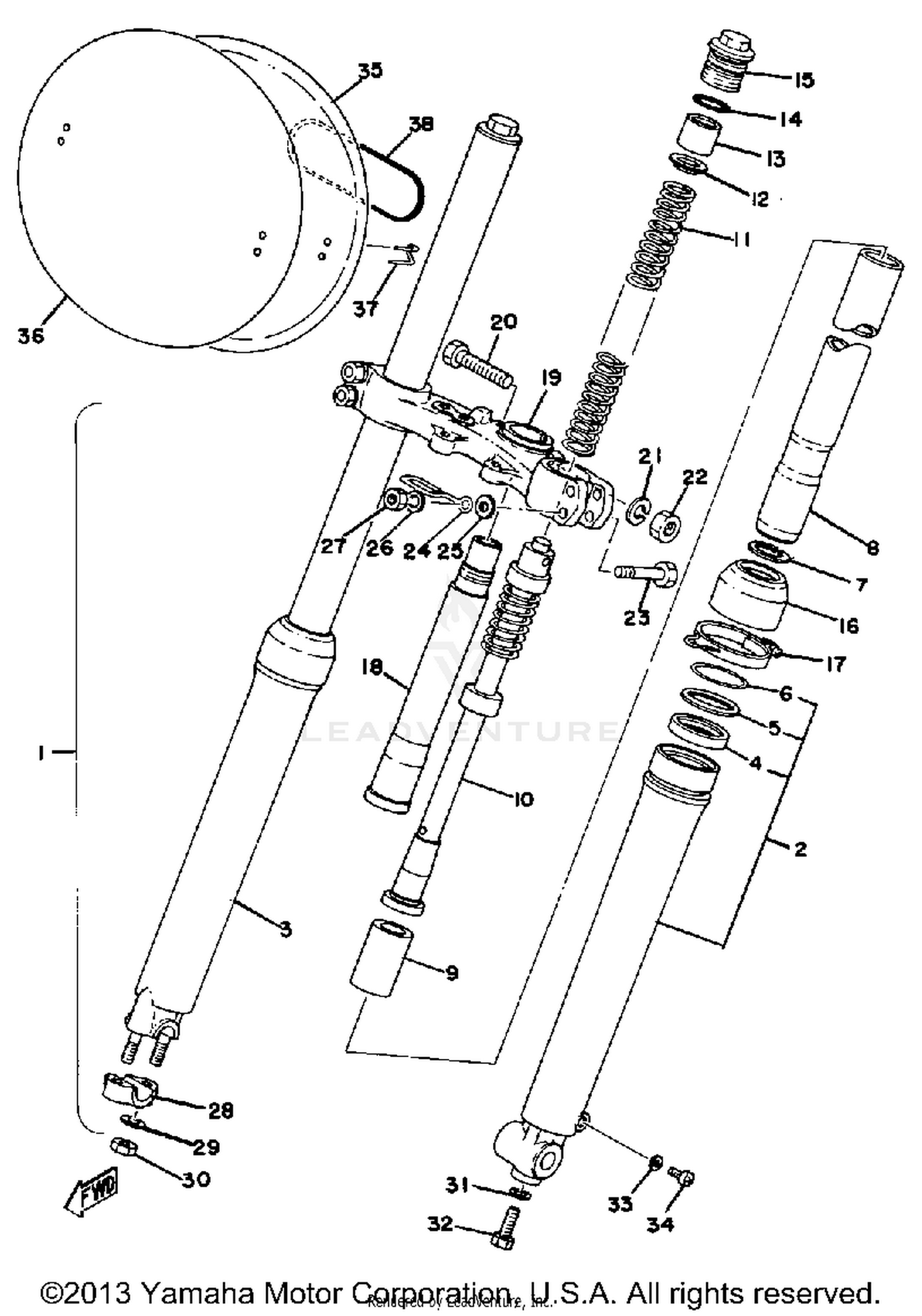

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
583-23101-00-00
|
$228.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
583-23126-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
583-23136-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
48Y-23145-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
341-23146-50-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL SEAL
341-23156-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, INNER
93450-30039-00
|
$2.39 | ||
|
Unavailable |
|||
|
#8
TUBE, INNER 1
583-23124-00-00
|
$71.59 | ||
|
Unavailable |
|||
|
#9
PISTON, FRONT FORK
583-23171-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRTFRK
583-23170-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#11
SPRING, FRONT FORK
583-23141-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#12
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
SPACER
583-23118-00-00
|
$0.89 | ||
|
Unavailable |
|||
|
#14
GASKET
240-23114-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP (583-23111-00)
2W6-23111-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#16
SEAL, DUST
583-23144-00-00
|
$11.84 | ||
|
Unavailable |
|||
|
#17
HOLDER, CABLE 1
583-23318-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#18
SHAFT, STEERING
1E6-23341-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#19
UNDER BRACKET
2H1-23340-00-33
|
$177.99 | ||
|
Unavailable |
|||
|
#20
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#21
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#23
BOLT
90101-08340-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
NO LONGER AVAILABLE
583-23317-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEXAGON
90170-08180-00
|
$1.74 | ||
|
Unavailable |
|||
|
#28
HOLDER, AXLE (291-23167-60)
291-23167-61-00
|
$44.99 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, NUMBER
583-23485-00-00
|
$11.86 | ||
|
Unavailable |
|||
|
#36
EMBLEM
322-23395-00-00
|
$13.72 | ||
|
Unavailable |
|||
|
#37
STAY, PLATE
431-23486-02-00
|
$5.99 | ||
|
Unavailable |
|||
|
#38
O-RING
93210-99103-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPACER
583-23118-00-00
|
$0.89 | ||
|
Unavailable |
|||
