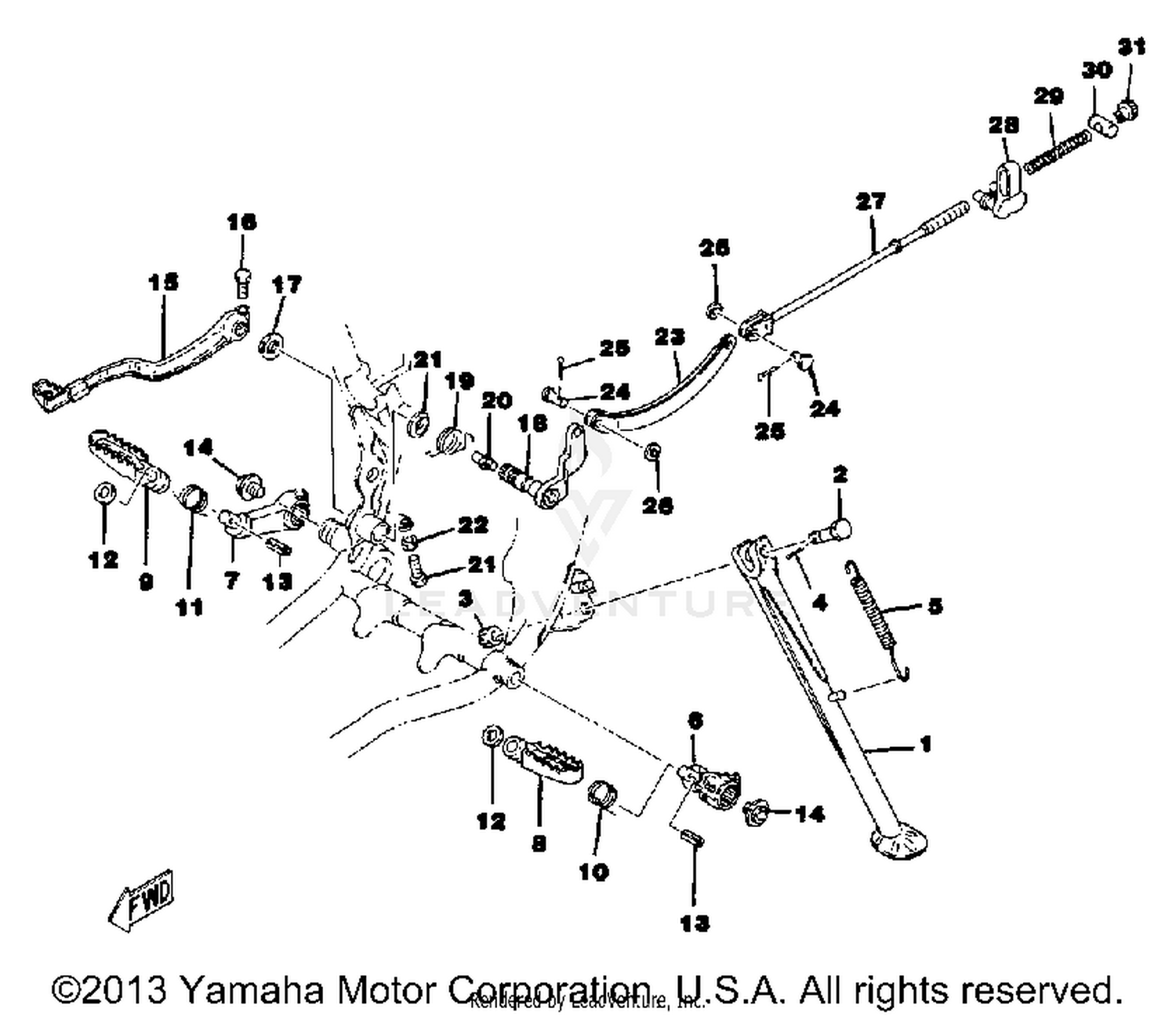

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE (583-27311-00)
1T1-27311-00-33
|
$60.99 | ||
|
Unavailable |
|||
|
#2
BOLT, WITH HOLE (278-27317-00)
90102-10006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90507-29009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, FOOTREST 1
2Y0-27412-00-33
|
$57.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, FOOTREST 2
2Y0-27422-00-33
|
$75.99 | ||
|
Unavailable |
|||
|
#8
FOOTREST 1
583-27411-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#9
FOOTREST 2
583-27421-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#10
SPRING, TORSION
90508-26277-00
|
$4.20 | ||
|
Unavailable |
|||
|
#11
SPRING, TORSION
90508-26276-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-122A7-00
Superseded by 90201-12047-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN,SPRING
91609-30020-00
Superseded by 91690-30020-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PEDAL, BRAKE
1U6-27211-00-93
|
$59.99 | ||
|
Unavailable |
|||
|
#16
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, DUST
498-27235-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, BRAKE PEDAL
1E6-27252-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#19
SPRING, TORSION
90508-32278-00
|
$5.99 | ||
|
Unavailable |
|||
|
#20
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD, JOINT
583-27241-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#24
PIN, CLEVIS
90240-08051-00
|
$3.80 | ||
|
Unavailable |
|||
|
#25
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90201-08624-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
ROD, BRAKE
583-27231-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#28
COVER
583-27244-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#29
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SPEC''L SHAPE
90179-06006-00
|
$10.09 | ||
|
Unavailable |
|||
