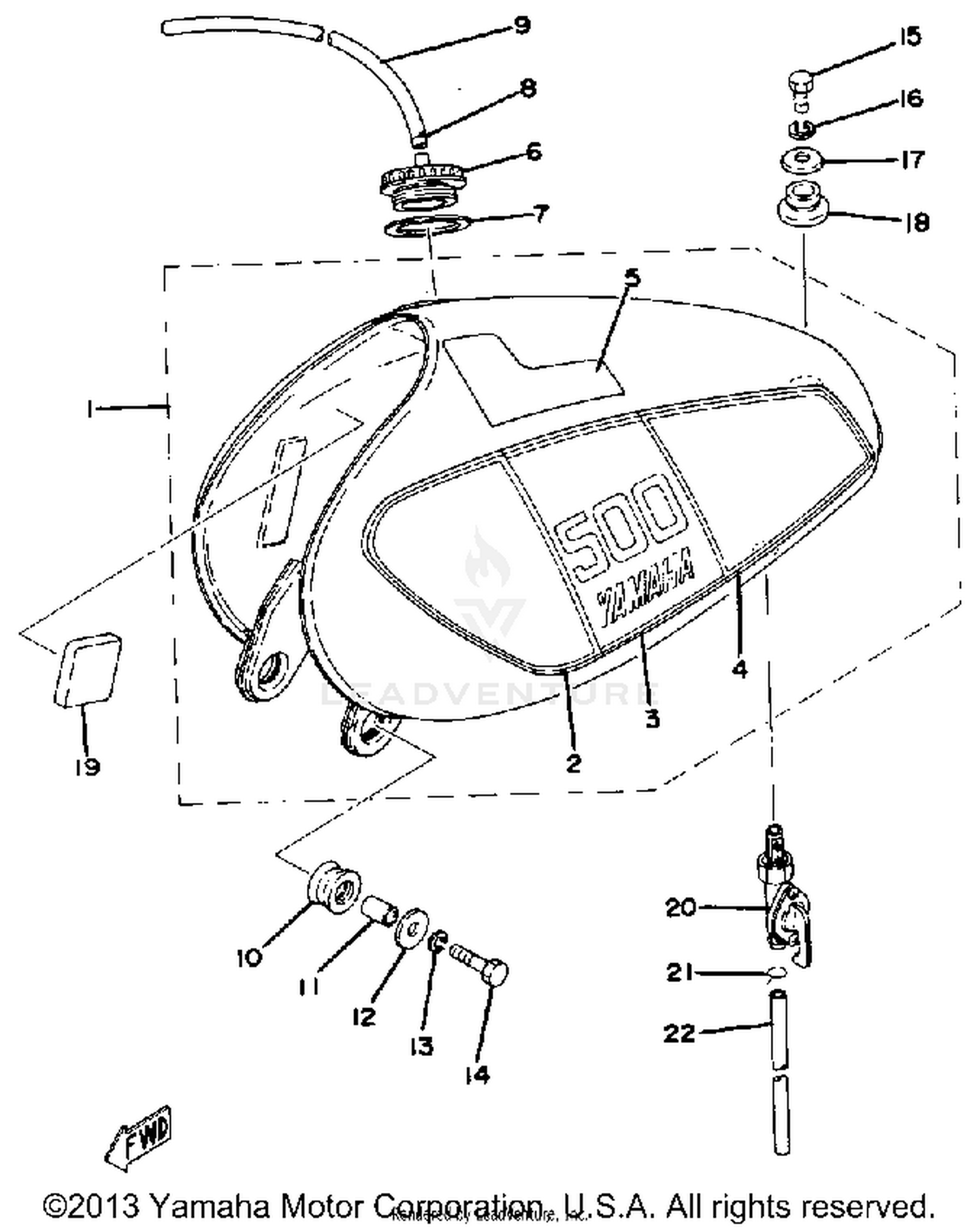

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
583-24110-00-01
|
$289.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
583-24244-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 5
583-24248-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2 (LEFT)
583-24245-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 6 (RIGHT)
583-24249-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 3
583-24246-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 7 (RIGHT)
583-24254-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 4
583-24247-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 8 (RIGHT)
583-24255-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
BODY, CAP
322-24611-02-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-35122-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-22177-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06570-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPEC''L SHAP (90209-080
90209-08150-00
|
$2.85 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-22054-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, LOCATING 2
583-24182-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUEL COCK ASSEMBLY 1 (322-24500
322-24500-02-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE (L210)
90445-11288-00
Superseded by 90445-110F5-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
