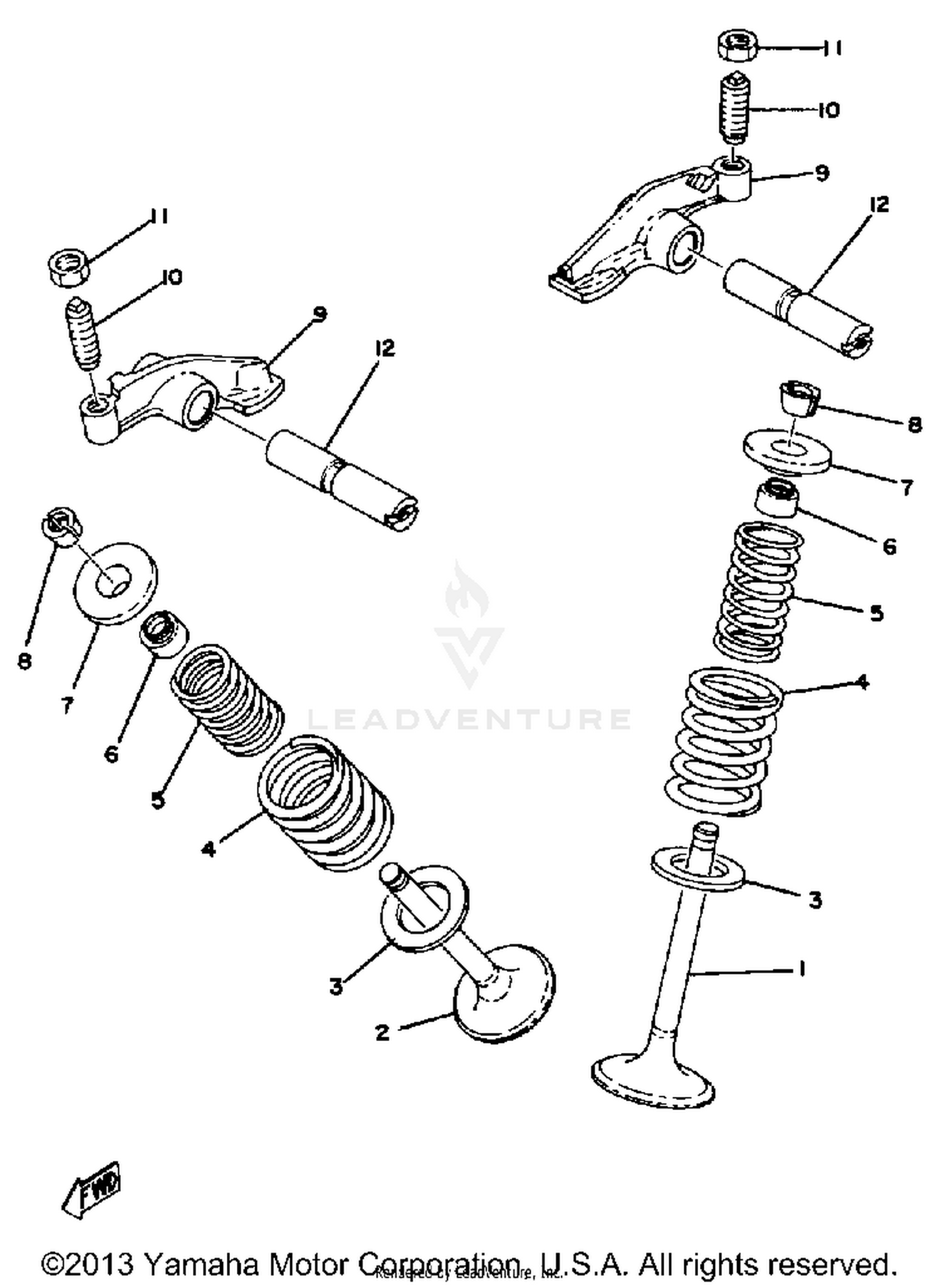

Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, INTAKE
583-12111-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#2
VALVE, EXHAUST
583-12121-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT, VALVE SPRING
256-12116-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#4
SPRING, COMPRESSION
90501-42377-00
|
$5.82 | ||
|
Unavailable |
|||
|
#5
SPRING, COMPRESSION
90501-29376-00
|
$5.99 | ||
|
Unavailable |
|||
|
#6
SEAL, VALVE STEM
341-12119-02-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, VALVE SPR
256-12117-02-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COTTER, VALVE
341-12118-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, VALVE ROCKER
583-12151-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, VALVE ADJUSTING
90149-08098-00
Superseded by 3HT-12159-R0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90170-08173-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, ROCKER 2
583-12156-01-00
Superseded by 583-12156-02-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
