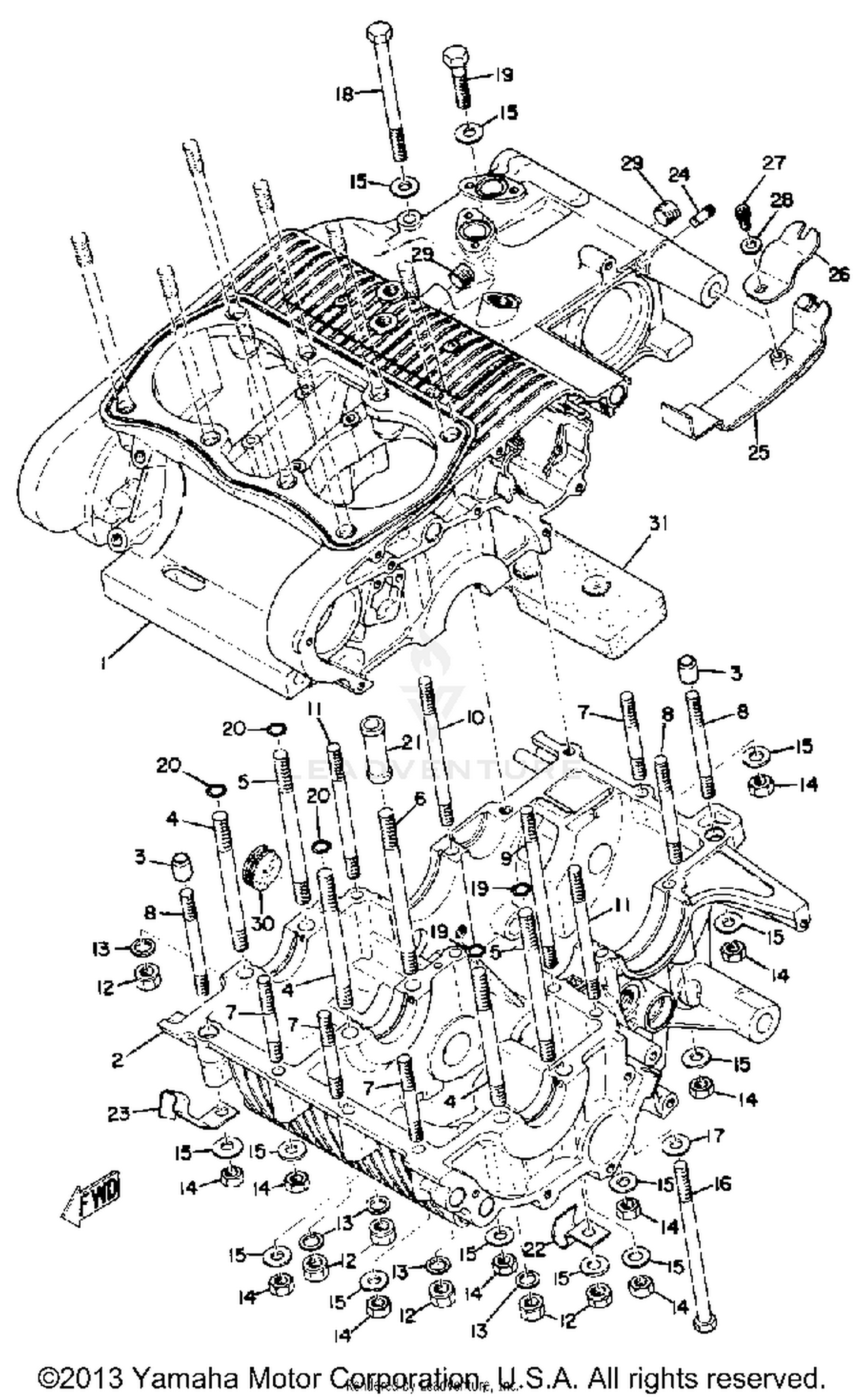

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
341-15100-Y7-00
|
$479.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
90116-10090-00
|
$1.30 | ||
|
Unavailable |
|||
|
#5
BOLT, STUD
90116-10091-00
|
$2.20 | ||
|
Unavailable |
|||
|
#6
BOLT, STUD
90116-10092-00
|
$1.30 | ||
|
Unavailable |
|||
|
#7
BOLT, STUD (341-15194-00)
90116-08154-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
BOLT, STUD
90116-08065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
90116-08073-00
|
$0.75 | ||
|
Unavailable |
|||
|
#10
BOLT, STUD
90116-08070-00
|
$0.75 | ||
|
Unavailable |
|||
|
#11
BOLT, STUD
90116-08232-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPEC''L SHAPE
90179-10175-00
|
$2.10 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON
97021-08140-00
Superseded by 97027-08140-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95811-08110-00
Superseded by 95814-08110-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON
97313-08040-00
Superseded by 97014-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-09192-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR (341-15337-00)
90387-10092-00
|
$5.99 | ||
|
Unavailable |
|||
|
#22
CLAMP
90462-08013-00
|
$1.00 | ||
|
Unavailable |
|||
|
#23
CLAMP
90465-08008-00
|
$1.00 | ||
|
Unavailable |
|||
|
#24
CONNECTOR, SCTN PPE
341-13115-10-00
|
$0.70 | ||
|
Unavailable |
|||
|
#25
GUIDE, CHAIN
341-17466-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#26
GUIDE, CHAIN 1
341-17467-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#27
BOLT
91316-06010-00
Superseded by 91317-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG, TAPER SCREW
90344-52001-00
|
$0.70 | ||
|
Unavailable |
|||
|
#
PLUG, BLIND 1
341-15167-90-00
|
$0.80 | ||
|
Unavailable |
|||
|
#30
PLUG, SPEC''L SHAPE
90338-23001-00
|
$2.37 | ||
|
Unavailable |
|||
|
#31
DUMMY, RUBBER
341-15108-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#
PARTS KIT 750
341-15000-00-00
|
$502.99 | ||
|
Unavailable |
|||
