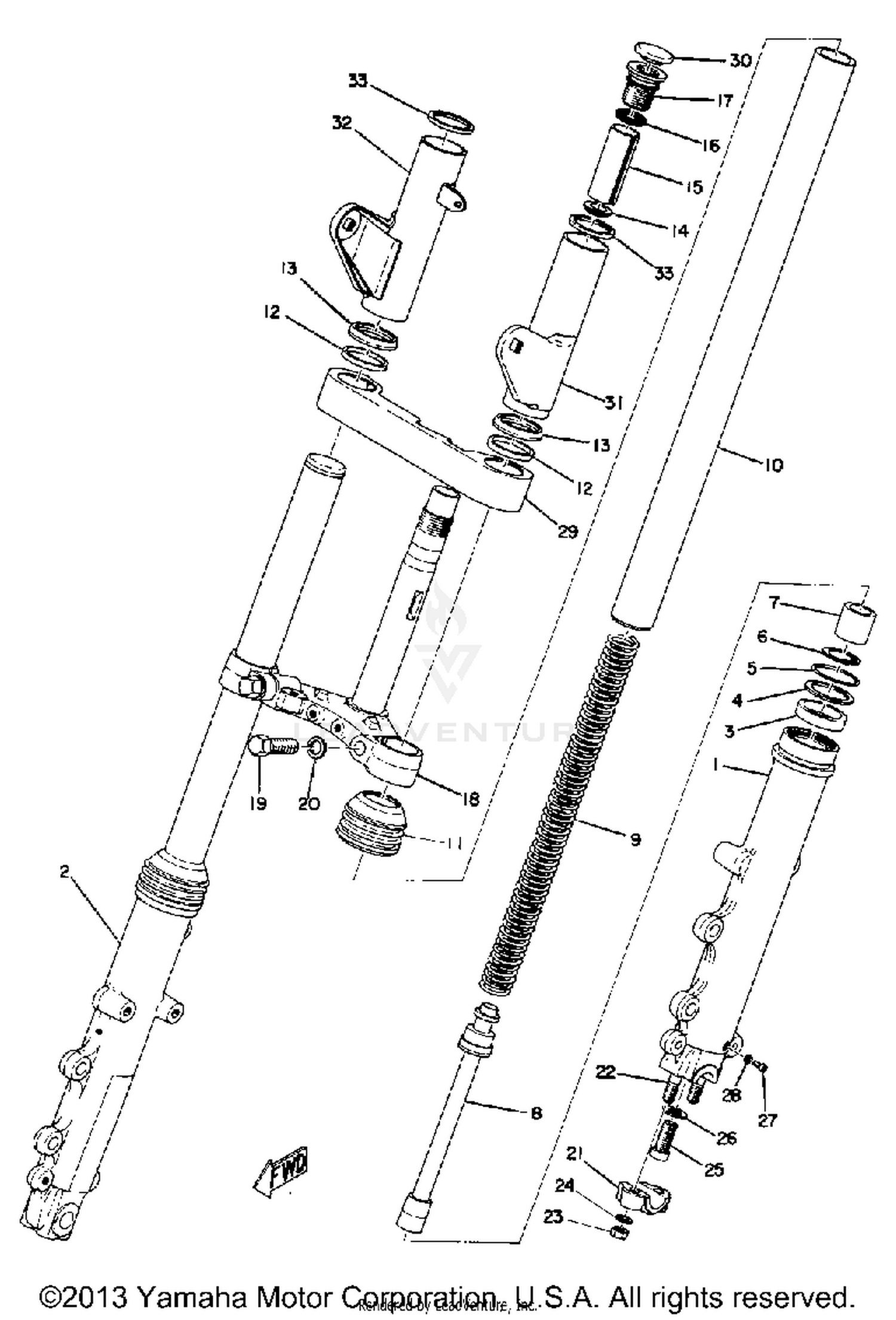

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
341-23101-51-00
|
$392.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
341-23126-50-00
|
$92.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
341-23136-50-00
|
$92.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
341-23145-51-00
|
$26.99 | ||
|
Unavailable |
|||
|
#4
WASHER, OIL SEAL
341-23146-50-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, OIL SEAL
341-23156-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
PISTON, FRONT FORK
278-23171-50-00
|
$9.28 | ||
|
Unavailable |
|||
|
#8
CYLINDER, FRTFRK
341-23170-50-00
|
$38.92 | ||
|
Unavailable |
|||
|
#9
SPRING, FRONT FORK
341-23141-50-00
|
$15.04 | ||
|
Unavailable |
|||
|
#10
TUBE, INNER 1
341-23124-50-00
|
$102.99 | ||
|
Unavailable |
|||
|
#11
SEAL, DUST
341-23144-50-00
|
$17.60 | ||
|
Unavailable |
|||
|
#12
GASKET (LAMP STAY)
291-23163-61-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
GUIDE, COVER LOWER
256-23116-61-00
|
$12.92 | ||
|
Unavailable |
|||
|
#14
SEAT, SPRING UPPER
278-23142-50-00
|
$8.99 | ||
|
Unavailable |
|||
|
#15
SPACER
33Y-23118-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#16
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#17
BOLT, CAP
341-23111-51-00
|
$36.99 | ||
|
Unavailable |
|||
|
#18
UNDER BRACKET
341-23340-31-33
|
$92.99 | ||
|
Unavailable |
|||
|
#19
BOLT 1
306-23346-60-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, AXLE
341-23167-50-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, STUD
90116-08261-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, OUTER 1
341-23122-51-00
|
$14.99 | ||
|
Unavailable |
|||
|
#30
CAP, FRONT FORK
371-23168-60-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
COVER, UPPER 1
341-23121-50-M5
|
$43.56 | ||
|
Unavailable |
|||
|
#
COVER, UPPER 1
341-23121-50-R6
|
$56.05 | ||
|
Unavailable |
|||
|
#32
COVER, UPPER 2
341-23131-50-M5
|
$59.11 | ||
|
Unavailable |
|||
|
#
COVER, UPPER 2
341-23131-50-R6
|
$48.91 | ||
|
Unavailable |
|||
|
#33
GUIDE, COVER UPPER
2H7-23115-00-00
|
$7.99 | ||
|
Unavailable |
|||
