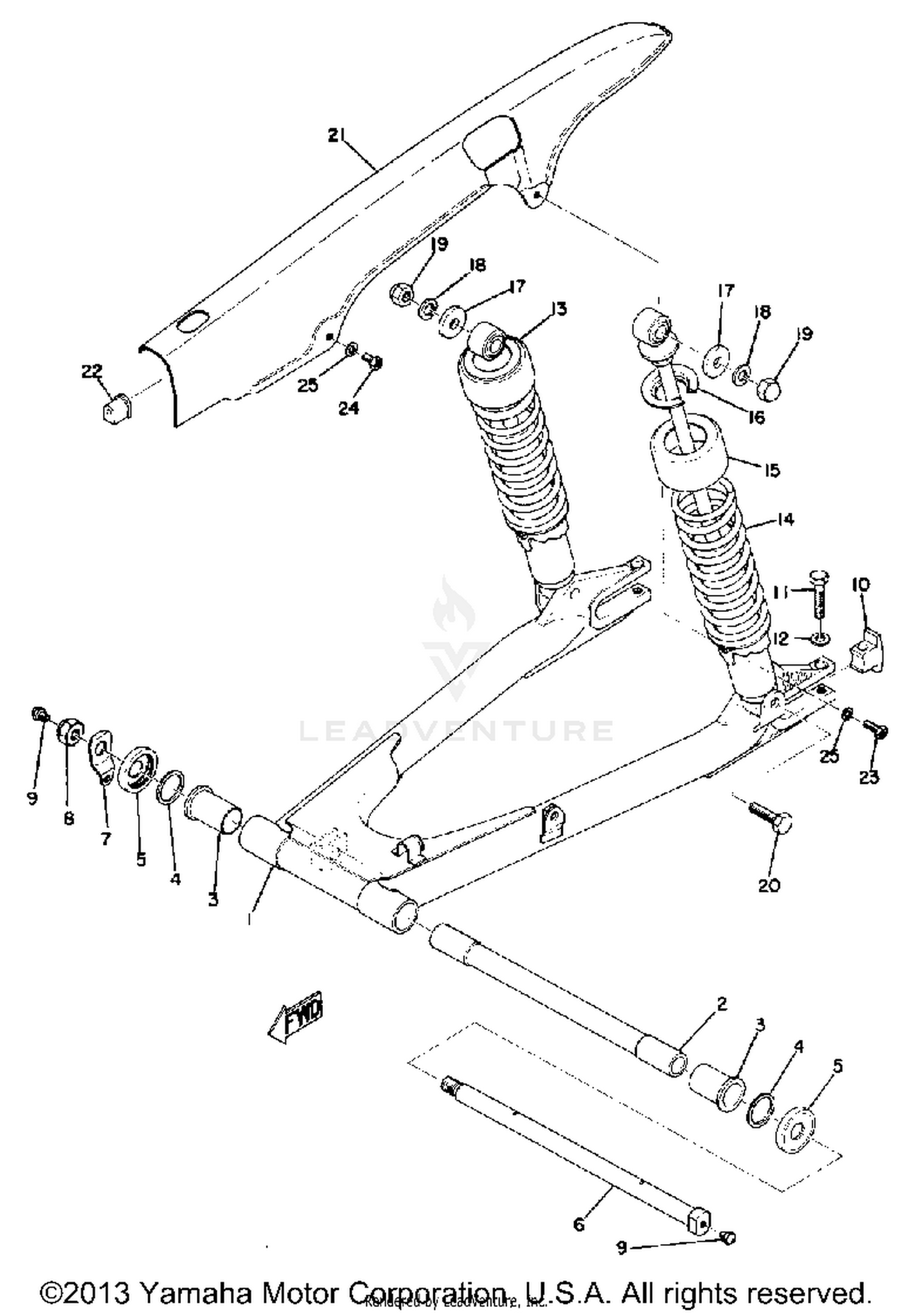

Rear Arm - Rear Cushion - Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
341-22110-01-33
|
$98.99 | ||
|
Unavailable |
|||
|
#2
BUSH
341-22184-00-00
|
$133.99 | ||
|
Unavailable |
|||
|
#3
BUSH, SPEC''L NYLON
90386-22102-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
341-22128-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
SHAFT, PIVOT
341-22141-01-00
|
$14.84 | ||
|
Unavailable |
|||
|
#7
WASHER, LOCK
90215-14104-00
|
$2.10 | ||
|
Unavailable |
|||
|
#8
NUT
341-22143-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#9
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, COMPRESSION
341-22177-00-00
|
$12.50 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON
97313-08040-00
Superseded by 97014-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHK/ABS ASSEMBLY, REAR
341-22210-29-00
|
$92.99 | ||
|
Unavailable |
|||
|
#14
SPRING
341-22212-20-00
|
$19.28 | ||
|
Unavailable |
|||
|
#15
COVER
341-22211-20-00
|
$6.44 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
341-22213-20-00
|
$6.44 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-10142-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95303-10800-00
Superseded by 95380-10800-00
|
$14.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, DOME HEAD
90106-10025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CASE, CHAIN
341-22311-02-98
|
$51.99 | ||
|
Unavailable |
|||
|
#22
DAMPER, CHAIN CASE
341-22332-00-00
|
$0.70 | ||
|
Unavailable |
|||
|
#23
BOLT
90153-06007-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, HEXAGON
90153-06005-00
|
$2.15 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
