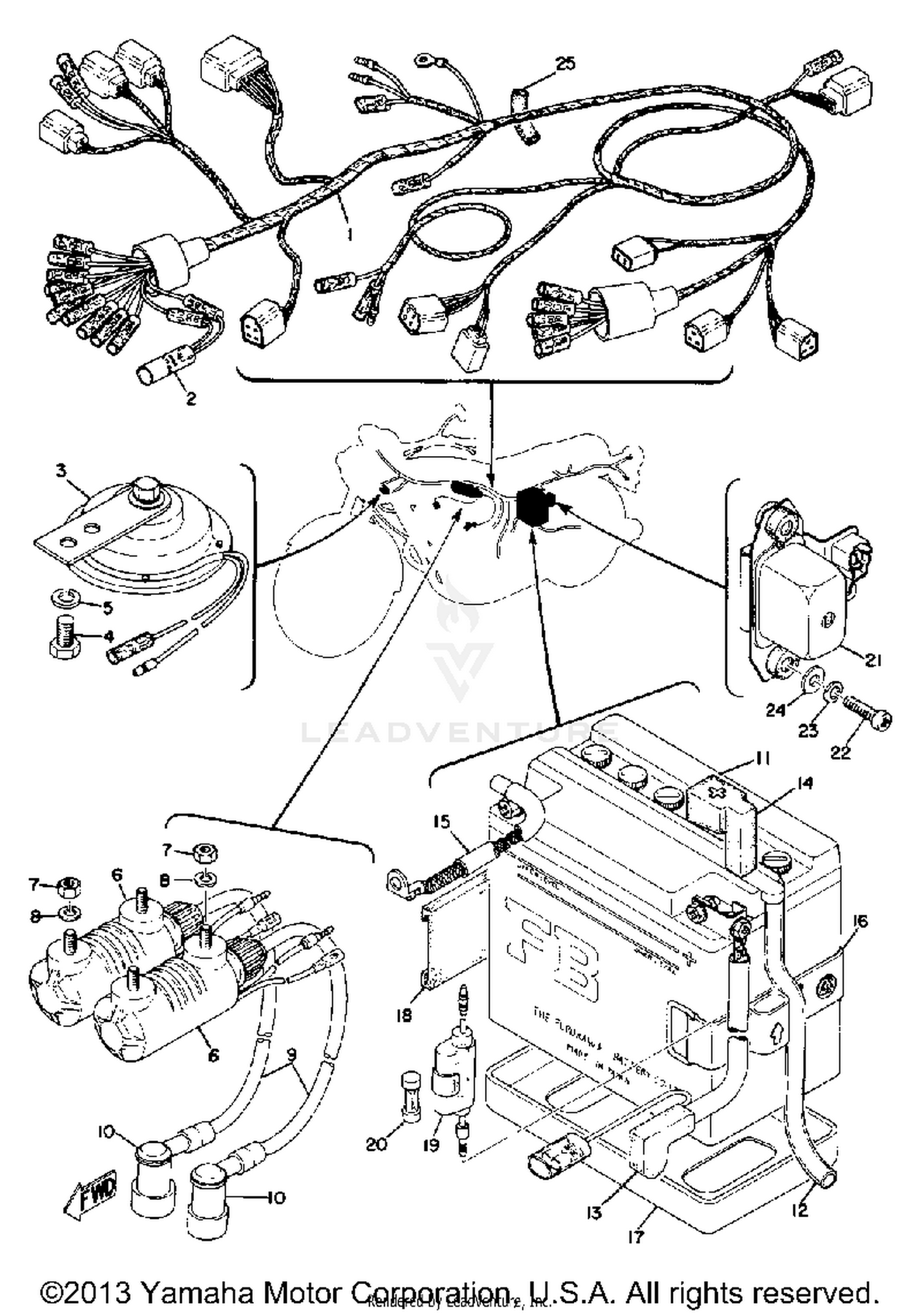

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, BATTERY
104-82111-20-00
|
$2.97 | ||
|
Unavailable |
|||
|
#
WIRE HARNESS ASSEMBLY
341-82590-34-00
|
$72.47 | ||
|
Unavailable |
|||
|
#
WIRE HARNESS ASSEMBLY
341-82590-35-00
|
$81.92 | ||
|
Unavailable |
|||
|
#2
DIODE (341-81980-01)
341-81980-30-00
|
$42.99 | ||
|
Unavailable |
|||
|
#3
HORN
47G-83371-30-00
|
$174.99 | ||
|
Unavailable |
|||
|
#4
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
IGNITION COIL ASSEMBLY
254-82310-60-00
|
$196.99 | ||
|
Unavailable |
|||
|
#7
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
CORD, HIGH TENSION 1
4X7-82341-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG CAP ASSY
56J-82370-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
YB16LB YUASA BATTER
BTY-12N16-3B-00
Superseded by YB1-6LB00-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE
90445-08582-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE, PLUS LEAD
341-82115-03-00
|
$35.99 | ||
|
Unavailable |
|||
|
#14
COVER, LEAD WIRE
341-82119-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#15
WIRE, MINUS LEAD
341-82116-01-00
|
$17.80 | ||
|
Unavailable |
|||
|
#16
BAND, BATTERY
26H-82131-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT, BATTERY
341-82122-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#18
PAD, BATTERY
341-82121-00-00
|
$0.62 | ||
|
Unavailable |
|||
|
#19
FUSE HOLDER ASSY
2UJ-82150-01-00
Superseded by 2UJ-82150-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE
1A0-82161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
VOLTAGE REG ASSEMBLY
341-81910-13-00
|
$63.46 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE
341-82139-00-00
|
$0.27 | ||
|
Unavailable |
|||
