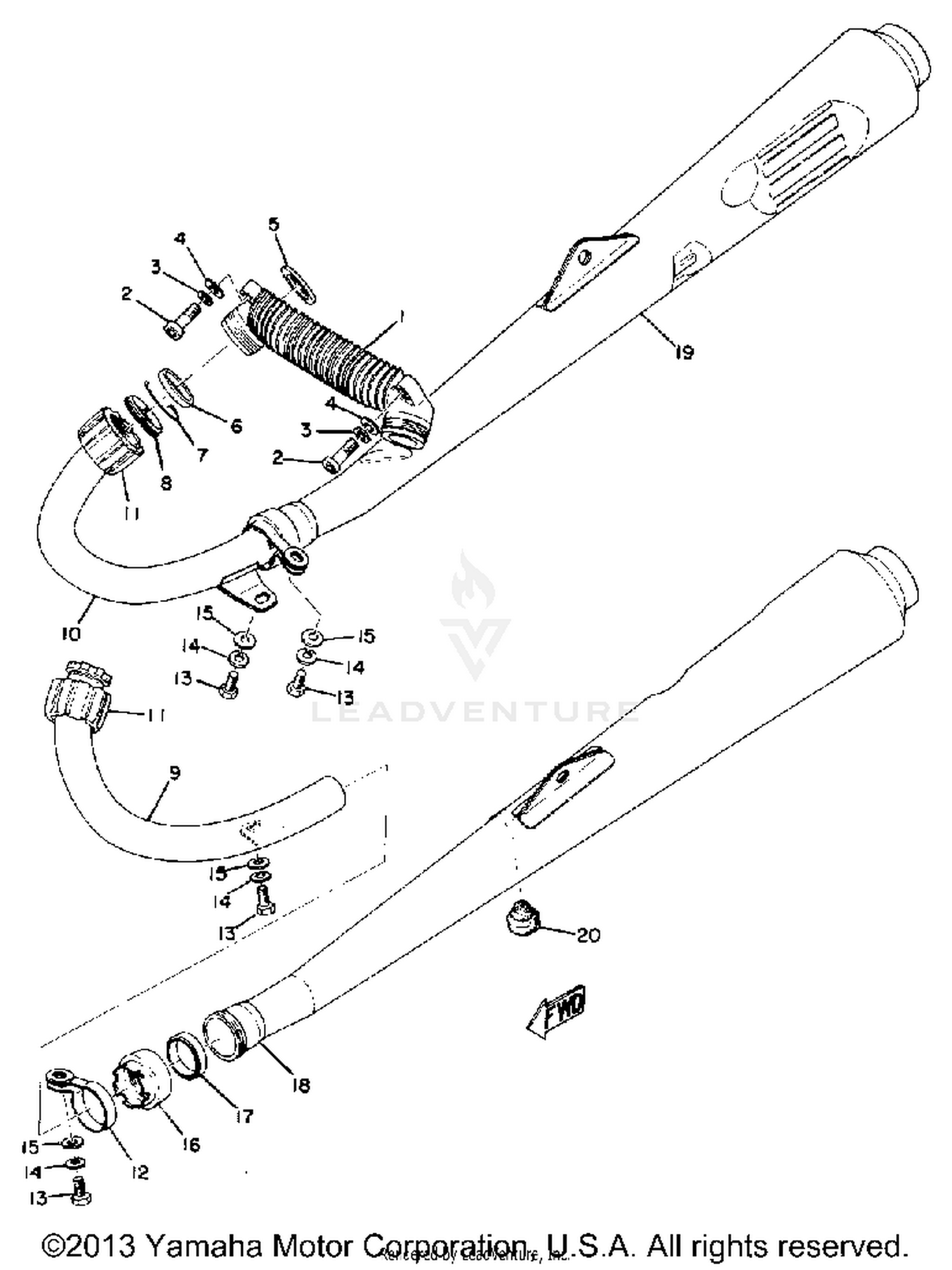

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EXHAUST L
341-14615-01-00
|
$129.99 | ||
|
Unavailable |
|||
|
#2
BOLT, HEX SKT HEAD (341-11398-0
90110-10014-00
|
$13.99 | ||
|
Unavailable |
|||
|
#3
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, EXST PIPE
341-14623-00-00
Superseded by 341-14623-09-00
|
$19.99 | ||
|
Unavailable |
|||
|
#6
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP (341-14624-00)
90468-10016-00
|
$4.40 | ||
|
Unavailable |
|||
|
#8
RING, STOPPER
341-14618-01-00
|
$6.44 | ||
|
Unavailable |
|||
|
#9
PIPE, EXHAUST L
341-14611-01-00
|
$75.99 | ||
|
Unavailable |
|||
|
#10
PIPE, EXHAUST R
341-14621-01-00
|
$81.99 | ||
|
Unavailable |
|||
|
#11
NUT, RING
341-14612-01-00
|
$13.14 | ||
|
Unavailable |
|||
|
#12
BAND, MUFFLER
341-14715-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#13
BOLT
97011-10020-00
Superseded by 97017-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Unavailable |
|||
|
#16
NUT, MUFFLER JOINT
341-14713-00-00
|
$11.86 | ||
|
Unavailable |
|||
|
#17
GASKET, MUFFLER
341-14714-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#18
MUFFLER L
341-14711-11-00
|
$219.99 | ||
|
Unavailable |
|||
|
#19
MUFFLER R
341-14721-11-00
|
$219.99 | ||
|
Unavailable |
|||
|
#20
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
STOPPER, MAIN STAND
116-27114-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
