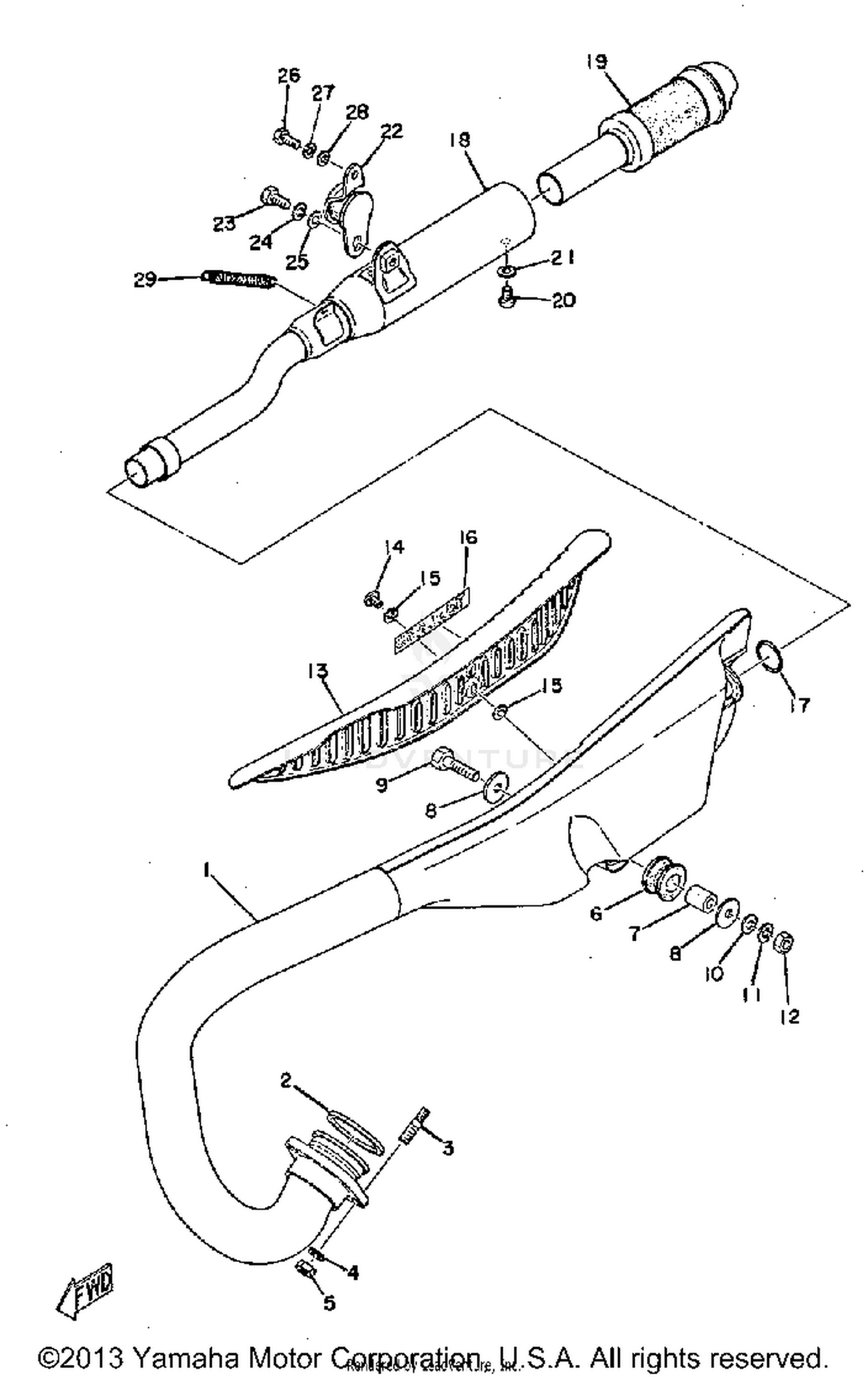

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
434-14610-01-00
|
$183.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
214-14613-00-00
Superseded by 214-14613-09-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD (392-14651-00)
90116-06146-00
|
$5.49 | ||
|
Unavailable |
|||
|
#4
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER 2
168-21639-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
NUT
95333-08600-00
|
$2.35 | ||
|
Unavailable |
|||
|
#13
PROTECTOR, MUFF 1
434-14718-01-26
|
$26.99 | ||
|
Unavailable |
|||
|
#14
SCREW, BIND
98903-06010-00
Superseded by 98980-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM 7
434-21787-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#17
O-RING
93210-24235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SILENCER, EXHAUST
434-14753-00-00
|
$86.04 | ||
|
Unavailable |
|||
|
#19
PIPE, OUTLET
1M1-14752-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY 5
363-14782-10-00
|
$26.99 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, TENSION
90506-16108-00
|
$4.85 | ||
|
Unavailable |
|||
