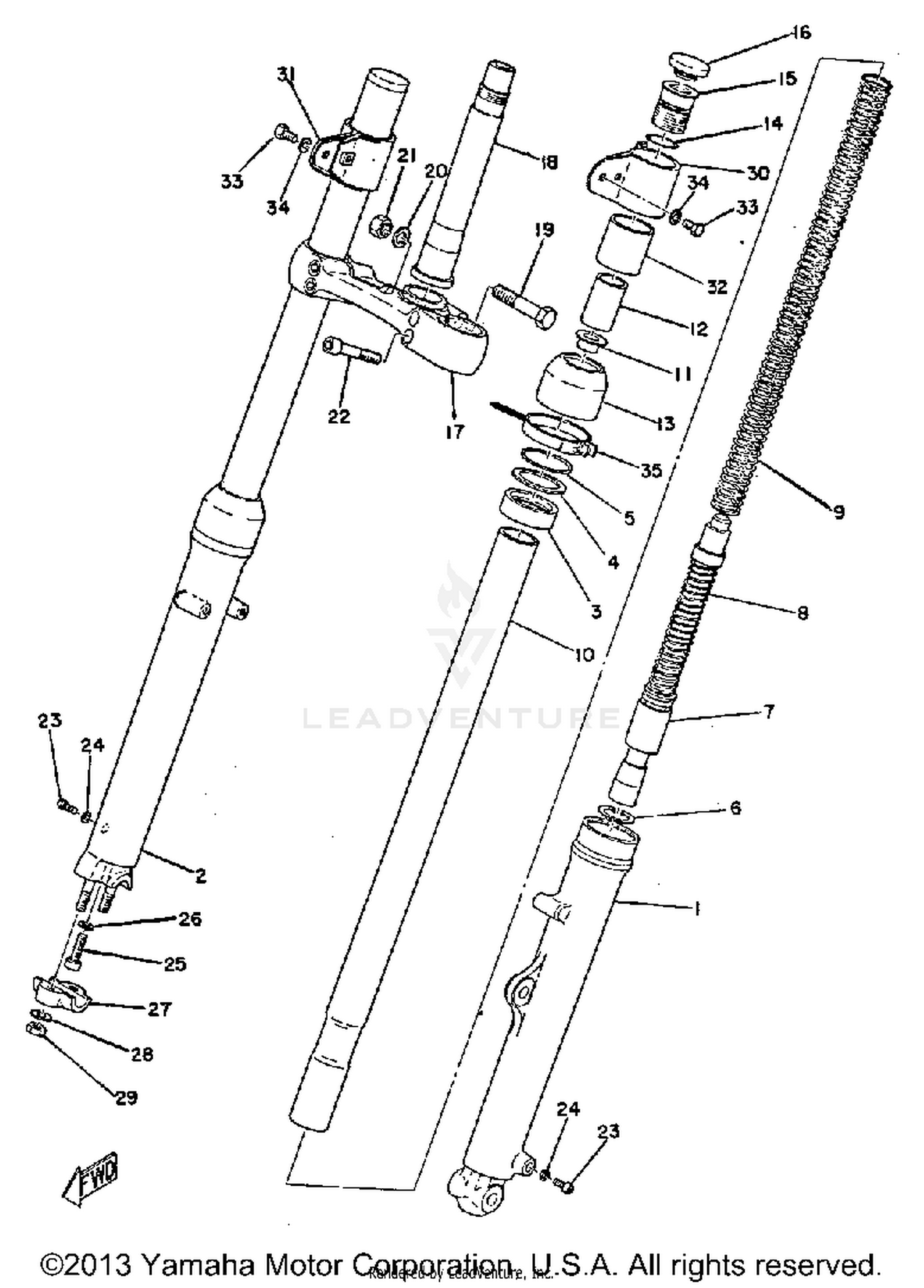

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
434-23101-00-00
|
$329.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
434-23126-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
434-23136-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#6
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
PISTON, FRONT FORK
434-23171-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#8
CYLINDER, FRTFRK
434-23170-00-00
|
$40.52 | ||
|
Unavailable |
|||
|
#9
SPRING, FRONT FORK
434-23141-00-00
|
$35.38 | ||
|
Unavailable |
|||
|
#10
TUBE, INNER 1
434-23124-00-00
|
$96.49 | ||
|
Unavailable |
|||
|
#11
SEAT, SPRING UPPER
278-23142-50-00
|
$8.99 | ||
|
Unavailable |
|||
|
#12
SPACER
214-23118-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#13
SEAL, DUST
292-23144-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#14
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#15
BOLT, CAP
341-23111-51-00
|
$36.99 | ||
|
Unavailable |
|||
|
#16
CAP, FRONT FORK
371-23168-60-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
BRACKET, LOWER
434-23345-00-00
|
$78.31 | ||
|
Unavailable |
|||
|
#18
SHAFT, STEERING
516-23341-31-00
|
$63.99 | ||
|
Unavailable |
|||
|
#19
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#22
BOLT 1
322-23346-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, AXLE
315-23167-51-00
|
$101.99 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, UPPER 1
434-23121-01-93
|
$37.99 | ||
|
Unavailable |
|||
|
#31
COVER, UPPER 2
434-23131-01-93
|
$39.99 | ||
|
Unavailable |
|||
|
#32
GASKET
434-23163-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#33
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP, HOSE
90460-54061-00
|
$3.00 | ||
|
Unavailable |
|||
