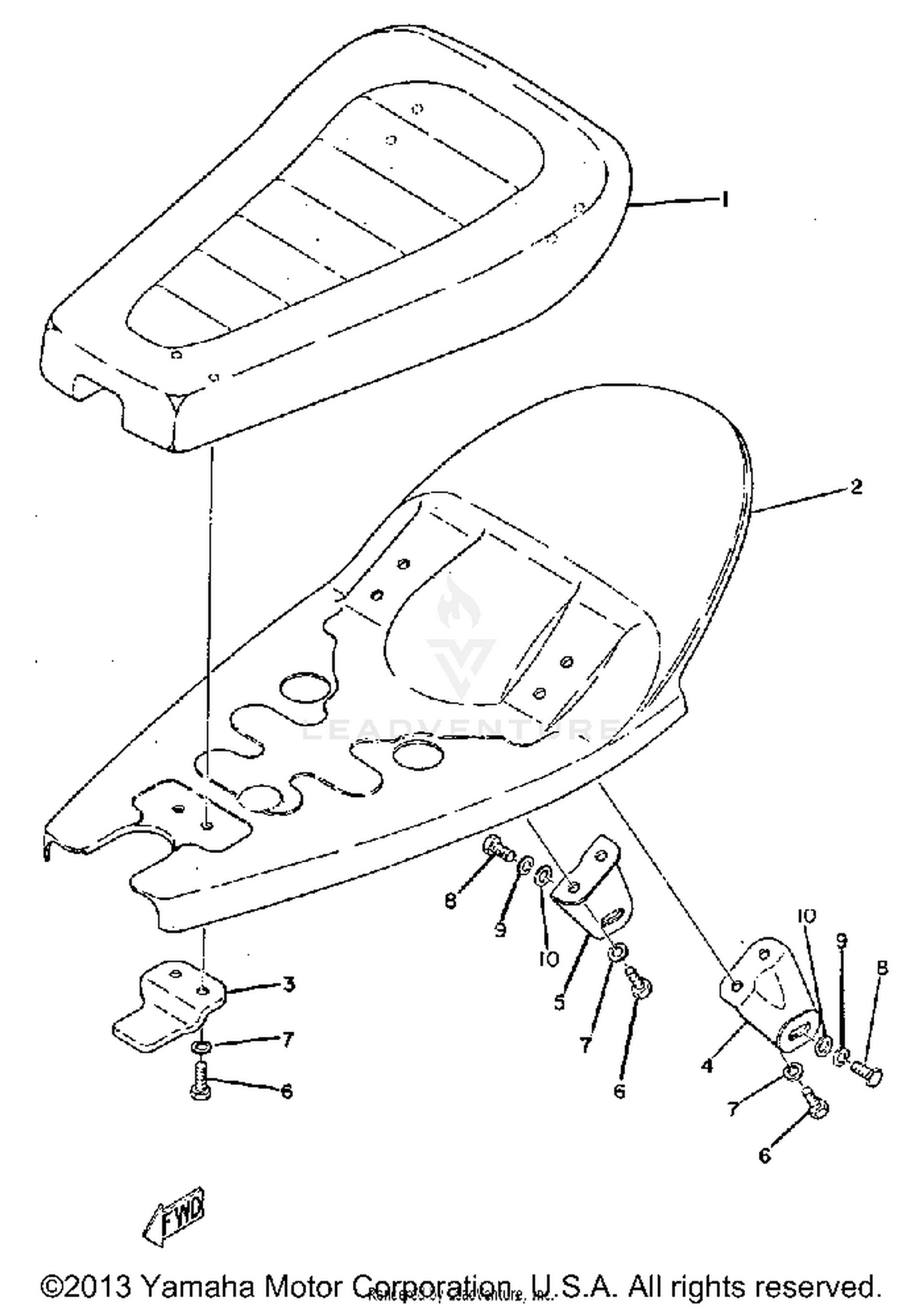

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SM-DBL SEAT
434-24771-00-00
|
$92.76 | ||
|
Unavailable |
|||
|
#2
PLATE, BOTTOM
434-24764-00-26
|
$122.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
2Y0-24748-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#4
BRACKET, SEAT
434-24738-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#5
BRACKET, SEAT
434-24748-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#6
BOLT
97001-06018-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
