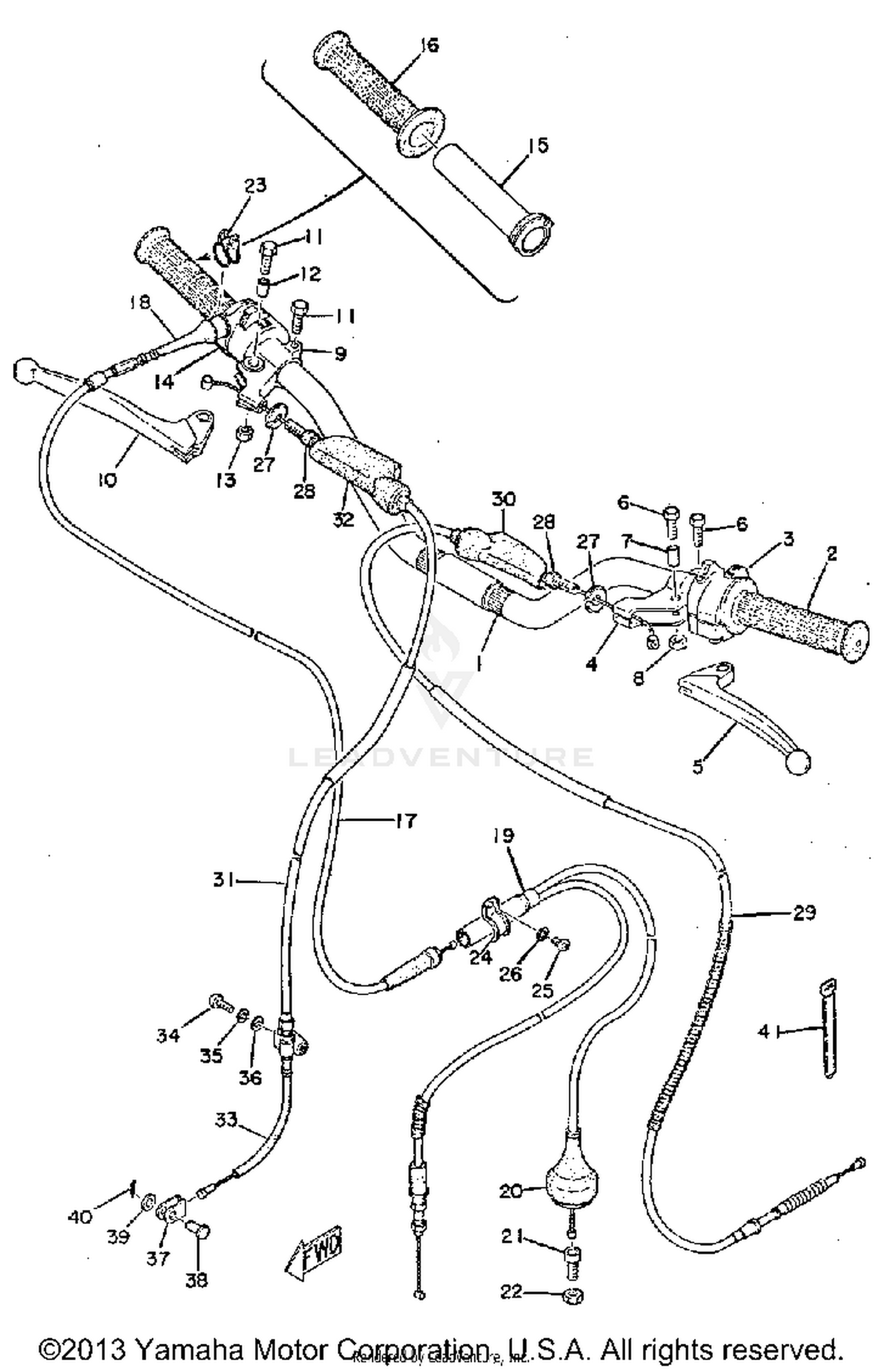

Handle-wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER HOLDER ASSEMBLY 1 (214-82
214-82910-07-00
|
$51.99 | ||
|
Unavailable |
|||
|
#
HANDLEBAR
525-26111-01-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP LH
341-26241-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#
LEVER HOLDER ASSEMBLY 2
233-82920-33-00
|
$51.99 | ||
|
Unavailable |
|||
|
#3
SWITCH, HANDLE 2
434-83975-00-00
|
$61.15 | ||
|
Unavailable |
|||
|
#4
HOLDER, LEVER 1
214-82911-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER 1
214-83912-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR, LEVER 1
214-83913-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, LEVER 2
233-82921-31-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER R
233-83922-30-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
COLLAR, LEVER 1
214-83913-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#14
SWITCH, HANDLE 1
434-83976-00-00
|
$47.56 | ||
|
Unavailable |
|||
|
#15
TUBE, THROTTLE GUIDE
434-26243-12-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GRIP RH
341-26242-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#17
CABLE, THROTTLE 1
434-26311-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#18
BOOT, THROTTLE CBLE
322-26316-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#19
CABLE, THROTTLE 2
434-26312-00-00
|
$35.25 | ||
|
Unavailable |
|||
|
#20
CAP, RUBBER
401-26329-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#21
JOINT, CABLE
322-26347-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#22
NUT, HEXAGON
90170-06011-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP, HOSE
90460-12268-00
|
$17.49 | ||
|
Unavailable |
|||
|
#24
HOLDER
363-26393-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CABLE, CLUTCH
434-26335-03-00
|
$32.99 | ||
|
Unavailable |
|||
|
#30
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WIRE, BRAKE 1
434-26341-04-00
Superseded by 434-26341-05-00
|
$44.99 | ||
|
Unavailable |
|||
|
#32
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#33
BOOT, CABLE
434-26342-01-00
|
$4.35 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#37
JOINT, CABLE
156-26347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
