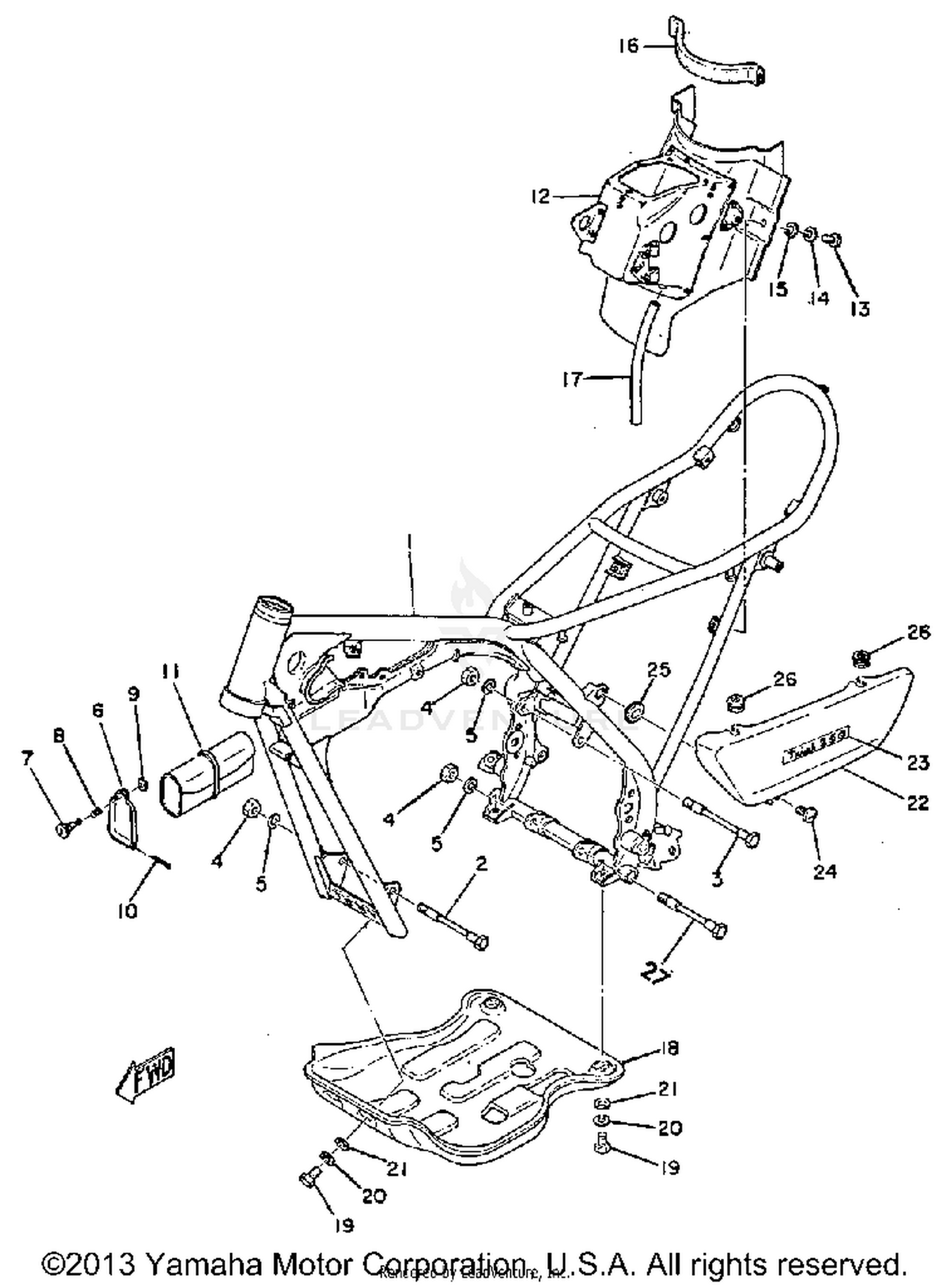

Frame-side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
434-21110-01-35
|
$311.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-10051-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,WASHER BASED
90105-10052-00
Superseded by 90109-101A0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, TOOL BOX
434-28171-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#7
KNOB, TOOL BOX
434-28172-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#8
SPRING, COMPRESSION
90501-10187-00
|
$2.65 | ||
|
Unavailable |
|||
|
#9
NUT, SPEC''L SHAPE (256-27218-0
90179-06034-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER
91401-30040-00
Superseded by 91490-30045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TOOL KIT
5A8-W2810-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX, AIR CLEANER
434-21240-01-00
|
$90.29 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
434-21746-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#17
PIPE 5
90445-09089-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ENG PROTECT TY250
ACC-11110-52-00
|
$17.99 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, SIDE 1
434-21711-00-26
|
$13.14 | ||
|
Unavailable |
|||
|
#23
EMBLEM 7
434-21787-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#24
KNOB, SIDE COVER 1
371-21714-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
90105-10050-00
Superseded by 90105-10105-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
