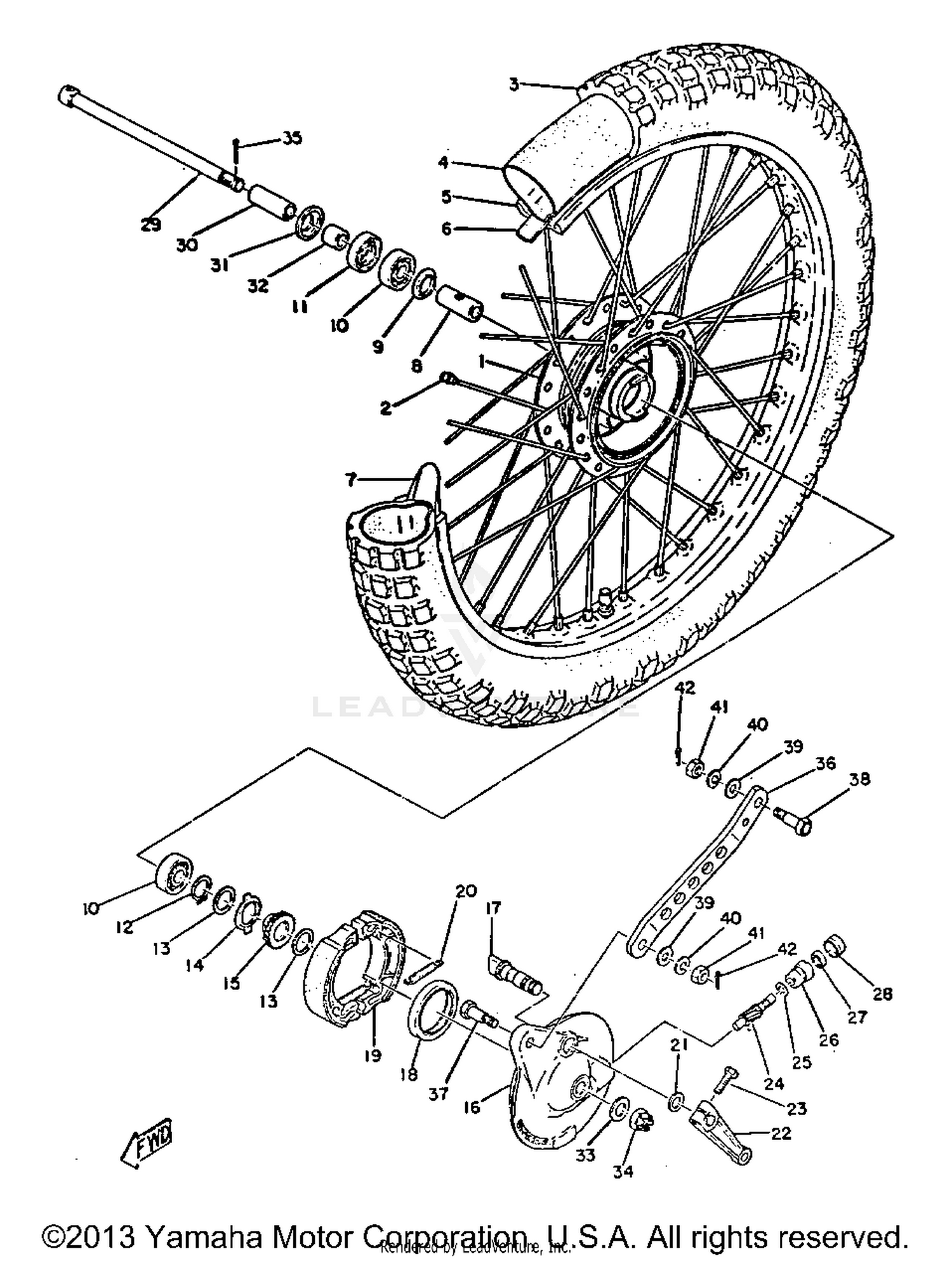

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-38
Superseded by 248-25111-10-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, FRONT
345-25104-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPOKE SET, OUTER 1
345-25197-90-00
|
$7.68 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 1
345-25196-90-00
|
$7.68 | ||
|
Unavailable |
|||
|
#3
275X21 DUN TRIUNI
94127-21332-00
|
$53.99 | ||
|
Unavailable |
|||
|
#4
TUBE 2.75/3.00-21
94225-21186-00
Superseded by 94227-21293-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 1.60X21
94416-21265-00
|
$266.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#7
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, DRIVE
37A-25135-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#16
PLATE, BRAKE SHOE
434-25121-02-00
|
$34.18 | ||
|
Unavailable |
|||
|
#17
CAMSHAFT
434-25151-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#18
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRAKESHOE SET-2PCS (326-25330-1
326-W2536-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#22
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#
LEVER, CAMSHAFT 1 (401-25155-00
401-25155-11-00
|
$32.99 | ||
|
Unavailable |
|||
|
#24
GEAR, METER
37A-25138-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG
90338-18014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
AXLE, WHEEL
401-25181-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-12100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-12095-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, CASTLE
90171-12005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BAR, TENSION
434-25171-01-00
|
$12.92 | ||
|
Unavailable |
|||
|
#37
BOLT
90109-08234-00
|
$1.98 | ||
|
Unavailable |
|||
|
#38
BOLT
90109-08380-00
|
$3.30 | ||
|
Unavailable |
|||
|
#39
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
