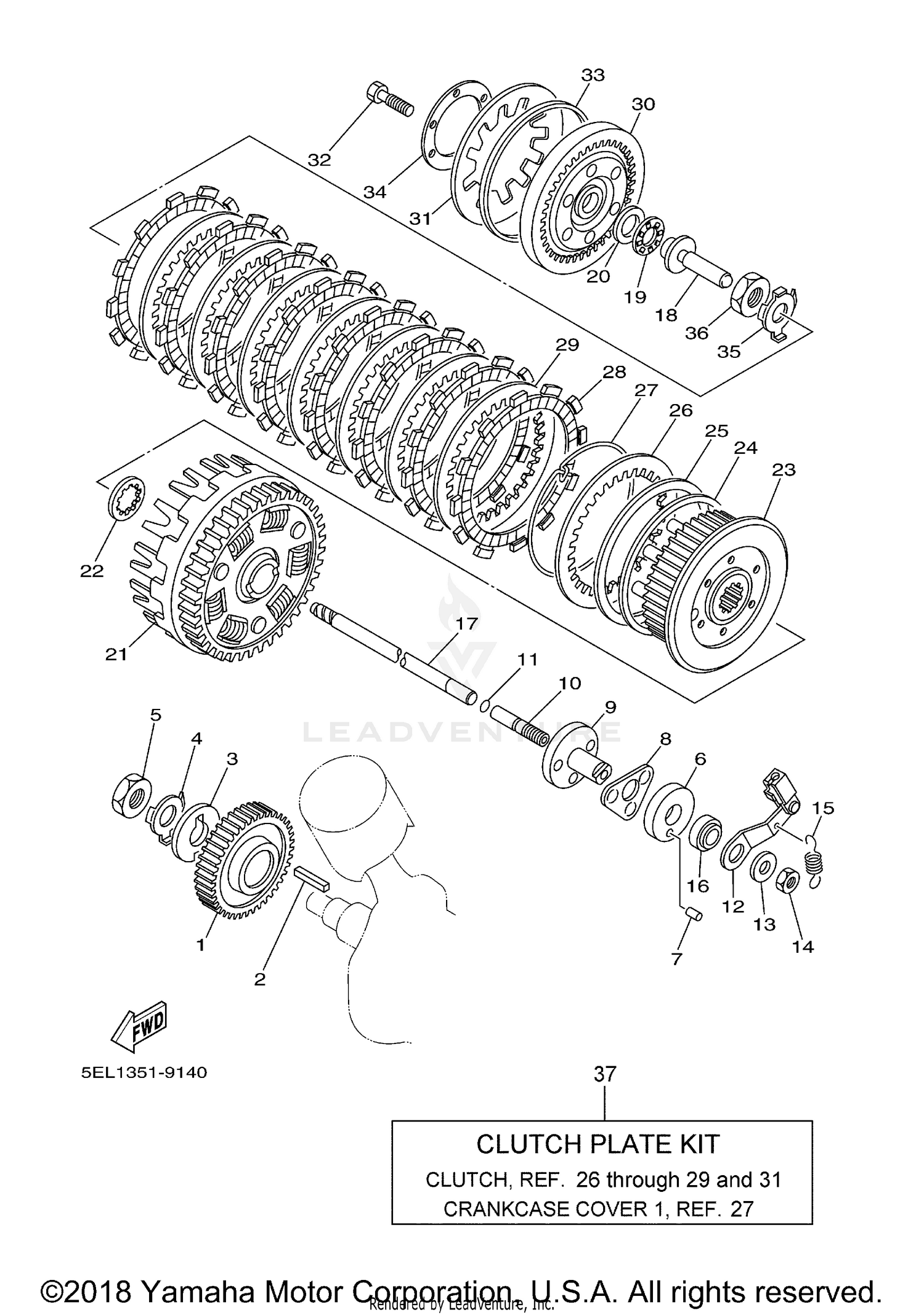

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE (47T)
4X7-16111-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, STRAIGHT
90282-07042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, CLAW
90214-20022-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK
90215-20182-00
Superseded by 90215-20006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90170-20274-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOUSING, PUSH SCREW
2H7-16396-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
93606-07082-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER, BALL
2H7-16395-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PUSH
2H7-16341-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, ADJUSTING
2H7-16343-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-48364-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PUSH LEVER ASSY
5EL-16340-00-00
Superseded by 5EL-16340-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
92907-08200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEX
95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TENSION
90506-10069-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
5EL-16357-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, PUSH 1
4X7-16356-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93340-21505-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-154E9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PRIMARY DRIVEN GEAR COMP.
4X7-16150-02-00
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, THRUST 1
2JN-16154-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOSS, CLUTCH
5EL-16371-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, SEAT
4X7-16384-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, CLUTCH BOSS
4X7-16383-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, CLUTCH 1
4X7-16324-00-00
Superseded by 4X7-16324-10-00
|
$10.49 | ||
|
Unavailable |
|||
|
#27
RING, CLUTCH BOSS
4X7-16385-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, FRICTION
22U-16321-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, CLUTCH 2
1TA-16325-00-00
Superseded by 1TA-16325-10-00
|
$10.49 | ||
|
Unavailable |
|||
|
#30
PLATE, PRESSURE 1
1TA-16351-01-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, CLUTCH 2
1TA-16334-00-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOUSING, SPRING
1TA-16335-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE, PRESSURE 2
1TA-16352-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, LOCK
90215-20231-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
90170-20327-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLUTCH PLATE KIT
5P9-W001G-00-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
