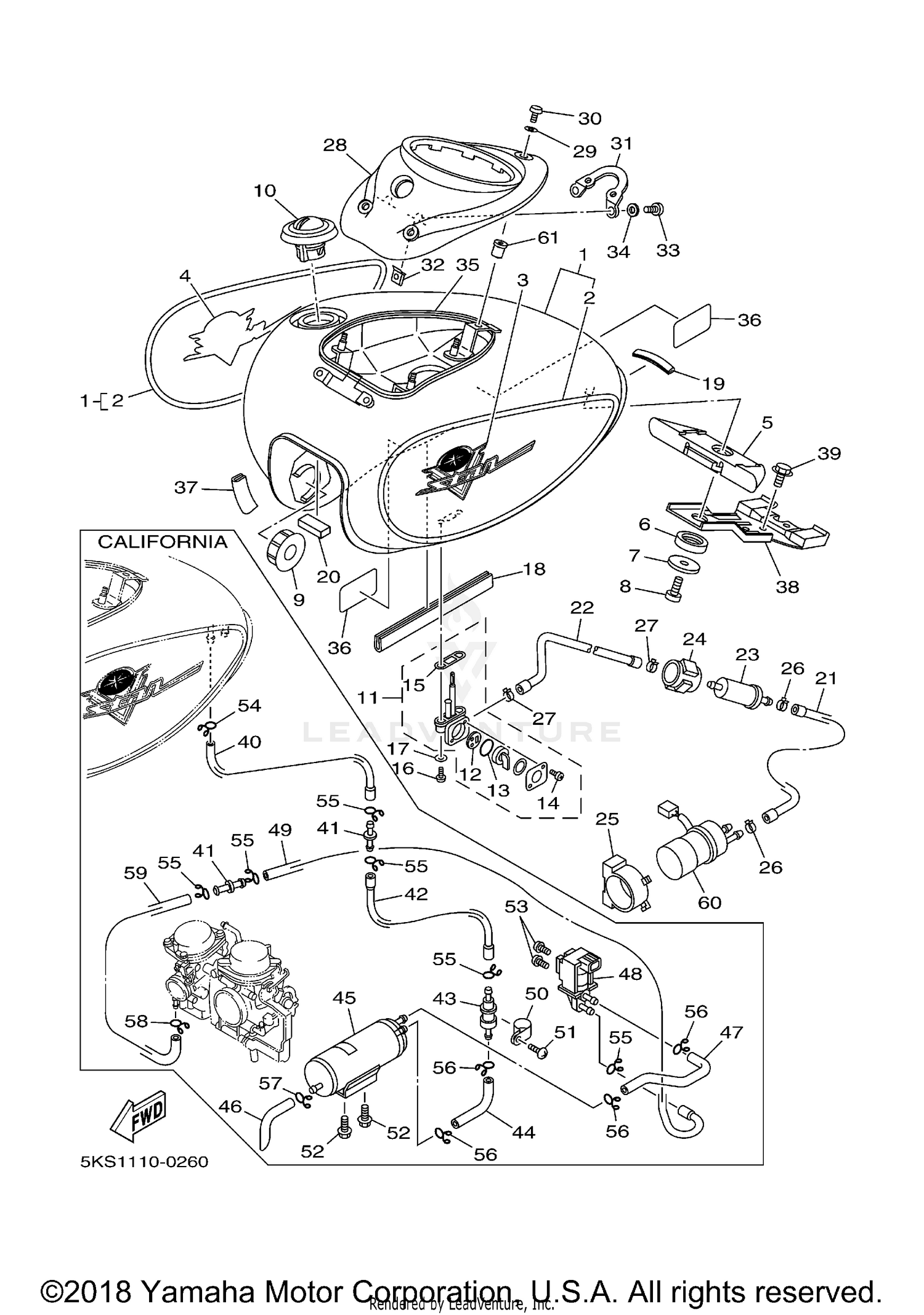

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5EL-Y2410-10-W2
|
$922.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
5EL-Y2410-10-W3
Superseded by 5EL-Y2410-T1-06
|
$919.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
5EL-Y2410-10-W4
|
$918.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
5EL-Y2410-30-08
Superseded by 5EL-Y2410-32-09
|
$828.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
5EL-Y2410-30-09
|
$1,124.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUEL TANK COMP.
5EL-Y2410-30-X1
|
$922.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
5KS-24240-40-00
|
$275.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
5EL-24240-90-00
|
$155.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
5KS-24240-50-00
|
$347.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM
5KS-2416B-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM
5KS-2417B-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 2
5EL-24182-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
4TR-24183-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-060S9-00
Superseded by 90201-06110-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92017-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 1
4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY
5BN-24602-02-00
Superseded by 5BN-24602-10-00
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY
4NK-24602-12-00
Superseded by 4NK-24602-20-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUEL COCK ASSY 1
4WM-24500-00-00
Superseded by 4WM-24500-10-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
MOLE, SIDE COVER 1
1FK-2171L-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
MOLD, FUEL TANK
5EL-24188-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER
3XV-21717-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, FUEL 1
5EL-24311-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 3
5EL-24313-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
UNAVAILABLE IN PRICE BOOK
1FK-24566-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND 1
4EB-24398-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, SCISSOR
90467-11028-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, TOP
5EL-2171A-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET, SEAT
5EL-2412F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SPRING
90183-05061-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
SEAL
5EL-2414G-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SEAL
4DN-21268-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
MOLD, FUEL TANK
5EL-24188-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
PLATE, FITTING
5EL-2411F-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE
95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE 10
5EL-24321-00-00
Superseded by 5EL-24321-10-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
JOINT
4XY-14568-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIPE 2
5EL-24312-00-00
|
$89.09 | ||
|
Unavailable |
|||
|
#43
ROLL OVER VALVE ASSY
4WM-24180-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIPE 4
5EL-24314-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#45
CANISTER ASSY
5EL-24170-00-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIPE 6
5EL-24316-00-00
Superseded by 5EL-24316-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE 7
5EL-24317-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
VALVE, OUTER VENT CONTROL 2
4WM-14896-00-00
|
$98.03 | ||
|
Available to order. Add to View Price |
|||
|
#49
PIPE 5
5EL-24315-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLAMP
90461-15139-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#51
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#53
SCREW, PAN HEAD
98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLIP
90467-07093-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#56
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLIP
90467-08017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
PIPE 11
5EL-24322-00-00
Superseded by 5EL-24322-10-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
LABEL, CAUTION
3YX-13907-01-00
Superseded by 3YX-13907-02-00
|
$326.99 | ||
|
Unavailable |
|||
|
#61
NUT
90179-05009-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
