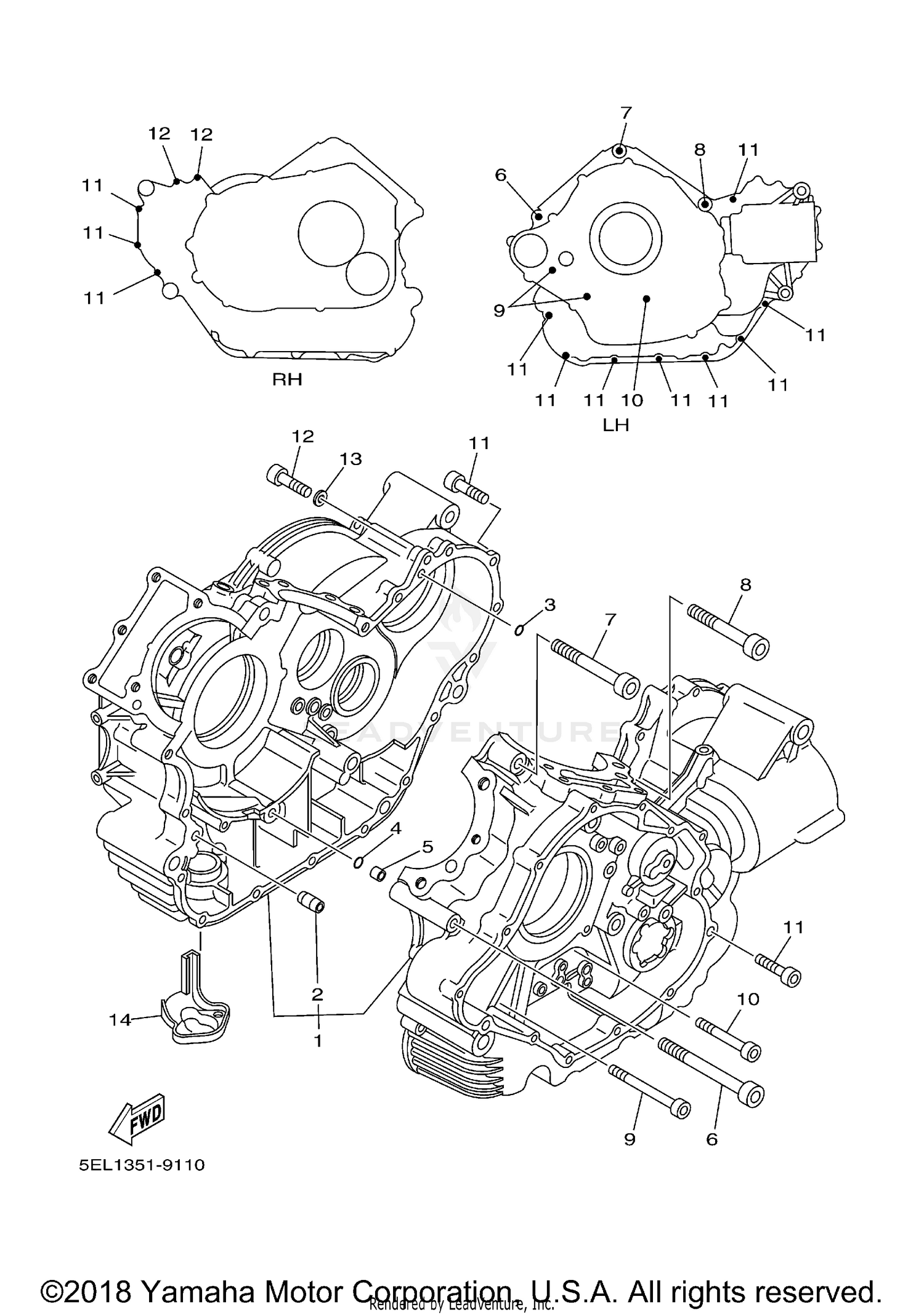

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5KS-15100-00-00
Superseded by 5KS-15100-01-00
|
$1,374.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL A
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-07135-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-07135-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
COLLAR
90387-06704-00
|
$2.95 | ||
|
Unavailable |
|||
|
#6
BOLT
91317-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-10070-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. SOCKET HEAD
91317-10060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91317-06080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR
4X7-15491-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
