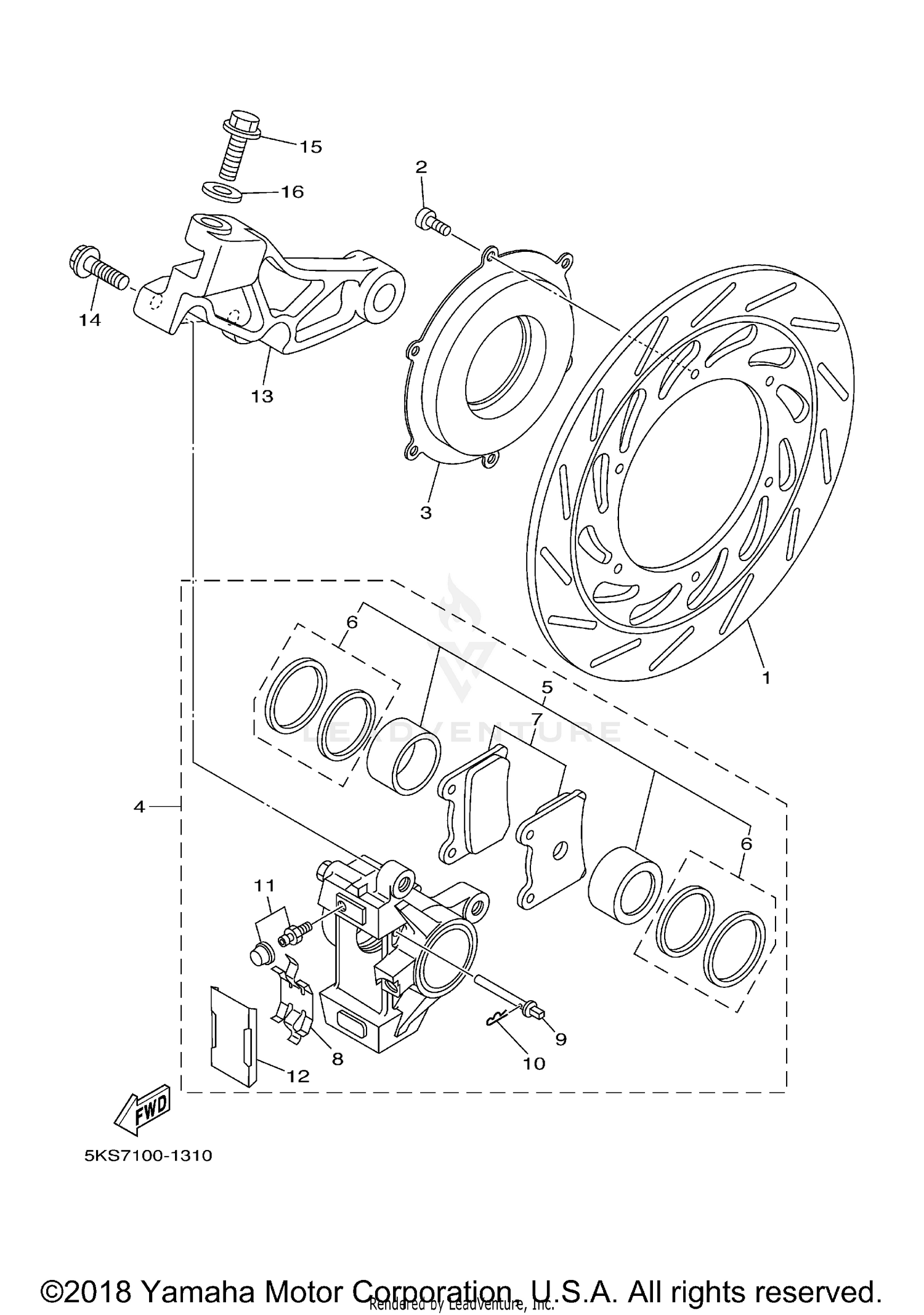

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
5KS-2582W-00-00
|
$315.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-08718-00
Superseded by 90111-08084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, WHEEL 2 (RIGHT)
5KS-2515A-10-00
Superseded by 5KS-2515A-20-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSY, REAR 2
5EL-2580W-00-00
Superseded by 5EL-2580W-01-00
|
$469.99 | ||
|
Unavailable |
|||
|
#5
PISTON ASSY, CALIPER
31A-W0057-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CALIPER SEAL KIT
31A-W0047-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE PAD KIT
3XF-W0045-50-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SUPPORT, PAD
1WG-25919-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, PAD
3HE-25924-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
3GM-25925-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, DUST
51J-25836-00-00
Superseded by 51J-25836-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#13
BRACKET, CALIPER
5EL-25819-01-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WASHER BASED
90105-10638-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-10010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
