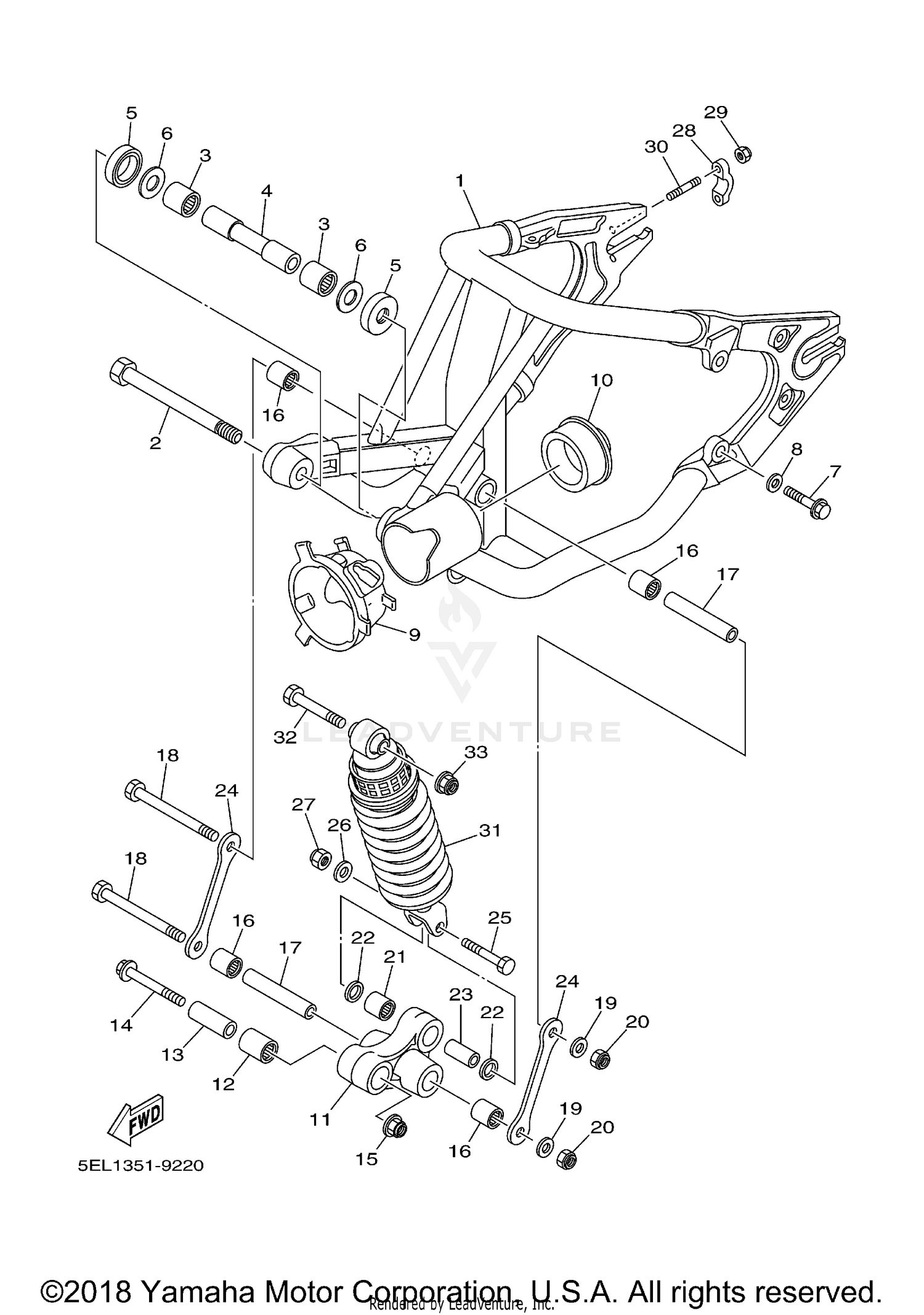

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5KS-22110-00-00
Superseded by 5KS-22110-02-00
|
$734.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, PIVOT
5EL-22141-00-00
Superseded by 5EL-22141-09-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93320-32403-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH 2
4X7-22124-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 2
5EL-22129-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-243U9-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-112U0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, RUBBER
5EL-22189-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
4VR-22184-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, RELAY
4KM-2217A-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93317-42060-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-100T8-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-10727-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93317-41761-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-126T1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-12673-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95617-12100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93317-31771-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-127W0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
ARM 1
2KT-2217M-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U
95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, HANDLE UPPER
1E6-23441-10-33
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SELF-LOCKING
90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, STUD
95627-08330-00
Superseded by 95617-08330-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHOCK ABSORBER ASSY, REAR
5KS-22210-21-00
|
$615.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-10453-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Unavailable |
|||
