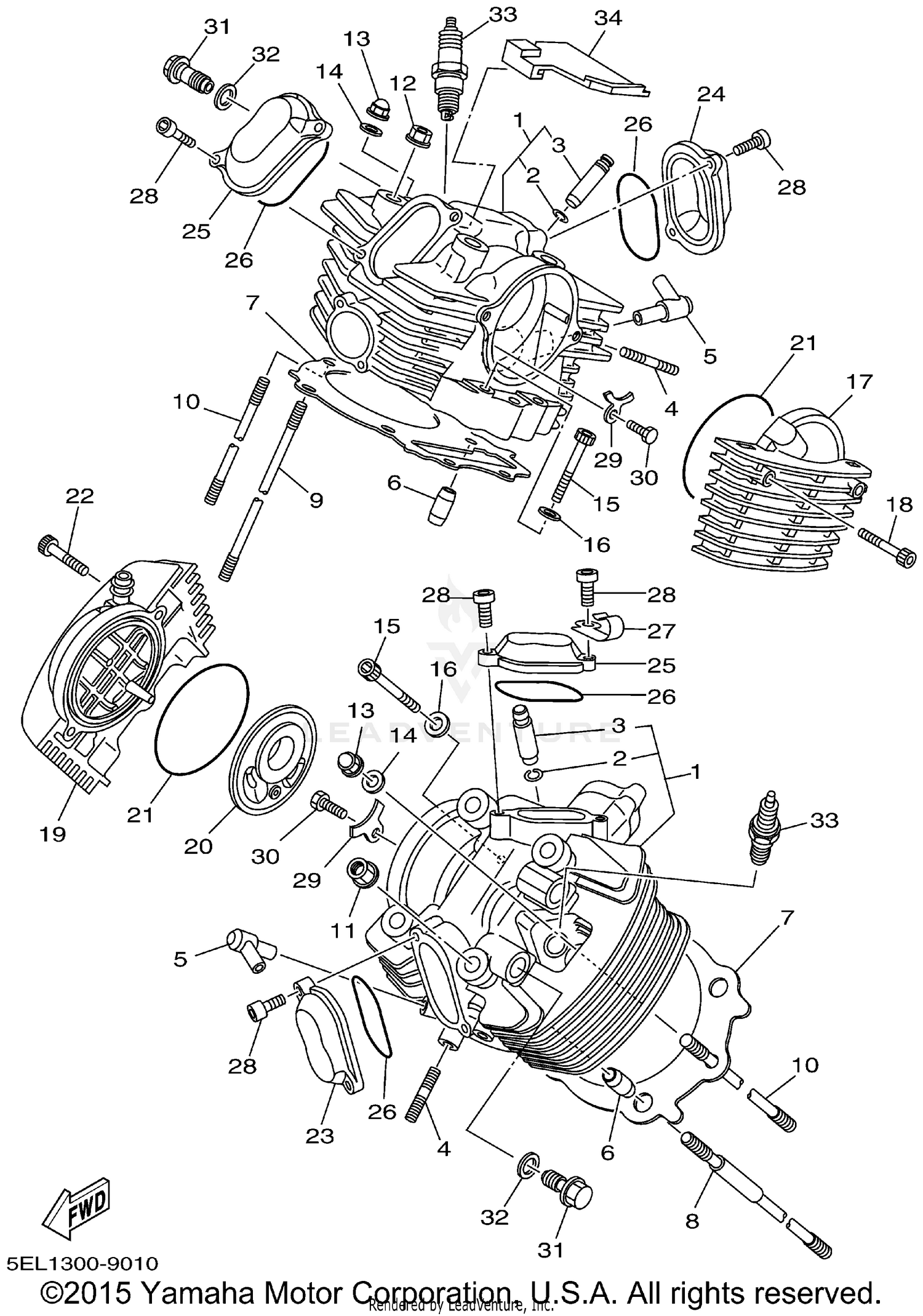

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5EL-11102-00-00
Superseded by 5EL-11101-01-00
|
$486.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CIRCLIP
93440-14086-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, IN./EX. VALVE
4X7-11133-10-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
95617-08625-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 5
5EL-14875-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#6
PIN, DOWEL
91817-30011-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD 1
5EL-11181-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CYLINDER HOLDING 3
4X7-11363-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
90116-12469-00
Superseded by 90116-12350-00
|
$11.49 | ||
|
Unavailable |
|||
|
#10
BOLT, STUD
90116-10344-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-12326-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90179-12325-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CROWN
90176-10075-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-101A4-00
Superseded by 90201-102G9-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91314-08050-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92907-08600-00
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD SIDE 4
5EL-1111H-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, CYLINDER HEAD SIDE 1
5EL-11185-00-00
|
$151.99 | ||
|
Unavailable |
|||
|
#20
PLATE, BREATHER
42X-11165-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-92448-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$7.99 | ||
|
Unavailable |
|||
|
#23
COVER, CYLINDER HEAD SIDE 2
42H-11186-01-00
Superseded by 42H-11186-02-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, CYLINDER HEAD SIDE 3
5EL-11187-00-00
Superseded by 5EL-11187-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, CYLINDER HEAD SIDE 3
4X7-11187-01-00
Superseded by 4X7-11187-02-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-62446-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90465-10264-00
|
$8.99 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE
4X7-1111F-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
97017-08020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, UNION
90401-16065-00
|
$13.49 | ||
|
Unavailable |
|||
|
#32
GASKET
90430-17168-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUG,SPARK(W22EPRU
94701-00220-00
|
|||
|
Unavailable |
|||
|
#
BPR7ES NGK - 4/PACK
94701-00218-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
|
#34
COVER
5EL-1112M-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
