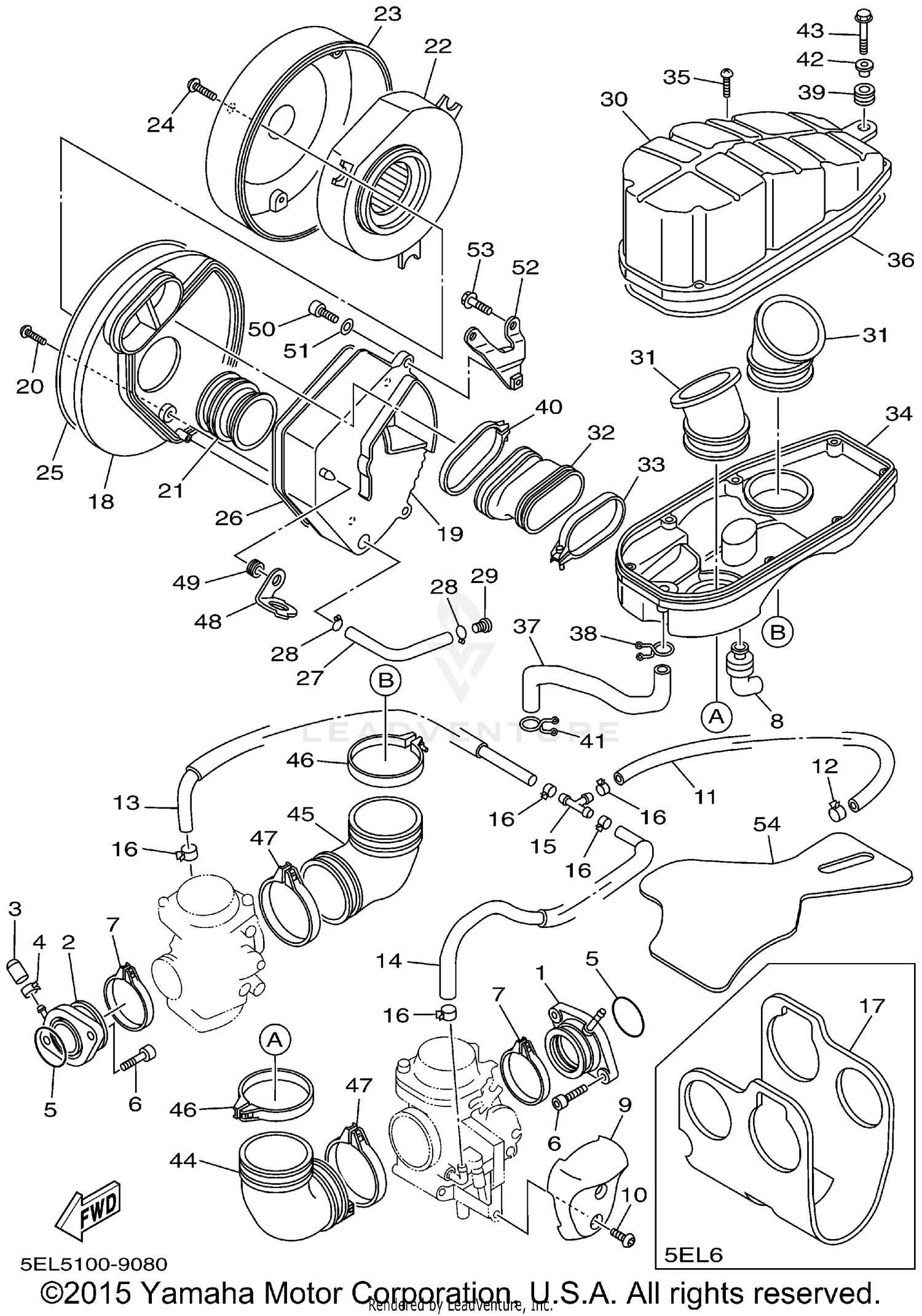

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
5EL-13586-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, CARBURETOR 2
5EL-13596-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, BLIND
16G-13569-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
90467-10039-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-44545-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91317-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND
5EL-13474-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
5EL-14987-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, CARBURETOR 1
5EL-14283-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BUTTON HEAD
92014-05012-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE
5EL-14294-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-12191-00
Superseded by 90467-11044-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE
5EL-14349-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE 1
5EL-14348-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WAY 3
90413-07007-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-10135-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE
5EL-14477-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CASE, AIR CLEANER 1
5EL-14411-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER 1
5EL-14417-00-00
Superseded by 5EL-14417-02-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING
97707-50116-00
Superseded by 97707-50516-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUCT
5EL-14437-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ELEMENT, AIR CLEANER
5EL-14451-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CASE, AIR CLEANER 2
5EL-14421-10-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, BUTTON HEAD
92014-05012-00
|
$3.69 | ||
|
Unavailable |
|||
|
#25
SEAL
4TR-14452-00-00
Superseded by 51Y-14462-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL
5EL-14452-00-00
Superseded by 51Y-14462-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#27
PIPE
5EL-14148-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-11106-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG
90338-08174-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SILENCER, INTAKE 1
5EL-14431-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
JOINT
5EL-14454-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT, AIR FILTER 1
5EL-1440F-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND
5EL-14455-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SILENCER, INNER
5EL-14432-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, TAPPING
97707-50125-00
Superseded by 97707-50525-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SEAL
5EL-14462-00-00
Superseded by 51Y-14462-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#37
PIPE, BREATHER 1
5EL-11166-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
90467-14015-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GROMMET
90480-12314-00
Superseded by 90480-12497-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAND
5EL-14455-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#41
CLIP
90467-14015-00
|
$7.99 | ||
|
Unavailable |
|||
|
#42
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95817-06020-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#44
JOINT, AIR CLEANER 1
5EL-14453-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
JOINT, AIR CLEANER 2
5EL-14463-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOSE CLAMP ASSY
90450-72095-00
Superseded by 90450-72003-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE CLAMP ASSY
90450-63096-00
Superseded by 90450-63002-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
STAY 2
5EL-14499-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT
91317-06020-00
|
$6.99 | ||
|
Unavailable |
|||
|
#51
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#52
STAY 2
5EL-14414-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT,FLANGE
95817-06010-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#54
PROTECTOR, HEAT
5EL-12682-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
