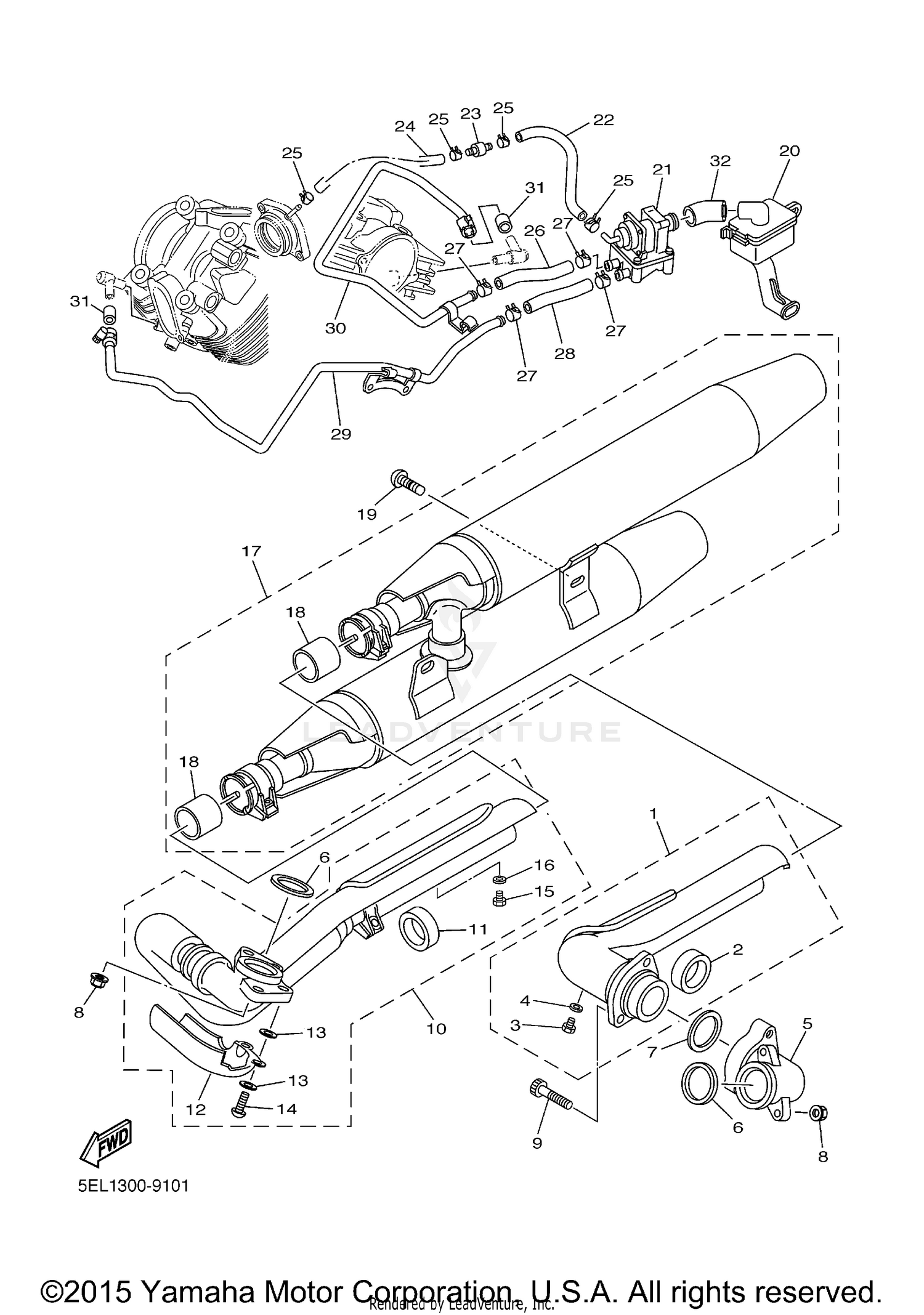

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
5EL-14610-00-00
Superseded by 5EL-14610-10-00
|
$303.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, MUFFLER
4NK-14714-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-06576-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, EXHAUST 1
5EL-14615-00-00
Superseded by 5EL-14615-01-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
3EG-14613-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EXHAUST PIPE
4TR-14613-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-08097-00
Superseded by 90185-08146-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91314-08035-00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
EXHAUST PIPE ASSY 2
5EL-14620-00-00
|
$472.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER
4NK-14714-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#12
COVER, EXHAUST
5EL-14624-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90202-05191-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BIND
98904-06014-00
Superseded by 98980-06014-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90101-06576-00
|
$7.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#17
MUFFLER ASSY 1
5EL-14710-20-00
Superseded by 5EL-14710-50-00
|
$1,104.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, SILENCER
3XW-14755-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, BUTTON HEAD
92017-10020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
AIR FILTER
5EL-14806-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
AIR INDUCTION SYSTEM ASSY
5EL-14803-00-00
Superseded by 5EL-14803-10-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, VACUUM SENSING 2
5EL-13544-00-00
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
NOZZLE
41R-14489-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, VACUUM SENSING 5
5EL-13542-00-00
Superseded by 4BH-13534-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#25
CLIP
90467-08092-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, BEND 2
5EL-14882-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90468-08104-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE, BEND 4
5EL-14884-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE 2
5EL-14872-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE 1
5EL-14871-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET, MUFFLER
42H-14714-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE, BEND 1
5EL-14881-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
