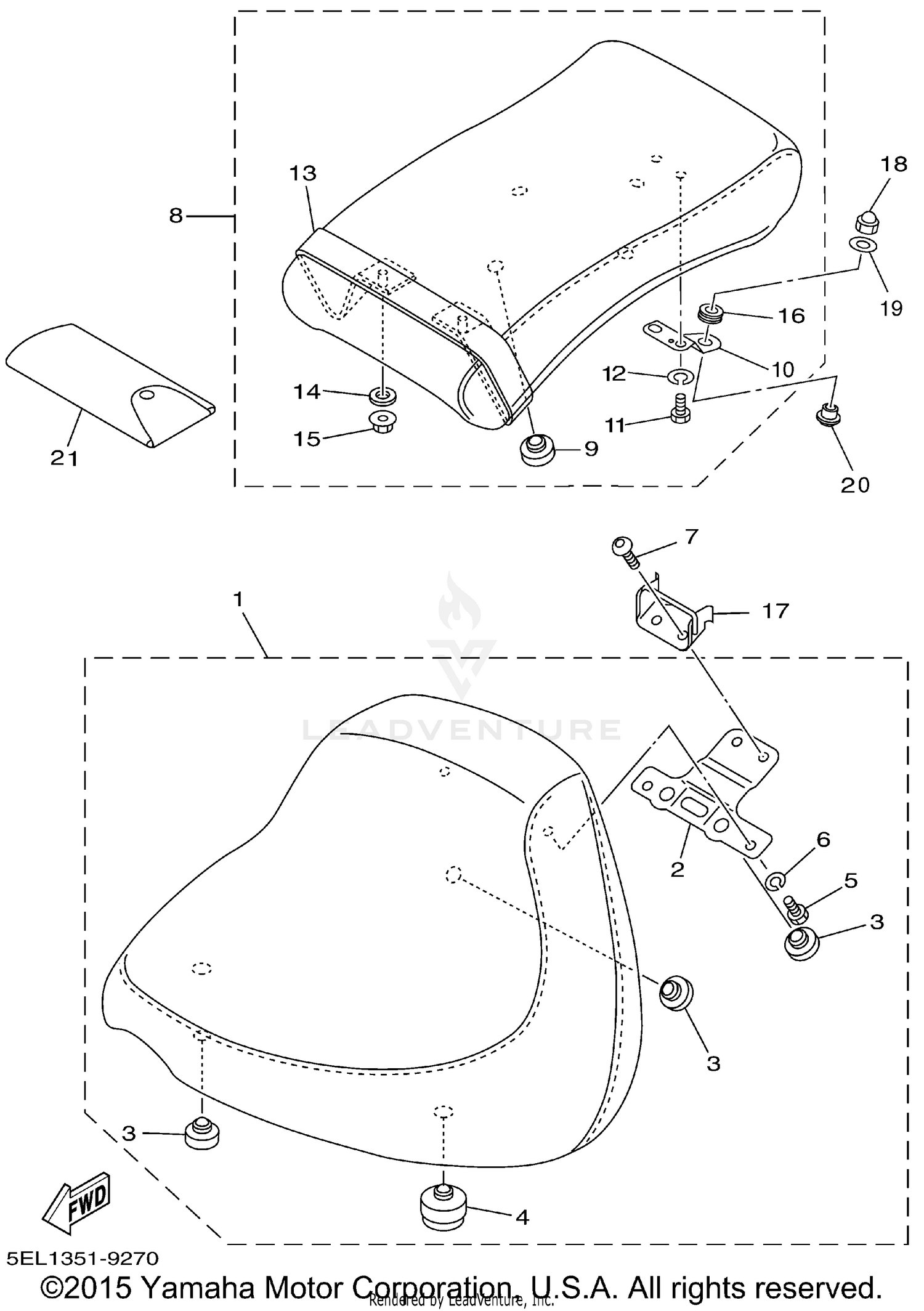

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5EL-24710-00-00
|
$401.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SEAT LEVER 1
5EL-2475H-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD, SEAT
1T4-24741-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, BUTTON HEAD
92017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANDEM SEAT ASSY
5EL-24750-10-00
|
$233.99 | ||
|
Unavailable |
|||
|
#9
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
BRACKET, SEAT LEVER 2
5PB-2475J-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#13
BAND, SEAT
5EL-24734-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#14
WASHER PLAIN
90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
5YS-24742-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET
5EL-2475N-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CROWN
90176-08001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08042-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR 2
5PB-2471M-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TOOL KIT
5EL-28100-00-00
|
$92.99 | ||
|
Unavailable |
|||
