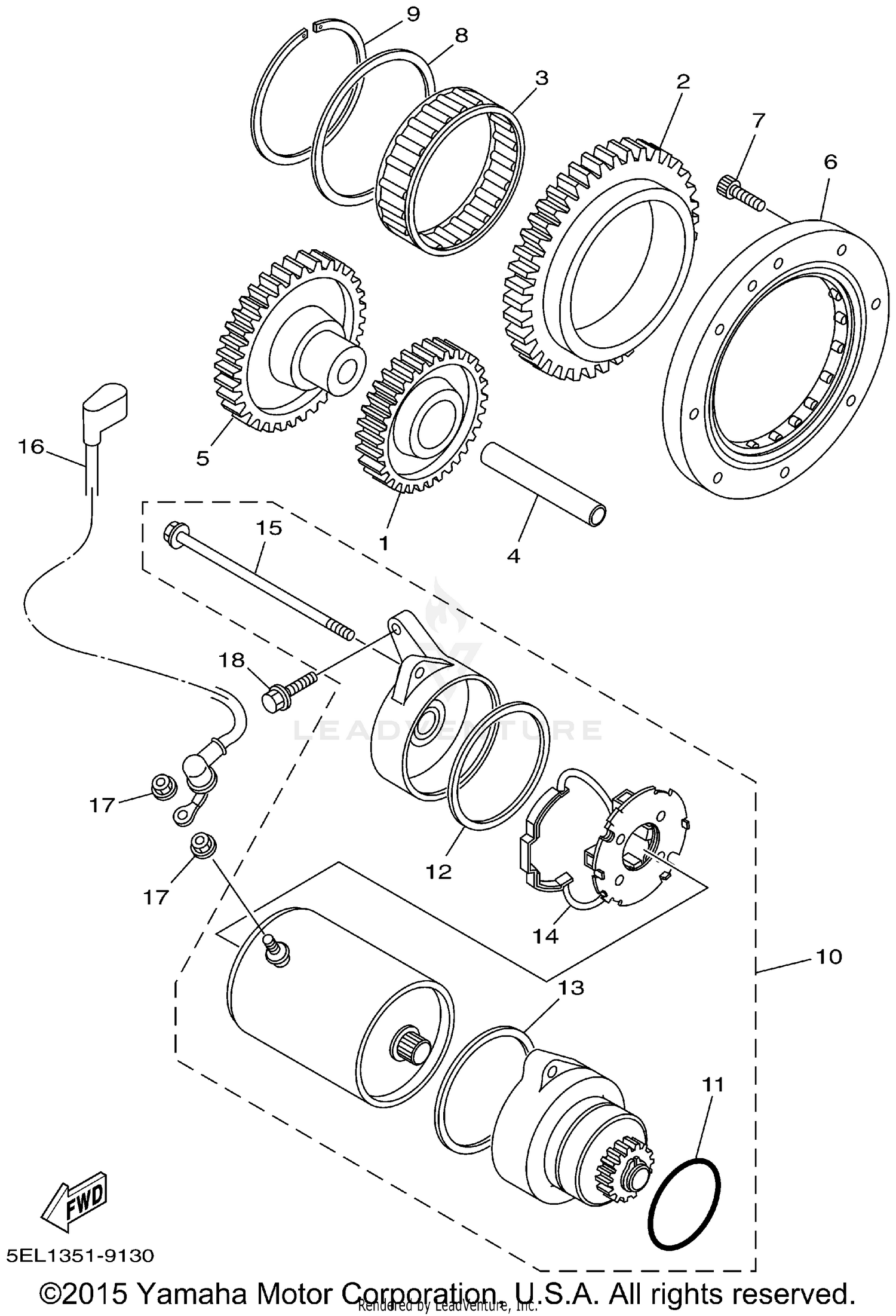

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR 3
5EL-15515-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR SUB-ASSY
5EL-15517-00-00
Superseded by 5EL-W155B-30-00
|
$751.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93310-5720G-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT 1
24W-15521-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, IDLER 1
5EL-15512-00-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STARTER ONE-WAY ASSY
5EL-15590-00-00
Superseded by 99999-03908-00
|
$814.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-723U3-00
Superseded by 90201-72008-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93440-68180-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
MOTOR ASSY
5EL-81890-00-00
Superseded by 5EL-81890-01-00
|
$405.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
1J7-81847-60-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
11H-81844-00-00
Superseded by 35C-81844-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
4G0-81844-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRUSH HOLDER ASSY
5A8-81840-10-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
3KM-81826-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#16
CORD, STARTER MOTOR
5EL-81815-00-00
Superseded by 5JN-81815-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
4XV-8182A-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95814-06025-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
