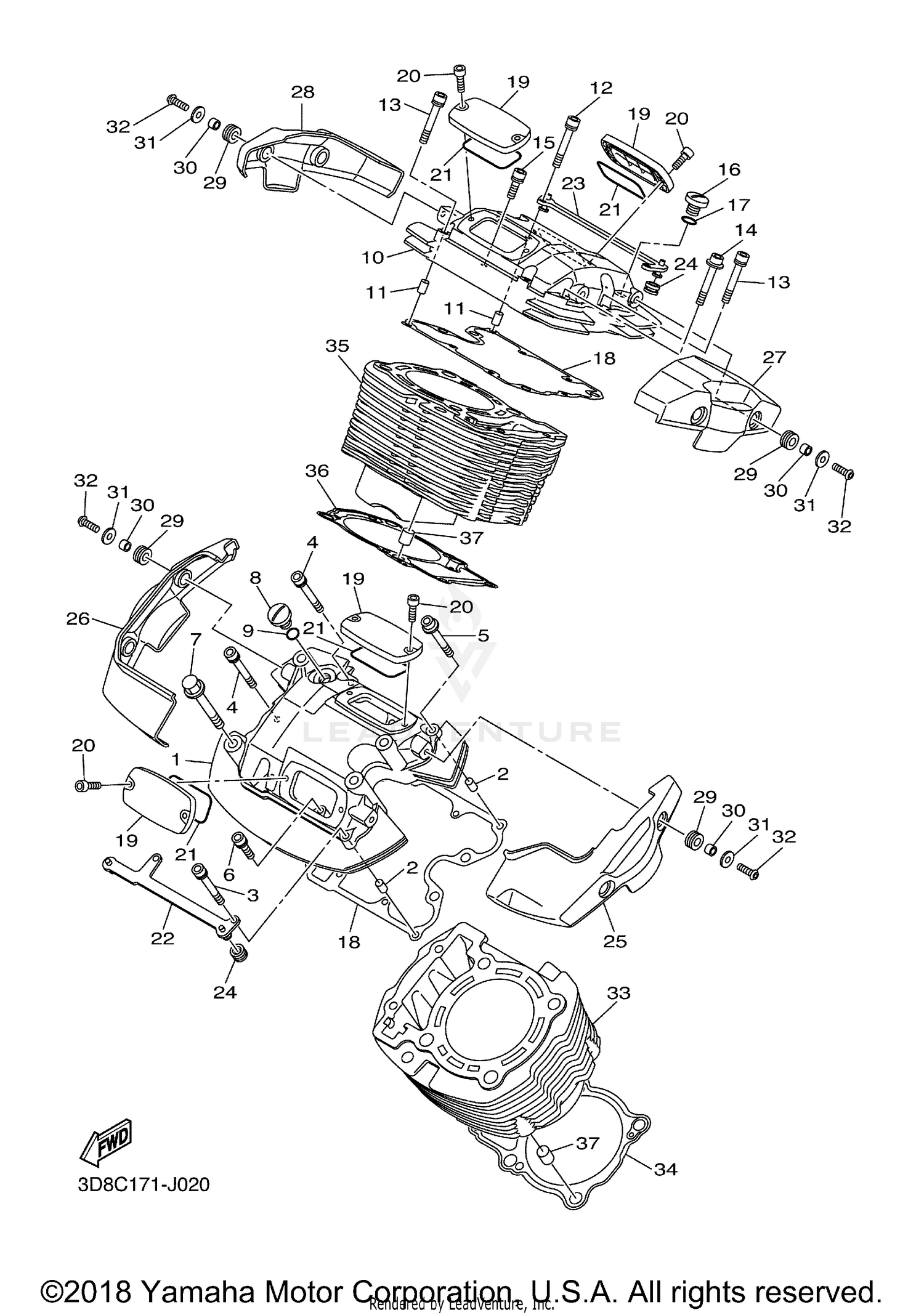

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER HEAD 1
3D8-11191-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-06269-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06268-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-06166-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-06267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95812-10090-00
Superseded by 95817-10090-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-14117-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, CYLINDER HEAD 2
3D8-11192-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-06269-00
|
$3.40 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-06268-00
|
$2.40 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-06166-00
|
$3.95 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06267-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
PLUG, STRAIGHT SCREW
90340-14117-00
|
$13.49 | ||
|
Unavailable |
|||
|
#17
O-RING
93210-14369-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
GASKET, HEAD COVER 1
3D8-11193-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, CYLINDER HEAD SIDE 2
27D-11186-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, CYLINDER HEAD SIDE
3D8-11196-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE 2
3D8-1112F-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE 3
3D8-1113F-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-10334-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER 1
3D8-1111M-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER 2
3D8-1111N-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER 3
3D8-1111P-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER 4
3D8-1111R-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROMMET
90480-13022-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-06207-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-06088-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
CYLINDER 1
3D8-11311-01-00
|
$626.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET, CYLINDER
3D8-11351-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CYLINDER 2
3D8-11321-01-00
|
$626.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
GASKET, CYLINDER 2
3D8-11352-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
