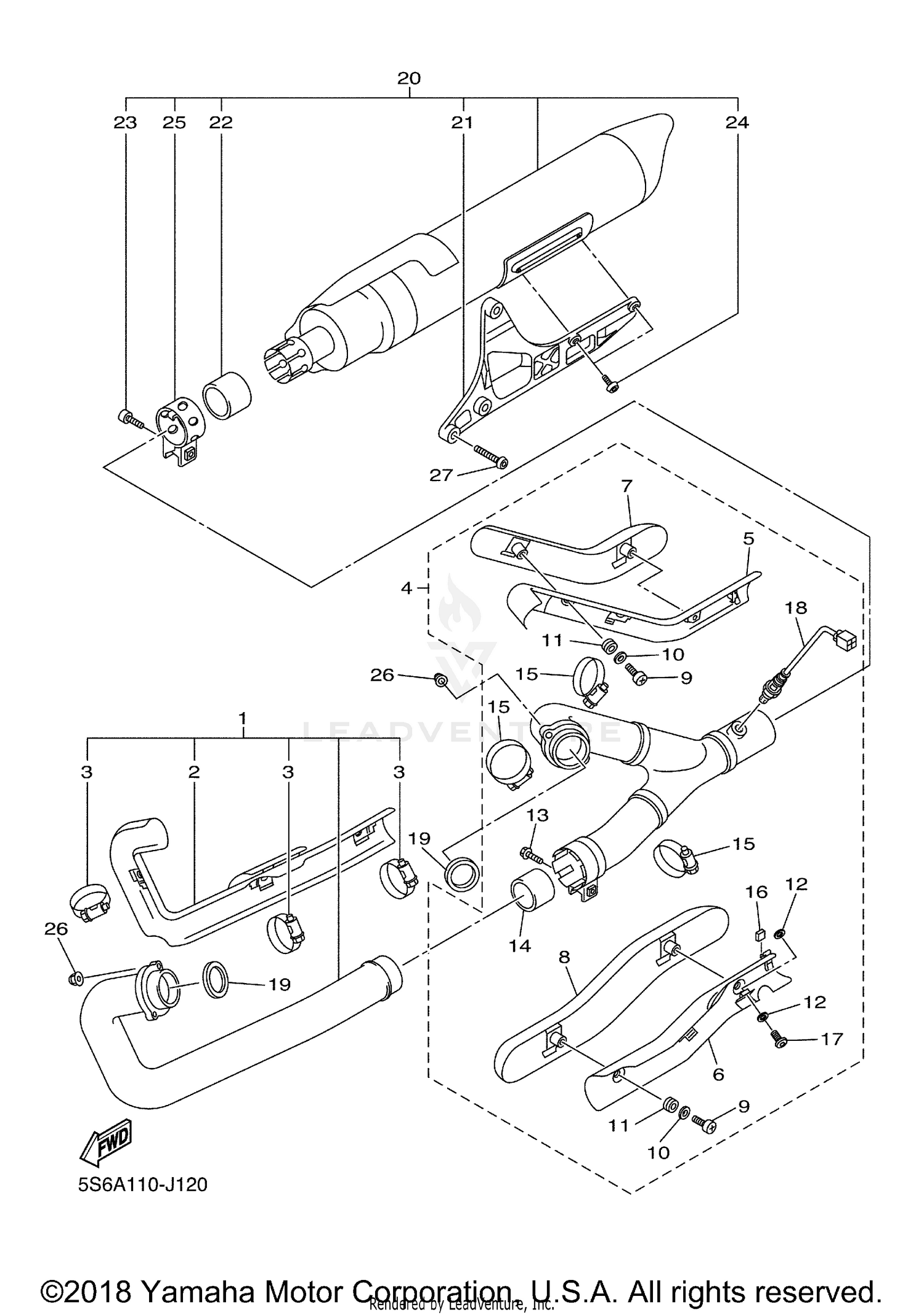

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
3D8-14610-20-00
|
$396.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, MUFFLER 1
3D8-14718-10-00
|
$308.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-44001-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
EXHAUST PIPE ASSY 2
3D8-14620-20-00
|
$719.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER COMP. 2
3D8-14728-10-00
Superseded by 3D8-W1472-10-00
|
$268.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, MUFFLER 3
3D8-14738-10-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, MUFFLER 4
3D8-14748-10-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, EXHAUST PIPE
3D8-14628-10-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, BIND
98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-064K6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-17005-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-05015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91314-08035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, SILENCER
5PX-14755-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE CLAMP ASSY
90450-44001-00
|
$15.99 | ||
|
Unavailable |
|||
|
#16
DAMPER, LOCATING 1
3MA-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, BIND
98980-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR, OXYGEN
5D1-8592A-00-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, EXHAUST PIPE
3EG-14613-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
MUFFLER ASSY 1
3D8-14710-20-00
|
$1,425.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, MUFFLER 2
3D8-14772-00-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, MUFFLER
5VY-14714-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91314-08035-00
|
$2.10 | ||
|
Unavailable |
|||
|
#24
BOLT, HEX. SOCKET BUTTON
90111-10006-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, MUFFLER
3D8-14715-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CROWN
90176-08006-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. SOCKET BUTTON
90111-10032-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
