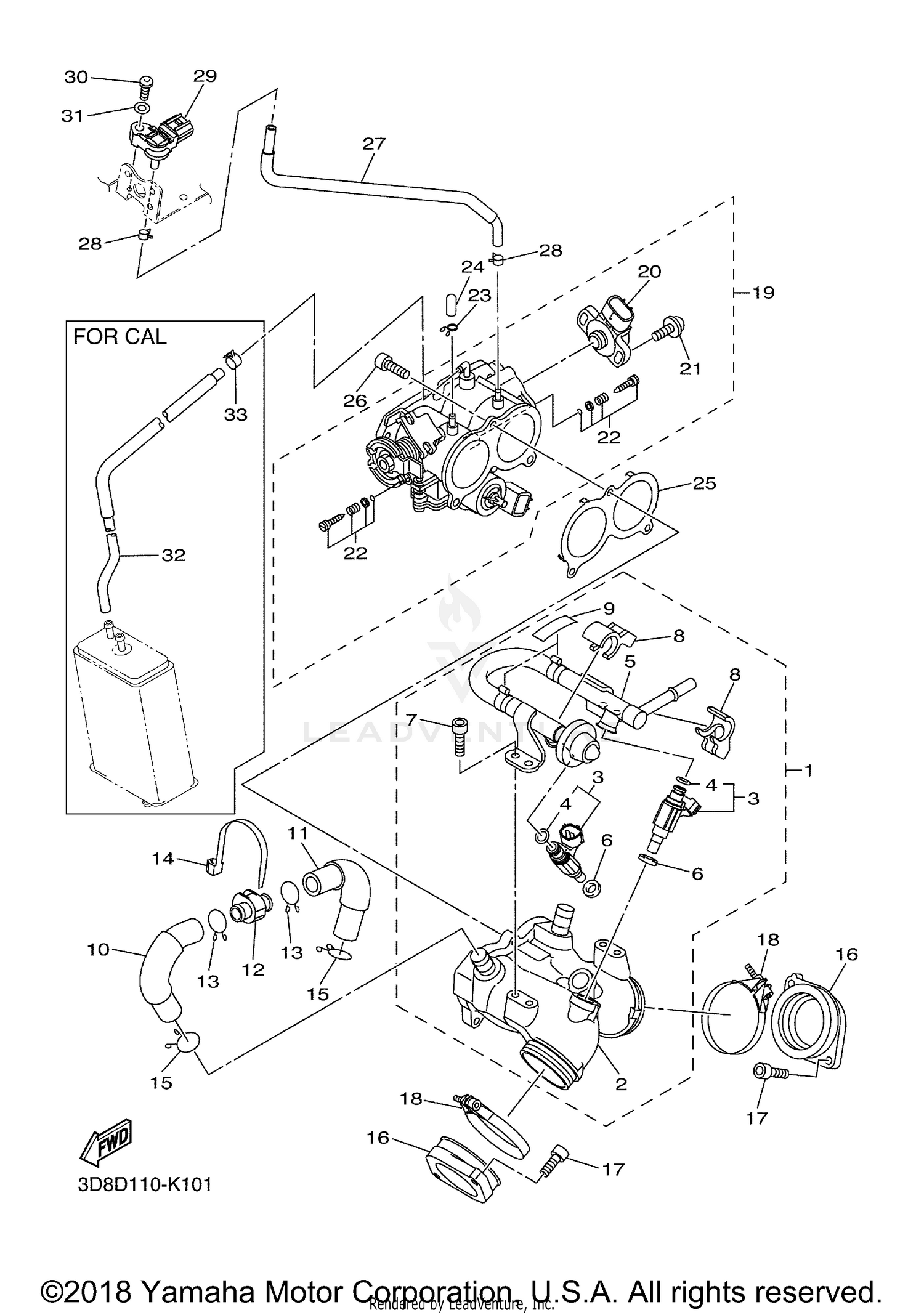

Intake 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR JOINT ASSY
3D8-13590-30-00
|
$536.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
MANIFOLD
3D8-13640-00-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INJECTOR
3D8-13761-00-00
|
$241.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
5FL-14147-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE INLET ASSEMBLY
3D8-13930-00-00
Superseded by 3D8-13930-10-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, INJECTOR
8FP-13556-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER
3D8-14261-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
3D8-1442F-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, SILENCER
3D8-1441J-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, SILENCER 2
3D8-1442J-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
3D8-14862-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-18196-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-18196-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
JOINT, CARBURETOR 1
3D8-13586-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-59008-00
Superseded by 90450-62006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
THROTTLE BODY ASSY
3D8-13750-40-00
Superseded by 3D8-13750-42-00
|
$601.99 | ||
|
Unavailable |
|||
|
#
THROTTLE BODY ASSY
3D8-13750-50-00
|
$607.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
. .THROTTLE SENSOR ASSY
8GL-85885-00-00
Superseded by 8GL-85885-01-00
|
$86.99 | ||
|
Unavailable |
|||
|
#21
SCREW
4KM-24453-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
AIR SCREW SET
3D8-14104-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, PIPE
8A7-14139-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP
895-14169-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL
3D8-14467-00-00
Superseded by BL3-14467-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Unavailable |
|||
|
#27
HOSE, AIR 2
3D8-13892-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-07093-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
SENSOR, PRESSURE
5S7-82380-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE
3D8-14148-10-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-09037-00
Superseded by 90467-09120-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
