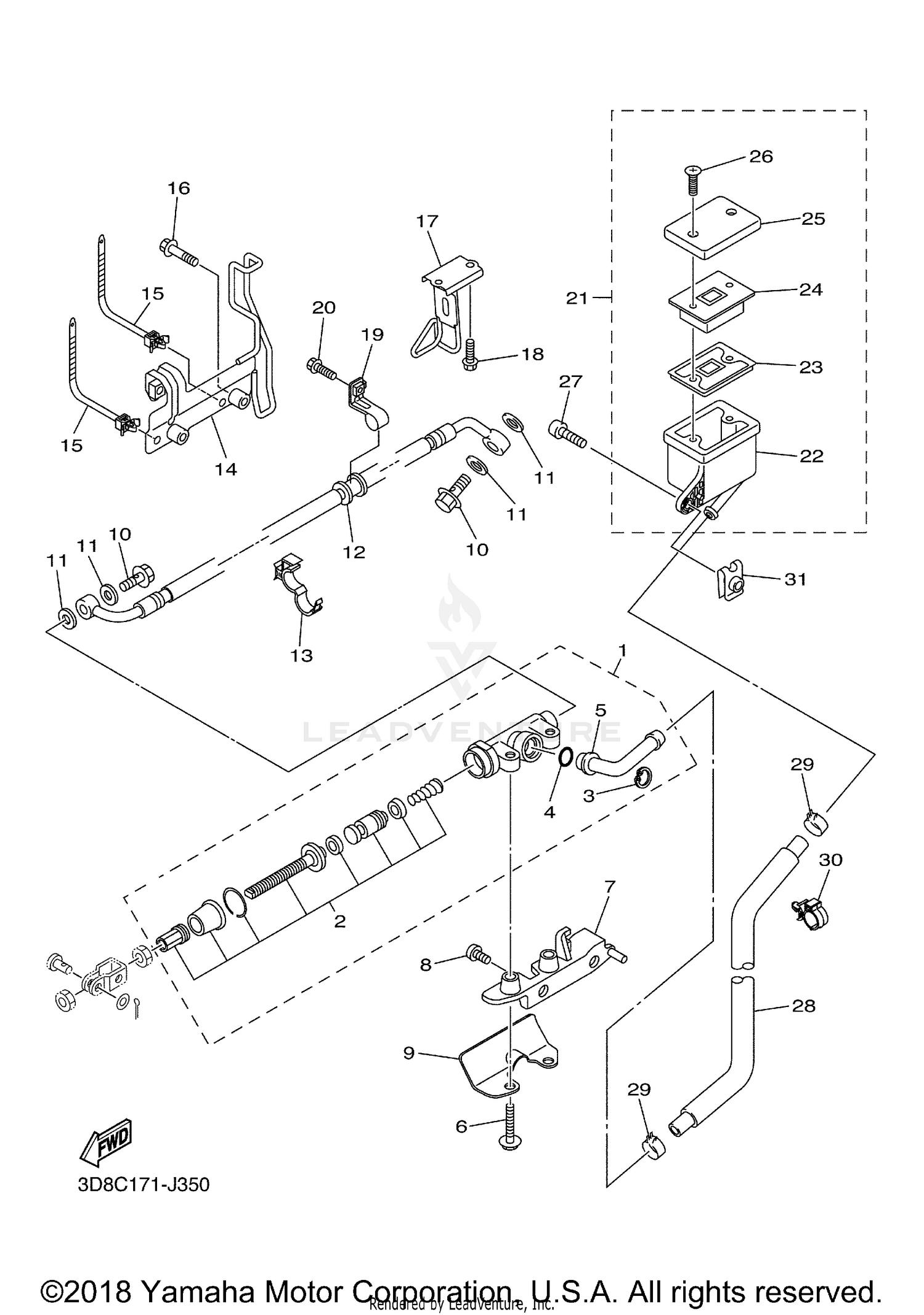

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR MASTER CYLINDER ASSY.
3D8-2583V-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5EL-W0042-50-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
2VN-25866-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT
2VN-2582A-50-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (SMALL HEAD)
95024-08035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
5EL-25867-01-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92014-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
5EL-27491-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, UNION
90401-10020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, BRAKE 4
3D8-2581J-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, FUEL PIPE
3D8-21374-10-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95022-06020-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, BRAKE HOSE
3D8-2587A-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, BRAKE HOSE 5
3D8-2588F-11-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Unavailable |
|||
|
#21
RESERVE TANK ASSY
5YU-25804-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
TANK, RESERVOIR
5YU-25894-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DIAPHRAGM, RESERVOIR
55U-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, DIAPHRAGM
3GM-2585B-20-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP, RESERVOIR
5YU-25852-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, FLAT HEAD
98706-04040-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
90111-06008-00
Superseded by 92014-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE, RESERVOIR
3D8-25895-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-12191-00
Superseded by 90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-16012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
