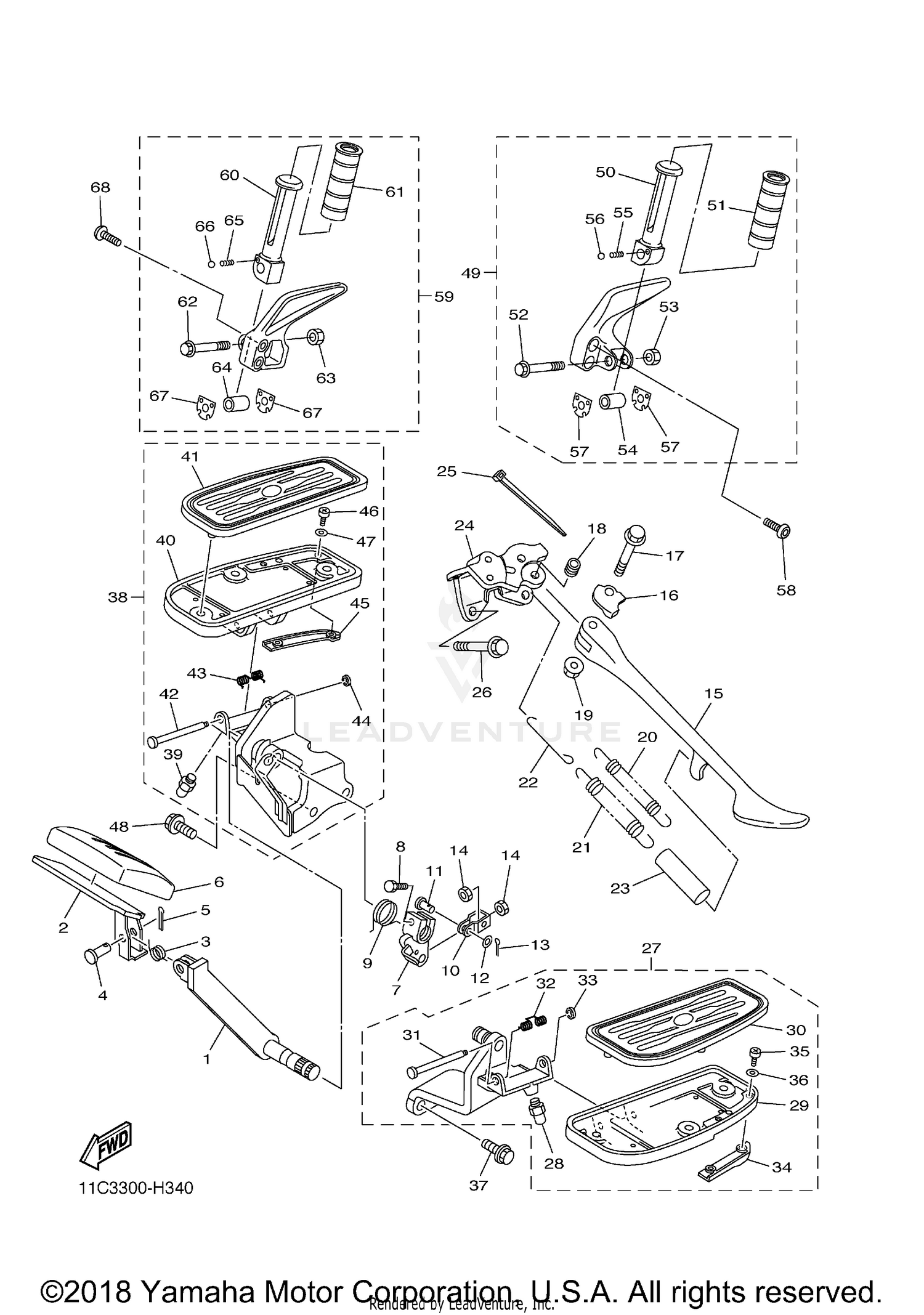

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5KS-27211-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, BRAKE
4NK-27242-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-18023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
91702-06022-00
Superseded by 91701-06022-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
1D7-27285-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
5EL-27262-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97004-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, RETURN
3D8-27216-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT
4BP-27222-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, CLEVIS
90240-08124-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Unavailable |
|||
|
#14
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAND, SIDE
4KU-27311-13-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
3D8-27322-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-1003G-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, TENSION
90506-23015-00
Superseded by 90506-23490-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TENSION
90506-29006-00
Superseded by 90506-29507-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
LINK, SIDE STAND
3D8-27315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE (L60)
90445-16641-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, SIDE STAND
3D8-27321-00-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
90105-10157-00
Superseded by 90105-10158-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FRONT FOOTREST ASSY (LEFT)
3D8-27410-00-00
|
$301.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FRONT FOOTREST ASSY (LEFT)
3D8-27410-10-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
5PX-27435-09-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
FOOTREST
4NK-27451-10-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, FOOTREST
4XY-27413-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHAFT
3D8-27427-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, RETURN
1D7-27426-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP
99002-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#34
MOLE 1
4WM-27496-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN HEAD
90157-05026-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLAIN
92902-05200-00
Superseded by 92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
90105-10236-00
Superseded by 90105-102A3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
FRONT FOOTREST ASSY (RIGHT)
3D8-27420-00-00
|
$301.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
5PX-27435-09-00
|
$17.99 | ||
|
Unavailable |
|||
|
#40
FOOTREST
4NK-27461-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER, FOOTREST
4XY-27423-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SHAFT
3D8-27427-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
SPRING, RETURN
1D7-27426-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
CIRCLIP
99002-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Unavailable |
|||
|
#45
MOLE 2
4WM-27497-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW, PAN HEAD
90157-05026-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Unavailable |
|||
|
#47
WASHER, PLAIN
92902-05200-00
Superseded by 92990-05200-00
|
$4.65 | ||
|
Unavailable |
|||
|
#48
BOLT, FLANGE
90105-10236-00
Superseded by 90105-102A3-00
|
$9.49 | ||
|
Unavailable |
|||
|
#49
REAR FOOTREST ASSY 1
3D8-27430-10-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
FOOTREST, REAR 1
1D7-27431-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
COVER, REAR FOOTREST
4WM-27433-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT
90109-06016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
NUT, U FLANGE
95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
COLLAR, LEVER 1
90387-06554-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
SPRING, COMPRESSION
90501-15001-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#56
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
WASHER, SPECIAL
1D7-27437-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT,HEX. SOCKET BUT
90111-08044-00
Superseded by 90111-08045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
REAR FOOTREST ASSY 2
3D8-27440-10-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
FOOTREST, REAR 2
1D7-27441-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
COVER, REAR FOOTREST
4WM-27433-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#62
BOLT
90109-06016-00
|
$8.49 | ||
|
Unavailable |
|||
|
#63
NUT, U FLANGE
95604-06200-00
|
$7.49 | ||
|
Unavailable |
|||
|
#64
COLLAR, LEVER 1
90387-06554-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#65
SPRING, COMPRESSION
90501-15001-00
|
$2.05 | ||
|
Unavailable |
|||
|
#66
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#67
WASHER, SPECIAL
1D7-27437-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#68
BOLT,HEX. SOCKET BUT
90111-08044-00
Superseded by 90111-08045-00
|
$6.49 | ||
|
Unavailable |
|||
