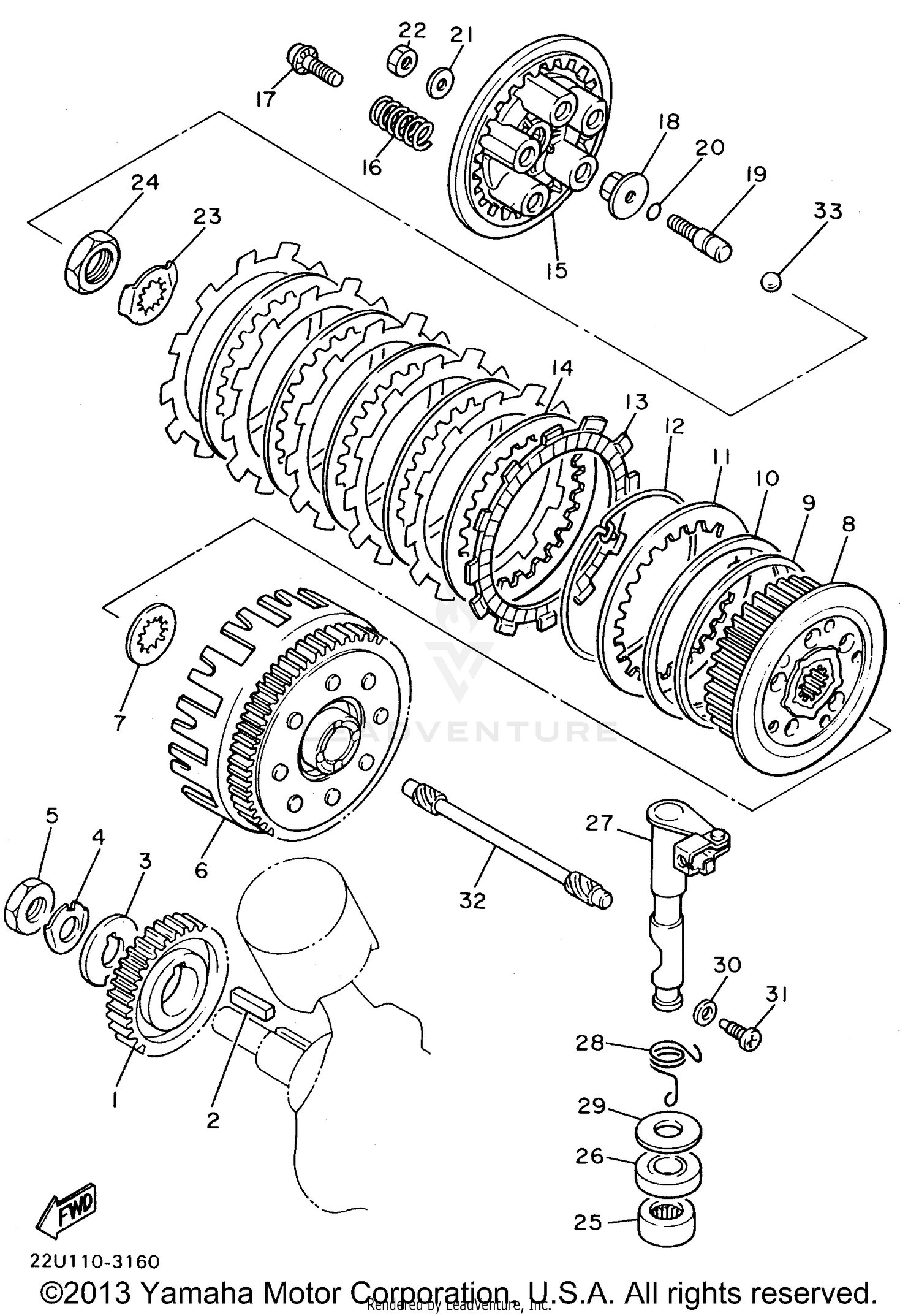

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR,PRI DRIVE
22U-16111-01-00
Superseded by 4KU-16111-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#2
KEY, WOODRUFF
90280-07036-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, CLAW
90214-16026-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK
90215-16222-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90170-16311-00
Superseded by 90170-16343-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PRIMARY DRIVEN GEAR COMP.
22U-16150-01-00
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, THRUST 1
22U-16154-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOSS, CLUTCH
22U-16371-00-00
Superseded by 22U-16371-02-00
|
$110.99 | ||
|
Unavailable |
|||
|
#9
PLATE, SEAT
4X7-16384-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH BOSS
4X7-16383-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH 1
4X7-16324-00-00
Superseded by 4X7-16324-10-00
|
$10.49 | ||
|
Unavailable |
|||
|
#12
RING SET
4X7-16385-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, FRICTION
22U-16321-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, CLUTCH 2
4X7-16325-00-00
Superseded by 4X7-16325-10-00
|
$15.49 | ||
|
Unavailable |
|||
|
#15
PLATE, PRESSURE 1
22U-16351-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-23738-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, WITH WASHER
90159-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, PUSH
1W1-16358-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 1
5Y1-16356-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#20
O-RING
93210-09525-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, LOCK
90215-22244-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90170-20323-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93315-21813-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-18278-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PUSH LEVER ASSY
22U-16380-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, TORSION
90508-16577-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-18262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
90149-08067-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
ROD, PUSH 2
22U-16357-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BALL
93515-32029-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
