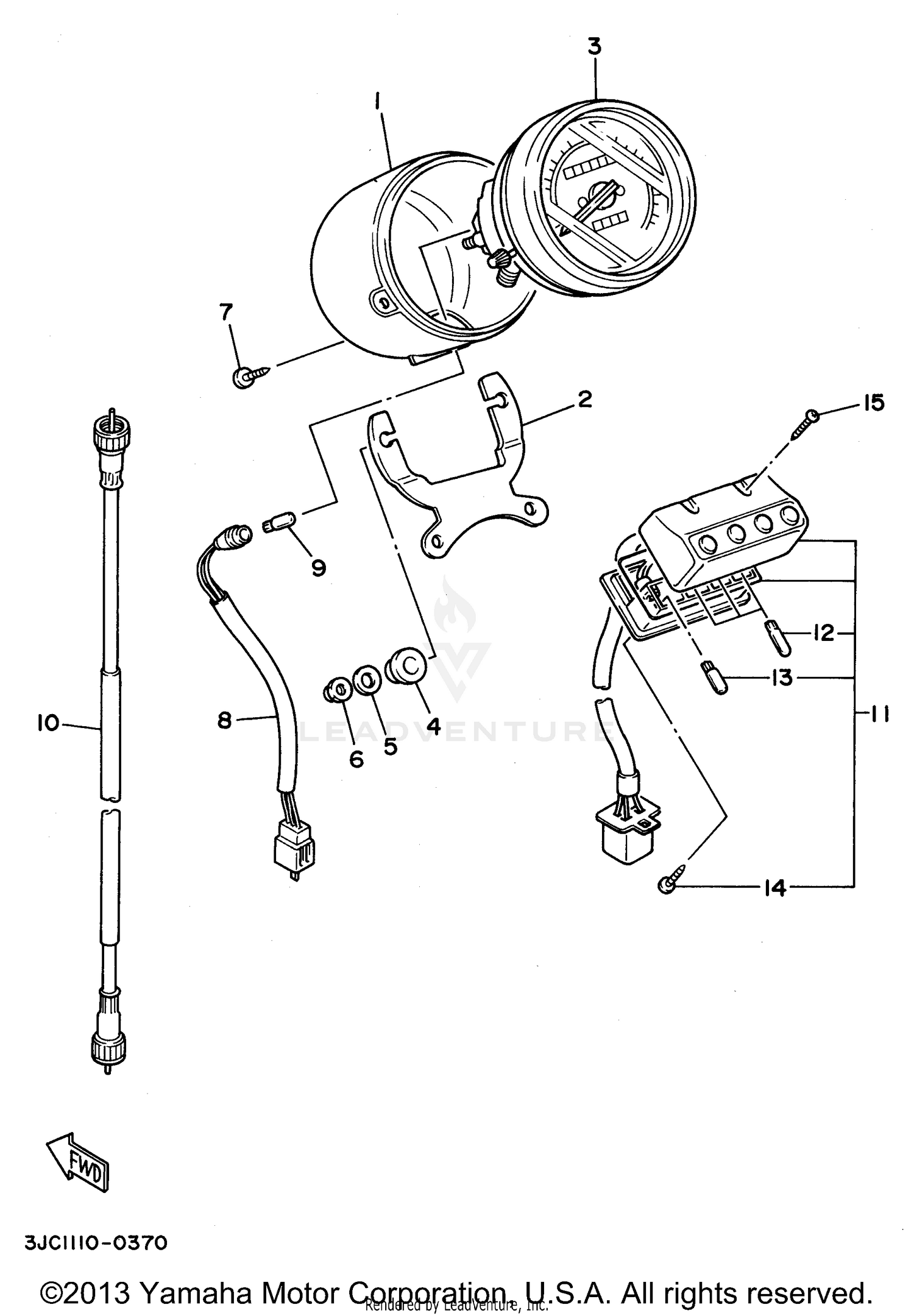

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SPEEDOMETER
1GR-83507-00-00
Superseded by 1FK-83507-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, METER
2GV-83519-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#3
METER ASSEMBLY
4KU-8351A-00-00
|
$433.99 | ||
|
Unavailable |
|||
|
#
METER ASSEMBLY
3BT-8351A-00-00
|
$350.99 | ||
|
Unavailable |
|||
|
#4
DAMPER
1FG-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95307-05600-00
Superseded by 95317-05600-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, TAPPING
90164-04009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SOCKET CORD ASSEMBLY
2GV-83509-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#9
BULB (12V-3W)
42X-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPDMTR, CABLE
3Y0-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PILOT LIGHT ASSY
3BT-83530-10-00
Superseded by 5AJ-83530-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB (12V-3W)
42X-83517-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
BULB (12V-1.7W)
2GV-83517-00-00
Superseded by 3FV-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
90164-03010-00
Superseded by 90167-03058-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98517-04025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
