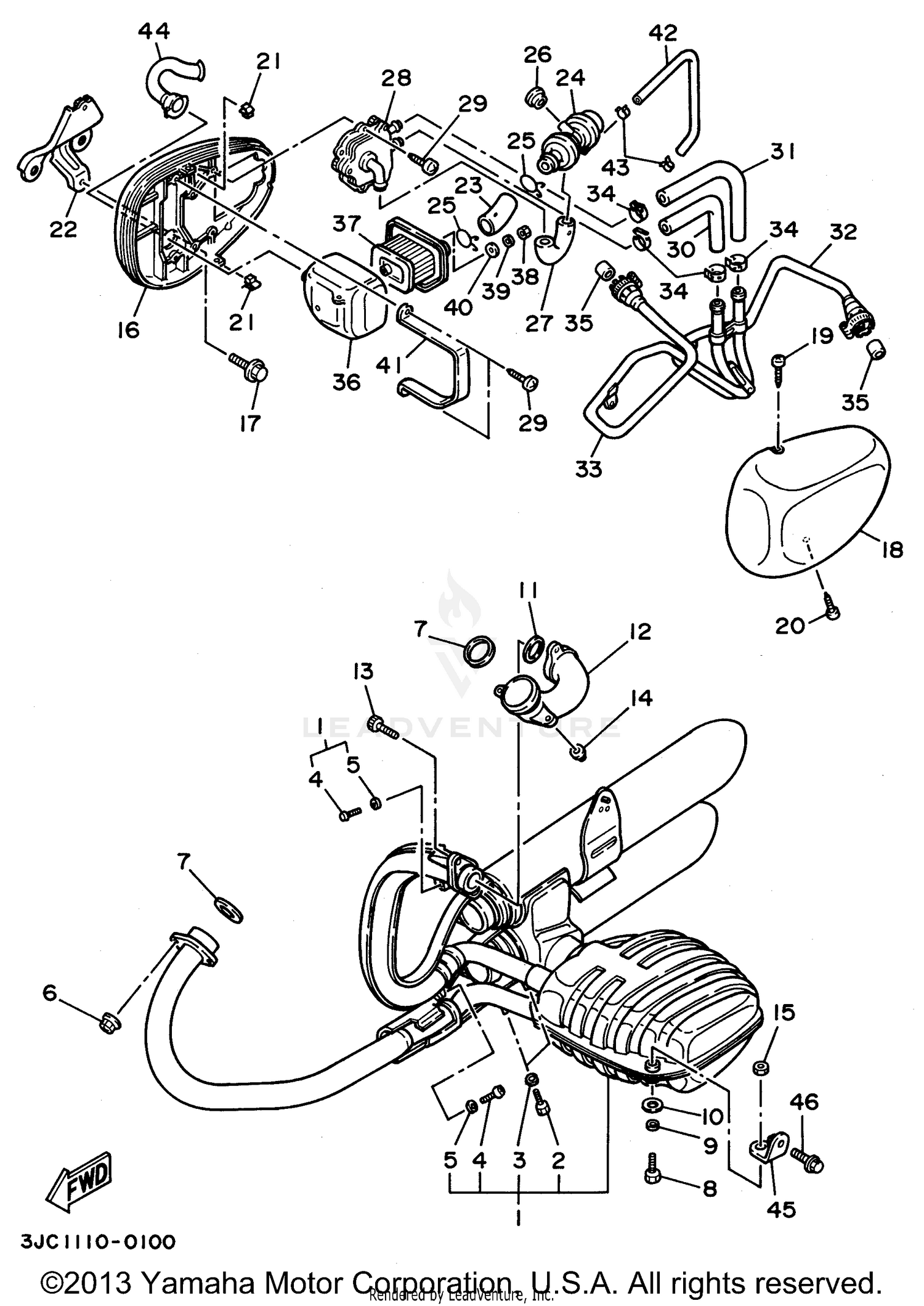

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MUFFLER COMP. 1
3JC-14703-00-00
|
$1,587.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90101-06576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97027-08030-00
Superseded by 97017-08030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
92907-08700-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, EXHAUST PIPE
4BR-14613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, EXHAUST 2
2GV-14625-00-00
|
$185.99 | ||
|
Unavailable |
|||
|
#13
BOLT
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-08097-00
Superseded by 90185-08146-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, AIR CLEANER
2GV-14663-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER 1
2GV-14603-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING
97704-40012-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING
90163-04003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SPRING
90183-04027-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, CLEANER CASE FITTING
2GV-14484-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#23
HOSE, BEND 2
3BM-14882-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#24
AIR CUT VALVE ASSY
1RV-14840-00-00
|
$260.99 | ||
|
Unavailable |
|||
|
#25
CLIP
90467-26111-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG
90338-10132-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE, BEND 3
3BM-14883-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
REED VALVE ASSY
3BM-14808-00-00
|
$352.99 | ||
|
Unavailable |
|||
|
#29
SCREW, TAPPING
97707-60514-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE, BEND 5
3BM-14884-00-00
Superseded by 42H-14885-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#31
HOSE, BEND 5
3BM-14885-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#32
PIPE 1
3BM-14871-03-00
|
$89.99 | ||
|
Unavailable |
|||
|
#33
PIPE 2
3BM-14872-01-00
|
$286.99 | ||
|
Unavailable |
|||
|
#34
CLIP
90468-08104-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, MUFFLER
42H-14714-10-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CASE, AIR CLEANER
42H-14857-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CAP, CASE
42H-14858-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#38
NUT
95307-05600-00
Superseded by 95317-05600-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90202-05057-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#41
BRACKET
3BM-14867-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE, VACUUM SENSING 1
3BM-13542-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#43
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE, BEND 1
1TA-14881-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET 2
2GV-2138L-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
