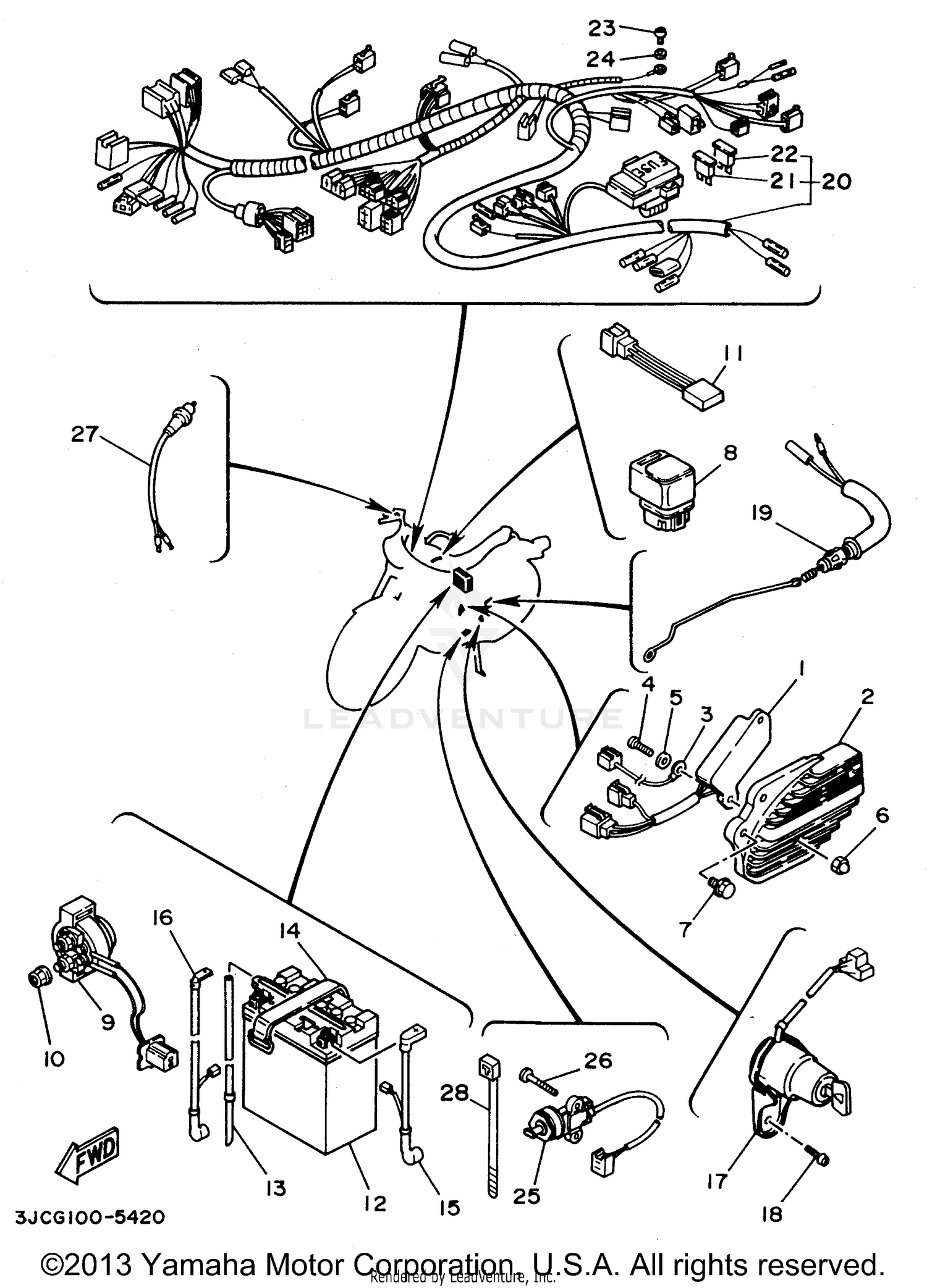

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER & REGULATOR ASSEMBLY
42X-81960-A1-00
|
$323.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, RECTIFIER FITTING
3JB-81975-01-00
|
$157.99 | ||
|
Unavailable |
|||
|
#3
WIRE, EARTH LEAD 2
3LR-83364-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#4
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
RELAY ASSY
25G-81950-01-00
Superseded by 25G-81950-02-00
|
$45.99 | ||
|
Unavailable |
|||
|
#9
STARTER RELAY ASSY (MS5D-611)
3AY-81940-00-00
Superseded by 4KD-81940-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIODE ASSEMBLY
4H7-81980-M0-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
YB12ALA2 YUASA BATT
BTG-GM12A-Z3-A2
Superseded by YB1-2ALA2-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
90445-08248-00
Superseded by 90445-08719-00
|
$10.99 | ||
|
Unavailable |
|||
|
#14
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, PLUS LEAD
2GV-82115-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE, MINUS LEAD
2GV-82116-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
MAIN SWITCH ASSEMBLY
3JC-82510-00-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92017-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOP SWITCH ASSEMBLY
2GV-82530-10-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE HARNESS ASSEMBLY
3JC-82590-25-00
|
$320.99 | ||
|
Unavailable |
|||
|
#21
FUSE (15A-BL)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE (30A-BL)
1AE-82151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#25
SWITCH, SIDE STAND
3LD-82566-70-00
Superseded by 3LD-82566-71-00
|
$47.99 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FRONT STOP SWITCH ASSY
1A0-83980-30-00
Superseded by 26H-83980-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
