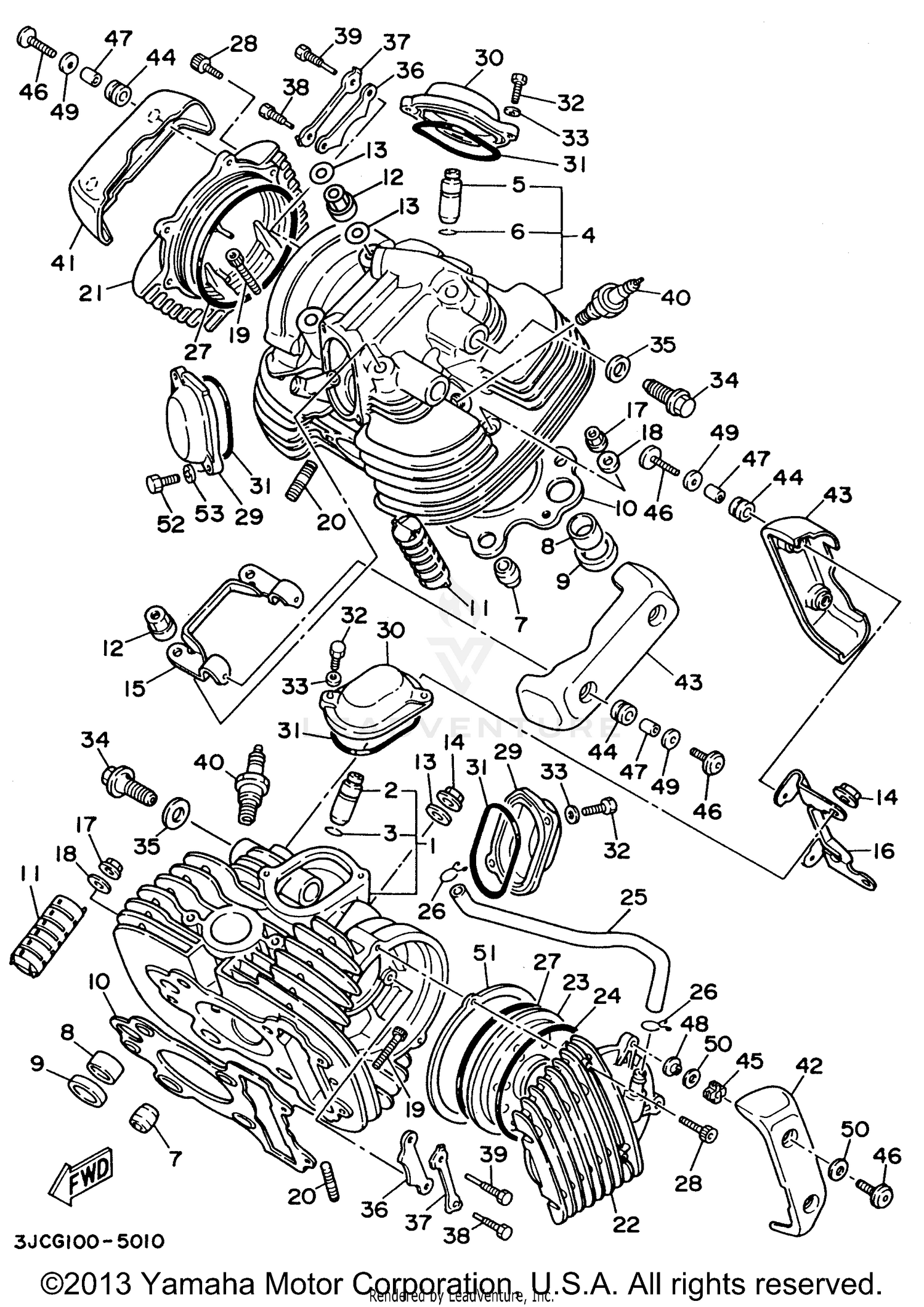

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
3BM-11101-01-00
Superseded by 3BM-11101-02-00
|
$782.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE 1
4H7-11133-10-00
Superseded by 4H7-11133-11-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
CYLINDER HEAD ASSEMBLY
3BM-11101-11-00
Superseded by 3BM-11101-12-00
|
$782.99 | ||
|
Unavailable |
|||
|
#5
GUIDE, VALVE 1
4H7-11133-10-00
Superseded by 4H7-11133-11-00
|
$48.99 | ||
|
Unavailable |
|||
|
#6
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
99530-17016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-226G7-00
|
$6.49 | ||
|
Unavailable |
|||
|
#9
GASKET
90430-24184-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CYLINDER HEAD 1
2GV-11181-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ABSORBER 3
2GV-11127-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#12
NUT
90179-10395-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-10279-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, CYLINDER HEAD COVER 2
2GV-11142-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#16
BRACKET, CYLINDER HEAD COVER
2GV-11152-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#17
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-094G1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, STUD
95617-08630-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, CYLINDER HEAD SIDE 1
2GV-11185-00-00
|
$147.99 | ||
|
Unavailable |
|||
|
#22
COVER, CYLINDER HEAD SIDE 4
2GV-1111H-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#23
PLATE, BREATHER
22U-11165-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-89568-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, BREATHER 1
2GV-11166-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#26
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93211-00612-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, CYLINDER HEAD SIDE 2
22U-11186-00-00
Superseded by 22U-11186-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, CYLINDER HEAD SIDE 3
22U-11187-00-00
Superseded by 22U-11187-01-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-62446-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
97027-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, UNION
90401-16073-00
Superseded by 90401-16166-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET
90430-17168-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLATE
22U-1111F-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, LOCK
90215-08229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
90109-08782-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90109-08781-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BPR7ES NGK - 4/PACK
NGK-BP7ES-00-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
|
#41
COVER, CYLINDER HEAD SIDE 2
2NT-11186-00-00
Superseded by 2NT-11186-01-00
|
$78.99 | ||
|
Unavailable |
|||
|
#42
COVER ASSEMBLY 1
2NT-1110M-00-00
Superseded by 2NT-1110M-01-00
|
$220.99 | ||
|
Unavailable |
|||
|
#43
COVER, CYLINDER HEAD SIDE 3
2NT-11187-00-00
Superseded by 2NT-11187-01-00
|
$81.99 | ||
|
Unavailable |
|||
|
#44
GROMMET
90480-18411-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
GROMMET
90480-19471-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, HEXAGON SOCKET HEAD
90110-06198-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
COLLAR
90387-06518-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
COLLAR
90387-072W2-00
|
$6.99 | ||
|
Unavailable |
|||
|
#49
WASHER, PLATE
90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
GASKET
3BT-11195-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#51
GASKET, CYLINDER HEA
3BT-11196-00-00
Superseded by 3BT-11196-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, HEXAGON DEEP R
97024-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
