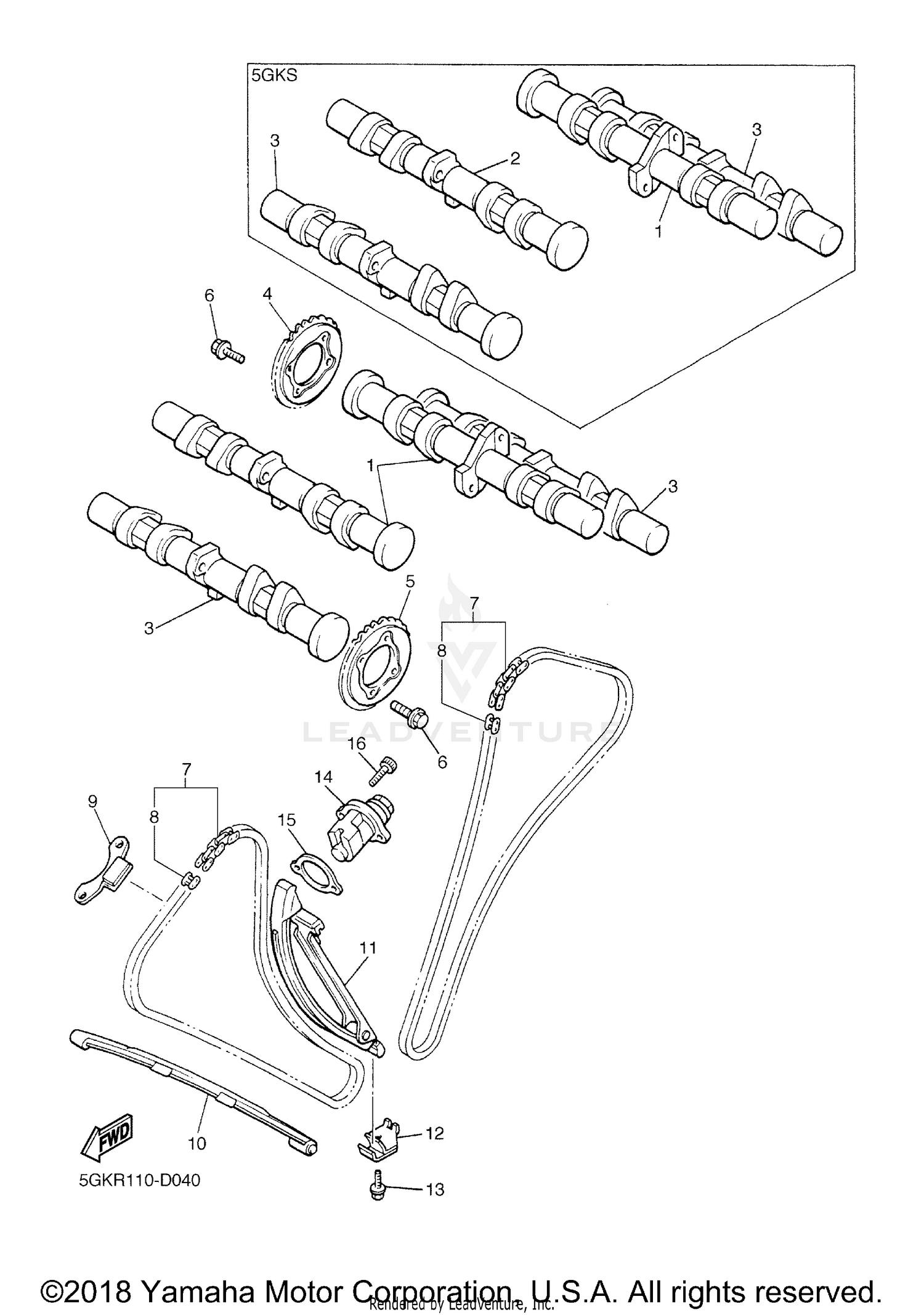

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
1FK-12171-00-00
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAMSHAFT 1
2WF-12171-01-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT 1
3JP-12171-01-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAMSHAFT 2
1FK-12181-00-00
|
$274.99 | ||
|
Unavailable |
|||
|
#3
CAMSHAFT 2
2WF-12181-00-00
|
$252.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, CAM CHAIN
26H-12176-02-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET, CAM CHAIN
26H-12177-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-07004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN (D.I.D 219FTS118LL)
9Y58A-81117-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, JOINT
4SV-11498-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 2
26H-12241-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, CHAIN 1
26H-12251-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, CHAIN 2
26H-12252-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, GUIDE STOPPER 1
26H-12233-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95817-08025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TENSIONER ASSY, CAM CHAIN
26H-12210-03-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, TENSIONER CASE
3JP-12213-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
