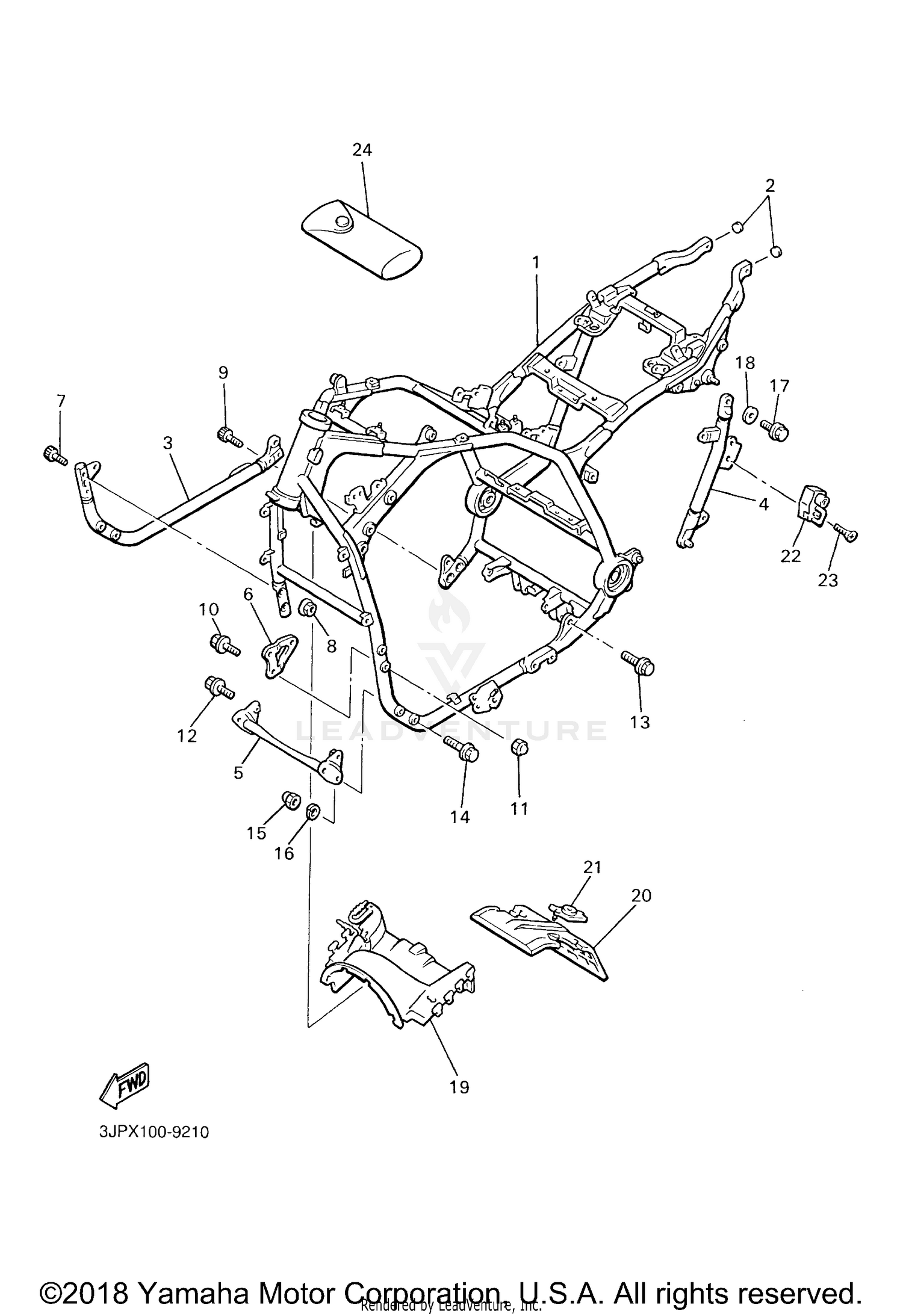

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
2EN-21110-02-P0
|
$1,225.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG
1AA-2143A-00-00
Superseded by 3YJ-24481-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DOWN TUBE COMP.
1FK-21140-00-P0
|
$223.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BACK STAY SUB COMP. 1
3UF-21105-00-P0
|
$254.99 | ||
|
Unavailable |
|||
|
#5
CROSS BAR COMPLETE
1FK-2141V-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, ENGINE 2
1FK-21315-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#7
BOLT
90110-10161-00
Superseded by 91317-10030-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90110-10092-00
Superseded by 91317-10020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-081A0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CROWN
90176-10033-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10376-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WASHER BASED
90105-12252-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95827-08060-00
Superseded by 95817-08060-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CROWN
90176-08040-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92907-08100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08066-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08326-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER
1FK-2117F-01-00
|
$98.99 | ||
|
Unavailable |
|||
|
#20
COVER 2
1FK-2117M-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER 3
1FK-2117N-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HELMET HANGER ASSY
4R8-21308-00-00
Superseded by 26H-21308-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
90149-06154-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
TOOL KIT
1FK-28100-01-00
Superseded by 26H-W2810-00-00
|
$255.99 | ||
|
Unavailable |
|||
