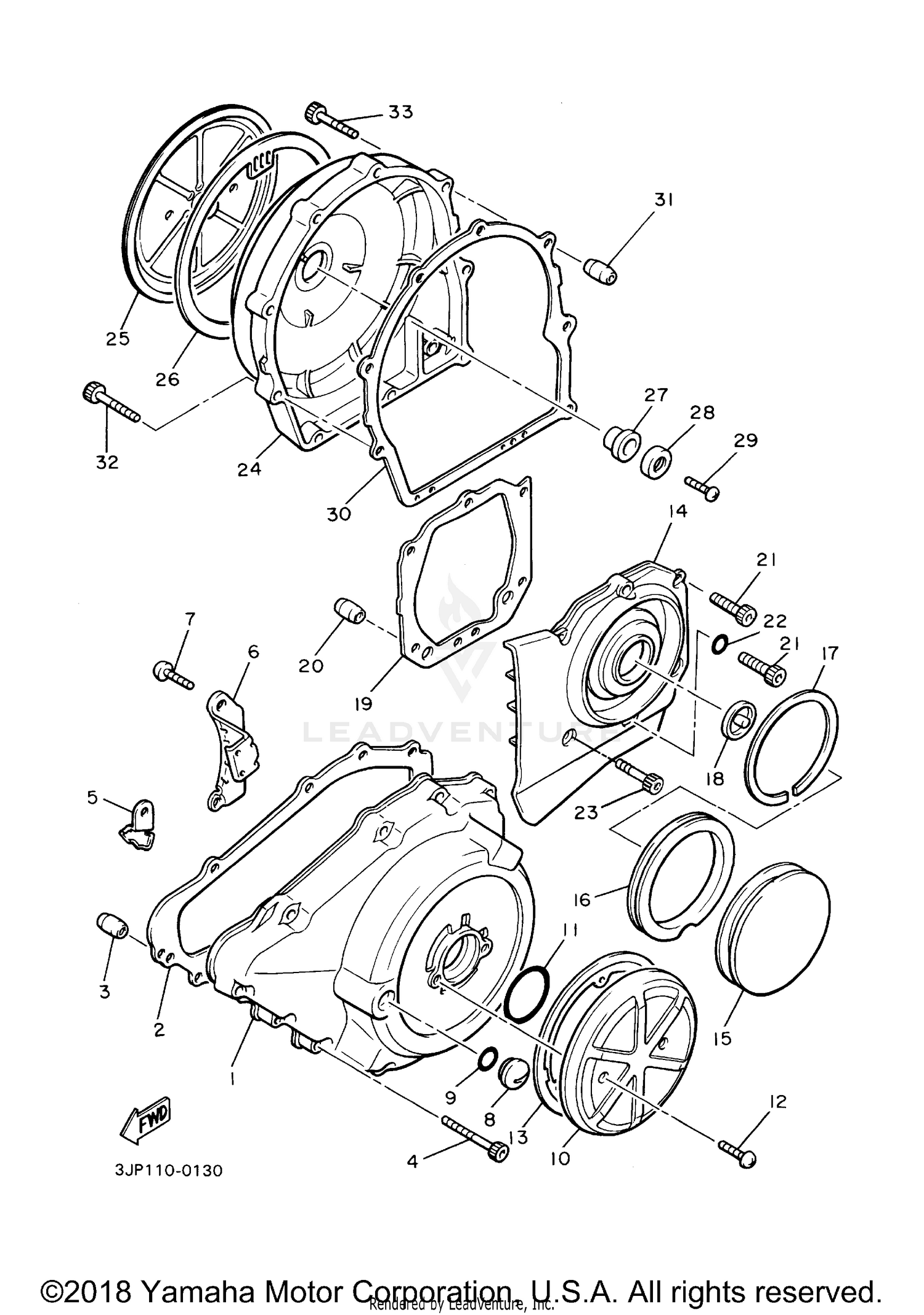

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
1FK-15411-10-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
3JP-15451-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-10114-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06238-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90462-06192-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90465-08220-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW,PAN HEAD
98507-06016-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-14068-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-14369-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, CAP 2
1FK-15427-10-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-45150-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, COUNTERSUNK
90151-06061-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET 1
1FK-15455-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CRANKCASE 2
1FK-15421-10-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, CHAIN CASE 2
1FK-15428-10-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER 4
26H-15337-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90468-98132-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, ENGINE MOUNT 5
26H-15338-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, CRANKCASE COVER 2
3JP-15461-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
99530-10114-00
|
$2.50 | ||
|
Unavailable |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-06240-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-06242-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, CRANKCASE 3
1FK-15431-10-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, CHAIN CASE
1FK-15418-10-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RING, RUBBER
26H-15449-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GROMMET
4H7-15486-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
90209-06096-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW
98507-06008-00
Superseded by 98517-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET, CRANKCASE COVER 3
3JP-15462-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, DOWEL
99530-10114-00
|
$2.50 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
90110-06240-00
|
$9.99 | ||
|
Unavailable |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
90110-06237-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
