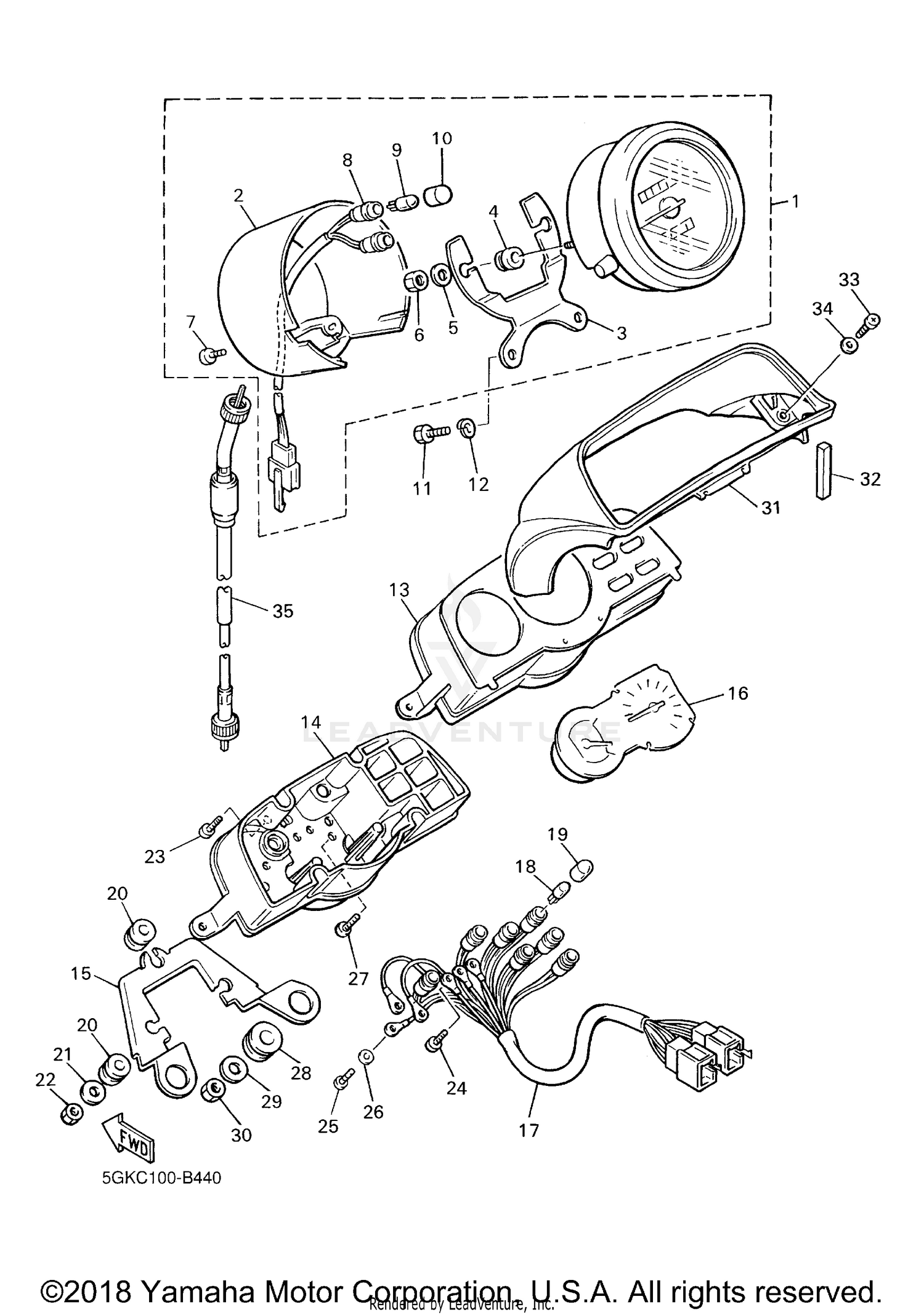

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY (MPH)
1FK-83570-B0-00
|
$373.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SPEEDOMETER
1GR-83507-01-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, METER
1FK-83519-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER
12R-83523-00-00
Superseded by 1FG-83523-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-05725-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95307-05600-00
Superseded by 95317-05600-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, TAPPING
90164-04009-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SOCKET CORD ASSY
1FK-83509-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (14V-3.4W)
42X-83517-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE
1FK-83535-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, UPPER
3JP-8353G-10-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE, UNDER
1FK-8353H-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, TACHOMETER
1FK-83545-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TACHOMETER ASSY
3JP-83540-10-00
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SOCKET CORD ASSEMBLY
3UF-83520-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULB (14V-3.4W)
42X-83517-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#19
TUBE
1FK-83535-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#20
DAMPER
1FK-83523-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
1E6-83524-00-00
Superseded by 90201-05032-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95301-05600-00
Superseded by 95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING
97701-40012-00
Superseded by 97704-40012-00
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, WITH WASHER
90159-03102-00
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98502-03010-00
Superseded by 98580-03010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92902-03100-00
Superseded by 92990-03100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING
90167-04057-00
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
90480-14229-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, METER
3JP-83559-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#32
DAMPER 2
1FK-83526-00-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
98507-04016-00
Superseded by 98517-04016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER
92907-04600-00
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPEEDOMETER CABLE ASSY
1FK-83550-20-00
Superseded by 1FK-83550-21-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
