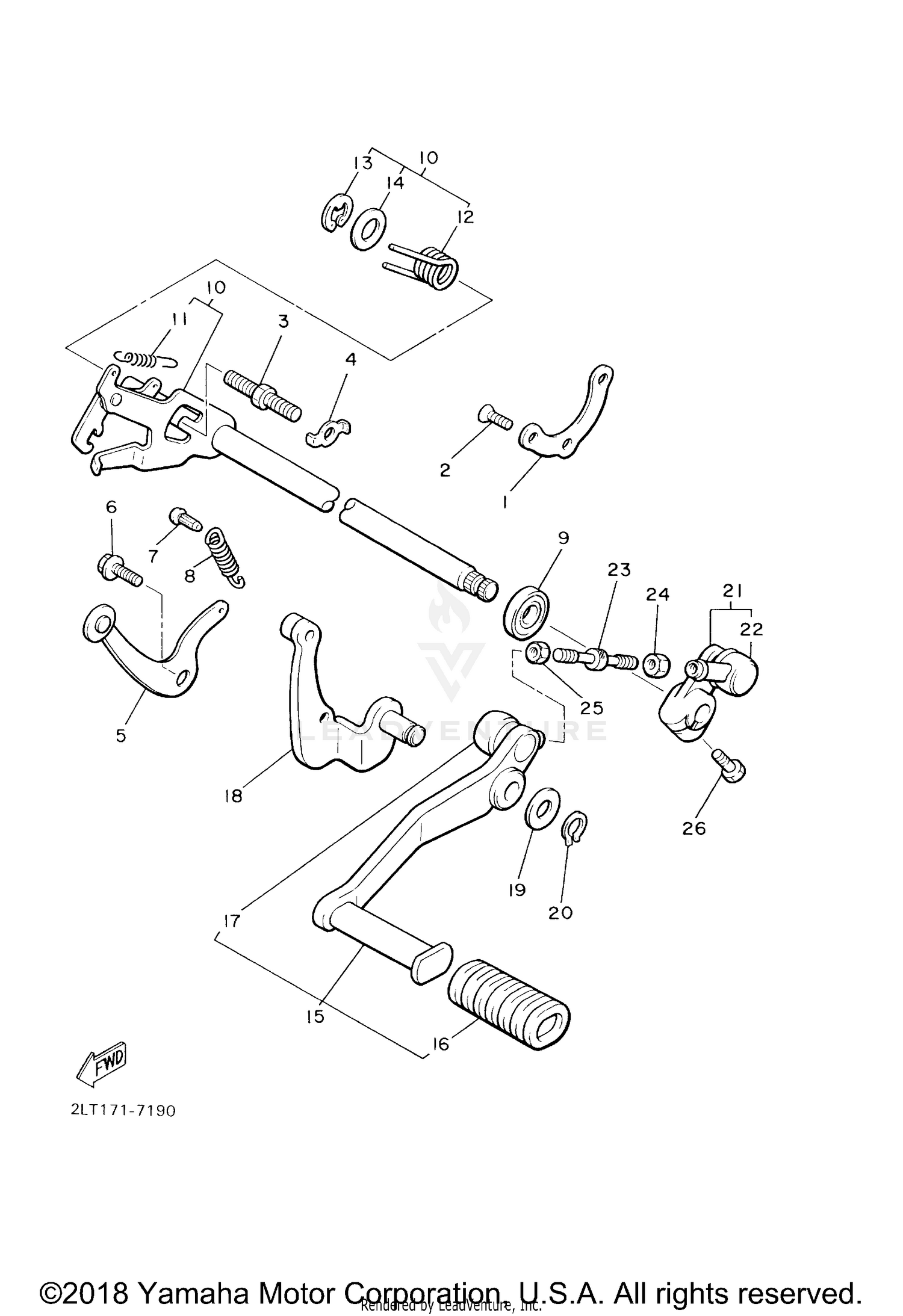

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STOPPER, SHIFT BAR
26H-18536-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#2
SCREW, FLAT HEAD
90151-06041-00
Superseded by 98707-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90109-08441-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK
90215-08115-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
STOPPER LEVER ASSY
26H-18140-02-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90109-063F8-00
Superseded by 90109-06036-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK, SPRING
132-16346-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-13312-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (SD 12-22-5 HS)
93102-12106-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFT SHAFT ASSY
1FK-18101-01-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TENSION
90506-08227-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TORSION
90508-32588-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
99001-10600-00
Superseded by 99006-10600-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-127E1-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIFT PEDAL ASSY
1FK-18110-00-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, SHIFT PEDAL
22N-18113-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET
1FK-18128-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-12688-00
Superseded by 90201-124E4-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
LEVER, SHIFT 4
1FK-18152-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#23
ROD, SHIFT
42X-18115-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95304-06700-00
Superseded by 95380-06700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
97027-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
