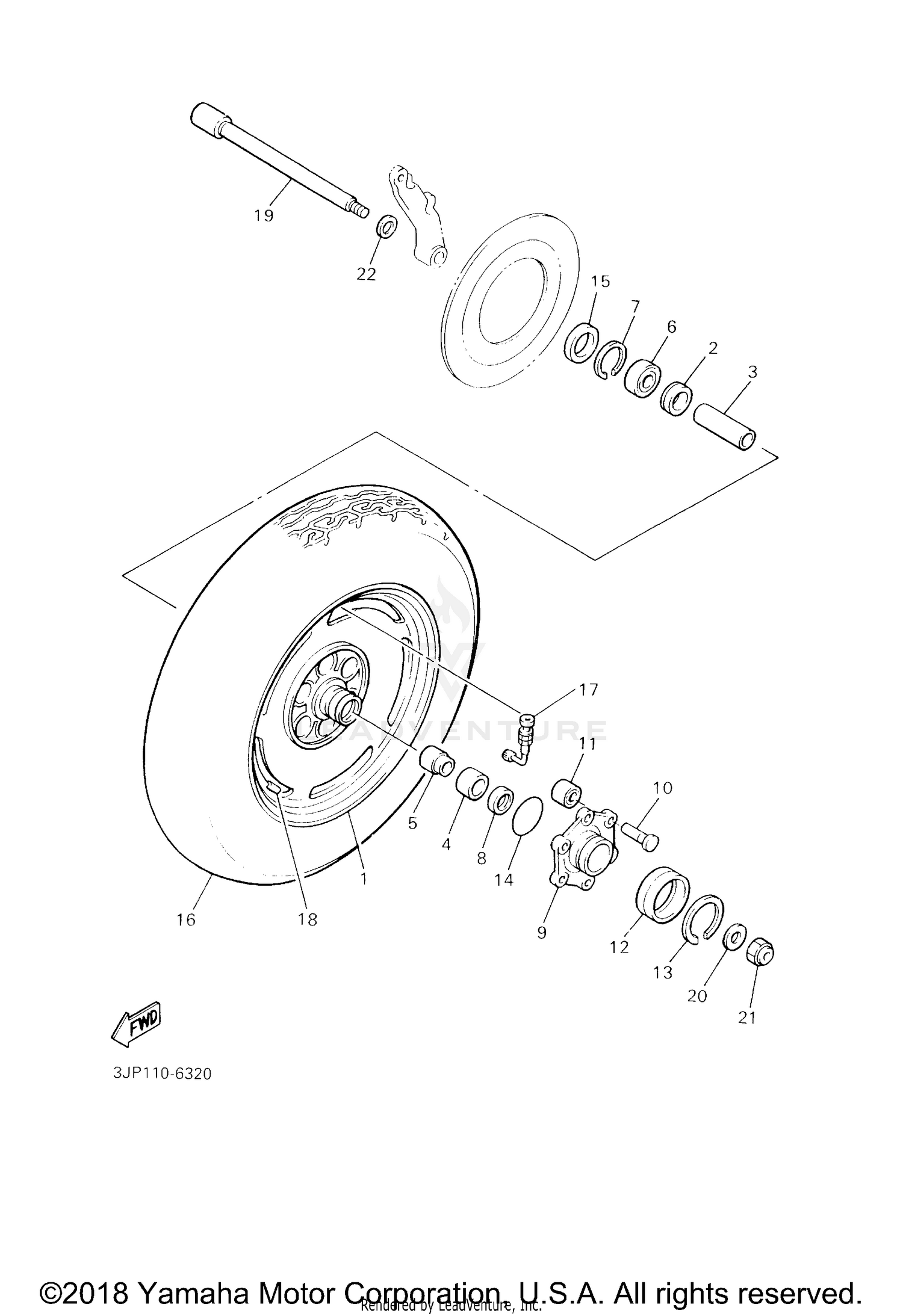

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
5GK-25338-00-33
|
$828.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLANGE, SPACER
2H7-25315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
90560-20295-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93317-32677-00
Superseded by 93311-32698-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-203H7-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-30437-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-52500-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93102-25064-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLUTCH, HUB
26H-25366-01-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
90249-12167-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
1FK-25364-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, HUB DUST
1J7-25319-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
93440-45022-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-68347-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93102-40367-00
Superseded by 93106-40027-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIRE (150/90-15 M/C 74V G526)
94115-1505G-00
|
$318.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIRE (150/90-15 M/C 74V K525)
94115-1505E-00
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
VALVE, RIM (PVR59A)
93900-00025-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALANCER, WHEEL (30G)
5MT-25398-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALANCER, WHEEL (10G)
5MT-25398-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALANCER, WHEEL (20G)
5MT-25398-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXLE, WHEEL
4NK-25381-10-00
Superseded by 4NK-25381-19-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-181U5-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SELF-LOCKING
90185-18167-00
Superseded by 90185-18009-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
92903-20600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
