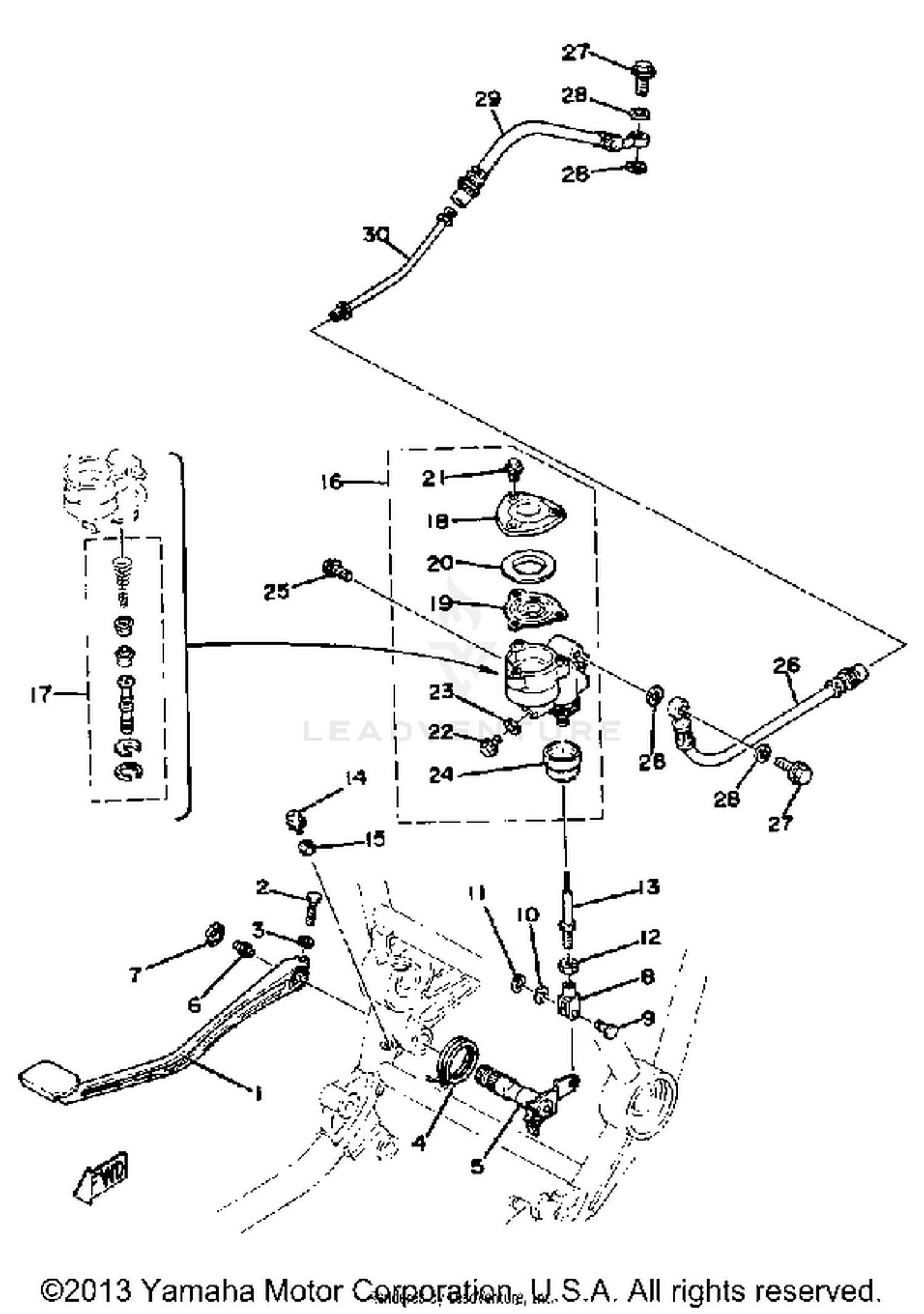

Brake Pedal-rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
2H7-27211-00-93
|
$33.20 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-06468-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-45363-00
|
$5.63 | ||
|
Unavailable |
|||
|
#5
SHAFT, BRAKE PEDAL
2H7-27212-00-00
|
$16.74 | ||
|
Unavailable |
|||
|
#6
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-07226-00
|
$4.15 | ||
|
Unavailable |
|||
|
#8
JOINT
1J3-27222-01-00
Superseded by 47X-27222-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, SPEC''L SHAPE
90249-08124-00
|
$3.07 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, BRAKE
1J7-27231-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#14
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
MSTR CYLINDER ASSEMBLY
2H7-25850-51-00
|
$154.99 | ||
|
Unavailable |
|||
|
#17
CYLINDER KIT, MASTER
2H7-W0042-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#18
CAP, RESERVOIR
1J3-25852-52-00
|
$20.99 | ||
|
Unavailable |
|||
|
#19
DIAPHRAGM RESERVOR
1J3-25854-51-00
|
$20.99 | ||
|
Unavailable |
|||
|
#20
BUSH, DIAPHRAGM
1J3-25855-51-00
|
$6.68 | ||
|
Unavailable |
|||
|
#21
SCREW, HEXAGON
90153-05014-00
|
$2.17 | ||
|
Unavailable |
|||
|
#22
SCREW, hexagon
90153-10015-00
|
$7.99 | ||
|
Unavailable |
|||
|
#23
WASHER, plate
90201-10610-00
|
$4.65 | ||
|
Unavailable |
|||
|
#24
BOOT, MASTER CYLINDER
1J3-25862-50-00
|
$7.94 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
90105-08109-00
Superseded by 95814-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, BRAKE
2H7-25874-01-00
|
$24.95 | ||
|
Unavailable |
|||
|
#27
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, BRAKE
2H7-25874-50-00
|
$25.49 | ||
|
Unavailable |
|||
|
#30
PIPE, BRAKE
2H7-25871-00-00
|
$11.64 | ||
|
Unavailable |
|||
