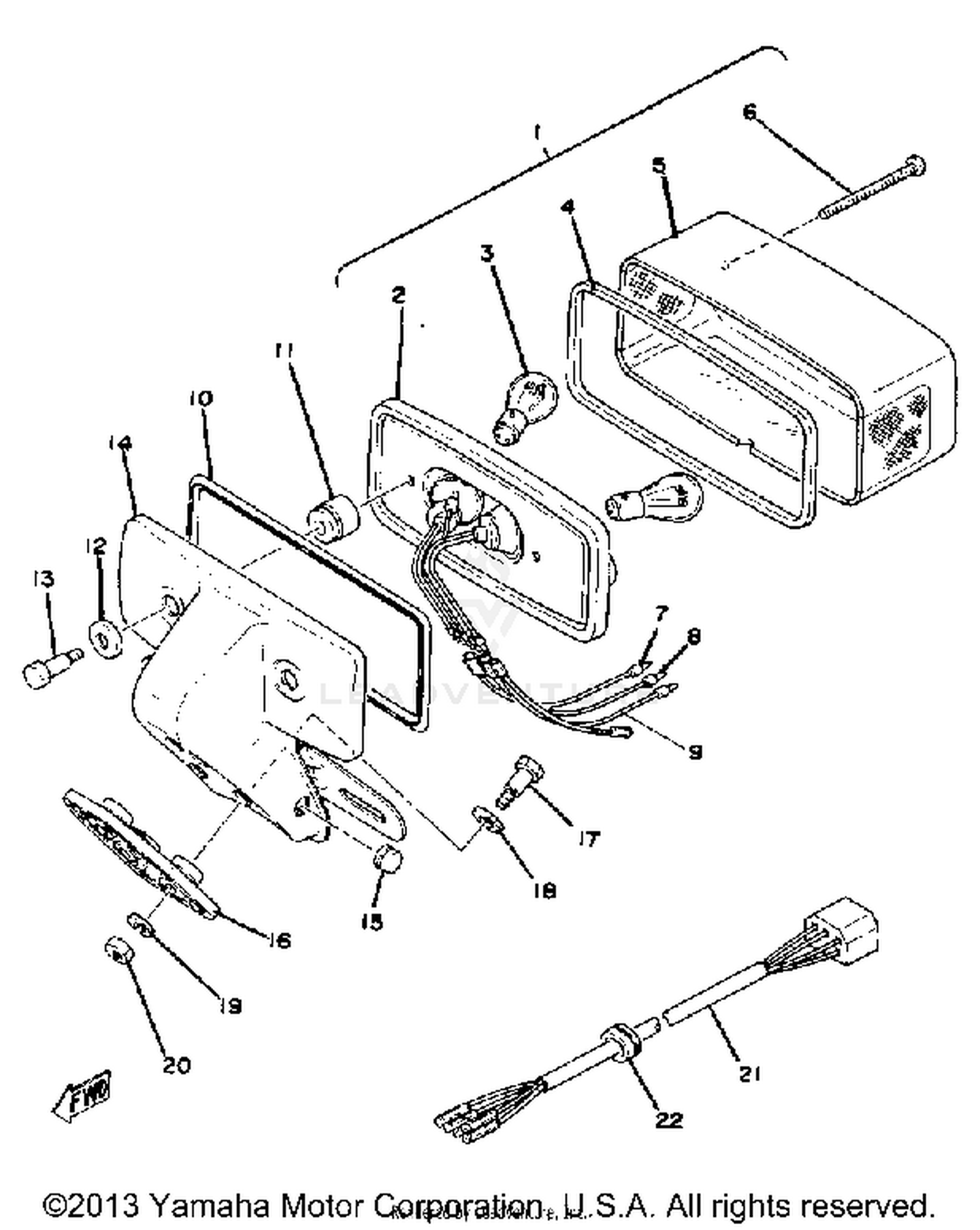

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
2A2-84710-60-00
|
$71.99 | ||
|
Unavailable |
|||
|
#2
BASE, TAILLIGHT
1A0-84711-60-00
|
$41.99 | ||
|
Unavailable |
|||
|
#3
BULB (12V-21/5W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, TAIL LENS
1A0-84723-60-00
|
$12.49 | ||
|
Unavailable |
|||
|
#5
LENS, TAILLIGHT
1A0-84721-60-00
|
$27.60 | ||
|
Unavailable |
|||
|
#6
SCREW, LENS FITTING
98580-04055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CORD, TAILLIGHT
2H7-84717-10-00
|
$3.36 | ||
|
Unavailable |
|||
|
#8
CORD, TAILLIGHT
2H7-84717-20-00
|
$3.36 | ||
|
Unavailable |
|||
|
#9
CORD, TAILLIGHT
2H7-84717-30-00
|
$3.36 | ||
|
Unavailable |
|||
|
#10
SEAT, BASE
2H7-84742-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#11
DAMPER
2H7-84753-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
WASHER, SPECIAL
2H7-84754-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FITTING
2H7-84752-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#14
BRACKET, LICENSE
2H7-84751-00-93
|
$60.37 | ||
|
Unavailable |
|||
|
#15
GROMMET
2H7-84759-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#16
DAMPER, TAIL
2H7-84736-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#17
BOLT
90109-06021-00
Superseded by 90109-06005-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
CORD, TAILLIGHT
2H7-84717-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#22
GROMMET
90480-15061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
