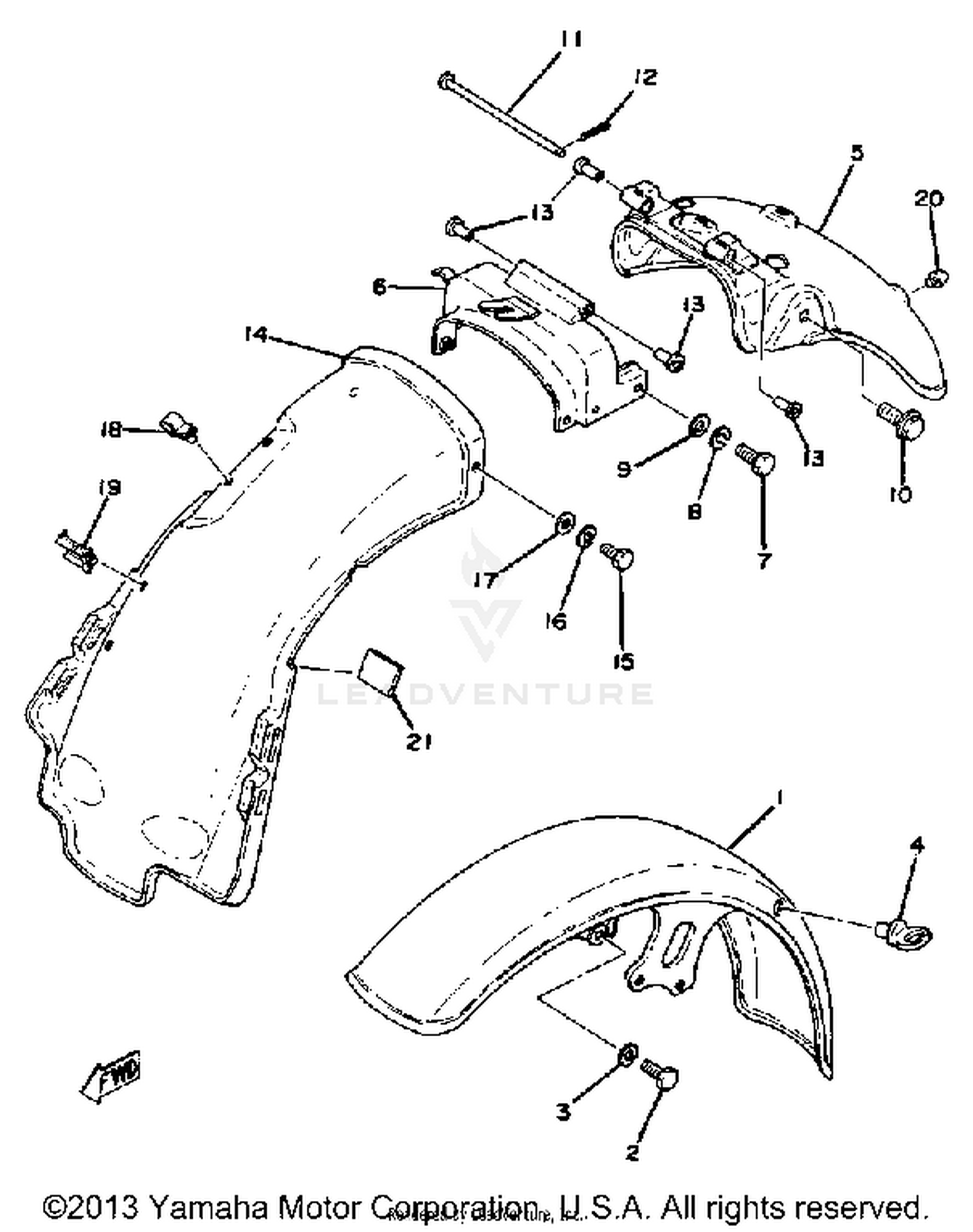

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
2H7-21510-01-93
|
$162.99 | ||
|
Unavailable |
|||
|
#2
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
1A0-21518-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, REAR
2H9-21610-00-93
|
$174.99 | ||
|
Unavailable |
|||
|
#6
STAY, FENDER 1
2H7-21613-00-91
|
$16.99 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WASHER BASED
90105-10112-00
|
$4.15 | ||
|
Unavailable |
|||
|
#11
PIN, CLEVIS
91701-06152-00
|
$2.10 | ||
|
Unavailable |
|||
|
#12
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, MUD
2H7-21629-00-00
|
$22.32 | ||
|
Unavailable |
|||
|
#15
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER 2
2MG-21639-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER
2H7-21628-00-00
Superseded by 22F-2139X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
