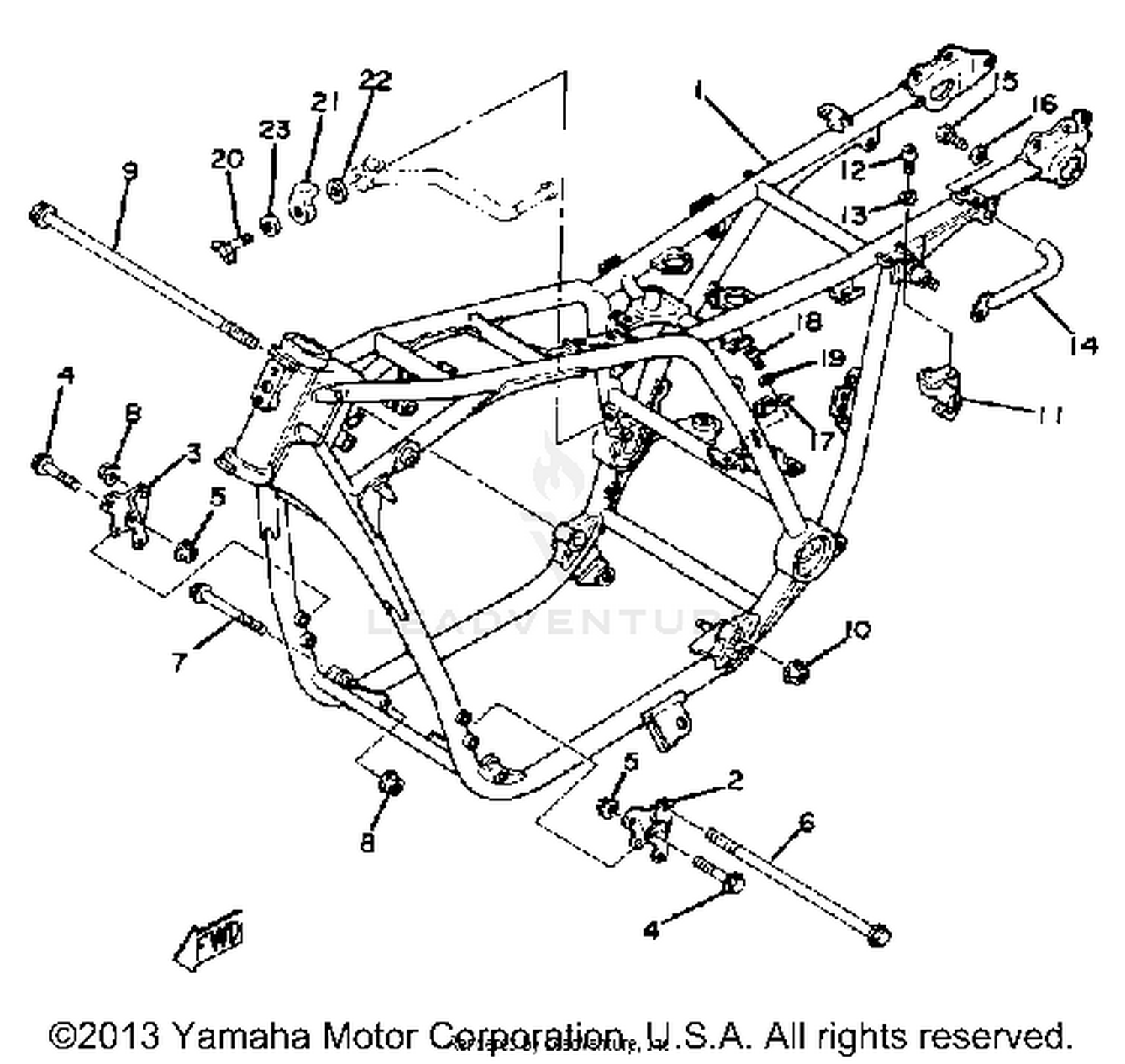

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2H7-21110-01-33
|
$571.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 2
2H7-21315-00-00
|
$10.70 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 3
2H7-21316-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#4
BOLT, WASHER BASED
90105-08107-00
|
$4.40 | ||
|
Unavailable |
|||
|
#5
NUT
90179-08246-00
Superseded by 90179-08491-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WASHER BASED
90105-10056-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-10105-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-12106-00
Superseded by 90105-12047-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-12421-00
Superseded by 90179-12657-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HELMET HANGER ASSEMBLY
2H7-21308-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
HANDLE, STANDING
2H7-21165-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#15
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOOK
2H7-2139V-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#20
BOLT, WING
90122-06007-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
COVER
2H7-2139W-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#22
DAMPER
2H7-2139X-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
